QNAP Rail Kit C01/B01/B02/A02-90/A03-57/E02/E03/S01

Simplify NAS Installation with QNAP Rail Kits

QNAP Rail Kits provide an effortless way to install and service your QNAP rackmount NAS. Engineered to ANSI EIA RS-310-D standards, these kits guarantee a secure, precise fit into industry-standard racks, enabling quick hardware upgrades and hassle-free maintenance.

Highlights

• Easy slide-in rails streamline installation and servicing

• Extensive compatibility from compact 4-bay to high-capacity 30-bay NAS models

• ANSI EIA RS-310-D compliant for standardized and secure mounting

• Accommodates both square-hole and round-hole rack configurations (varies by model)

Key Features

Rail Kit B02

• Mounting Post Depth: 443 to 815 mm

• Rack Holes: 9.5 mm square-hole only

• Applied Models: TL-R400S, TR-004U, TS-431U, TS-431XeU, TS-431XU, TS-431XU-RP, TS-432PXU, TS-432PXU-RP, TS-432XU, TS-432XU-RP, TS-433eU, TS-435XeU, TS-451DeU, TS-453BU, TS-453BU-RP, TS-453DU, TS-453DU-RP, TS-463U, TS-463U-RP, TS-463XU, TS-463XU-RP, TS-464eU, TS-464U, TS-464U-RP, TVS-471U, TVS-471U-RP, TS-h765eU, TS-831XU, TS-831XU-RP, TS-832PXU, TS-832PXU-RP, TS-832XU, TS-832XU-RP, TS-853BU, TS-853BU-RP, TS-853DU-RP, TS-853U, TS-853U-RP, TS-855eU, TS-855eU-RP, TS-863U, TS-863U-RP, TS-863XU, TS-863XU-RP, TS-864eU, TS-864eU-RP, TS-870U-RP, TS-873AeU, TS-873AeU-RP, TS-873AU, TS-873AU-RP, TS-873U, TS-873U-RP, TS-877XU, TS-877XU-RP, TS-883XU, TS-883XU-RP, TVS-871U-RP, TVS-872XU, TVS-872XU-RP, UX-800U-RP, TS-977XU, TS-977XU-RP, TS-983XU, TS-983XU-RP, TS-h977XU-RP, TS-h987XU-RP, TVS-972XU, TVS-972XU-RP, TS-h1090FU, TL-R1200C-RP, TL-R1200PES-RP, TL-R1200S-RP, TL-R1220Sep-RP, TS-1231XU, TS-1231XU-RP, TS-1232PXU-RP, TS-1232XU, TS-1232XU-RP, TS-1253BU, TS-1253BU-RP, TS-1253DU-RP, TS-1253U, TS-1253U-RP, TS-1263U, TS-1263U-RP, TS-1263XU, TS-1263XU-RP, TS-1264U-RP, TS-1273AU-RP, TS-1273U, TS-1273U-RP, TS-1283XU-RP, TS-h1277AXU-RP, TS-h1277XU-RP, TS-h1283XU-RP, TVS-1271U-RP, TVS-1272XU-RP, UX-1200U-RP, TL-R1600PES-RP, TL-R1620Sdc, TL-R1620Sep-RP, TS-1673AU-RP, TS-h1677AXU-RP, TS-1886XU-RP, TS-h1886XU-RP, TS-h1886XU-RP R2, TS-h1887XU-RP, TS-h2287XU-RP, QGD-1600, QGD-1600P, QGD-1602, QGD-1602P

Rail Kit A02-90

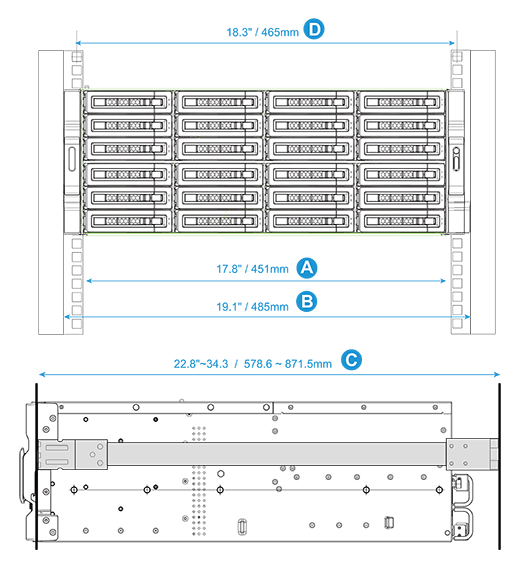

• Mounting Post Depth: 578.6 to 871.5 mm

• Rack Holes: 9.5 mm square-hole only

• Applied Models: TL-R2400PES-RP, TS-2477XU-RP, TS-2483XU-RP, TS-EC2480U R2, TS-h2477XU-RP, TS-h2483XU-RP, TVS-2472XU-RP, TVS-EC2480U-SAS-RP, TVS-EC2480U-SAS-RP R2, TS-h3087XU-RP

Rail Kit A03-57

• Mounting Post Depth: 579.1 to 873.5 mm

• Rack Holes: 9.5 mm square-hole only

• Applied Models: TS-879U-RP, TS-EC879U-RP, TS-EC880U R2, REXP-1200U-RP, REXP-1210U-RP, REXP-1220U-RP, SS-EC1279U-SAS-RP, TS-1279U-RP, TS-EC1279U-RP, TS-EC1279U-SAS-RP, TS-EC1280U R2, TVS-EC1280U-SAS-RP, TVS-EC1280U-SAS-RP R2, TVS-1582TU, TVS-EC1580MU-SAS-RP, TVS-EC1580MU-SAS-RP R2, REXP-1600U-RP, REXP-1610U-RP, REXP-1620U-RP, TDS-16489U, TDS-16489U R2, TS-1673U, TS-1673U-RP, TS-1677XU-RP, TS-1679U-RP, TS-1683XU-RP, TS-EC1679U-RP, TS-EC1679U-SAS-RP, TS-EC1680U R2, TS-h1677XU-RP, TS-h1683XU-RP, TVS-1672XU-RP, TVS-EC1680U-SAS-RP, TVS-EC1680U-SAS-RP R2, SS-EC1879U-SAS-RP, TES-1885U, SS-EC2479U-SAS-RP, TS-h2490FU, TES-3085U, TS-h3077AFU, TS-h3088XU-RP

Rail Kit E02

• Mounting Post Depth: 609.6 to 914.4 mm

• Rack Holes: 9.5 mm square-hole and round-hole

• Applied Models: EJ1600, EJ1600 v2, ES1640dc, ES1640dc v2, ES1686dc

Rail Kit E03

• Mounting Post Depth: 609.6 to 914.4 mm

• Rack Holes: 9.5 mm square-hole and round-hole

• Applied Models: ES2486dc, TDS-h2489FU

Rail Kit S01

• Mounting Post Depth: 126 to 415 mm

• Rack Holes: 9.5 mm square-hole or 7.1 mm round-hole

• Applied Models: TL-R400S, TR-004U, TS-431XeU, TS-433eU, TS-435XeU, TS-451DeU, TS-464eU, TS-h765eU, TS-853DU-RP, TS-855eU, TS-855eU-RP, TS-864eU, TS-864eU-RP, TS-873AeU, TS-873AeU-RP, TS-873AU, TS-873AU-RP, TL-R1200PES-RP, TL-R1220Sep-RP, TS-1253DU-RP, TS-1264U-RP, TS-1273AU-RP, TL-R1600PES-RP, TL-R1620Sdc, TL-R1620Sep-RP, TS-1673AU-RP

Summary

QNAP Rail Kits ensure streamlined, safe installation and efficient servicing of your rackmount NAS solutions. Engineered for durability and compatibility across a broad spectrum of QNAP NAS models, these rails deliver confidence in deployment, servicing speed, and operational convenience. Always verify your rack specifications against rail kit requirements before purchase.
