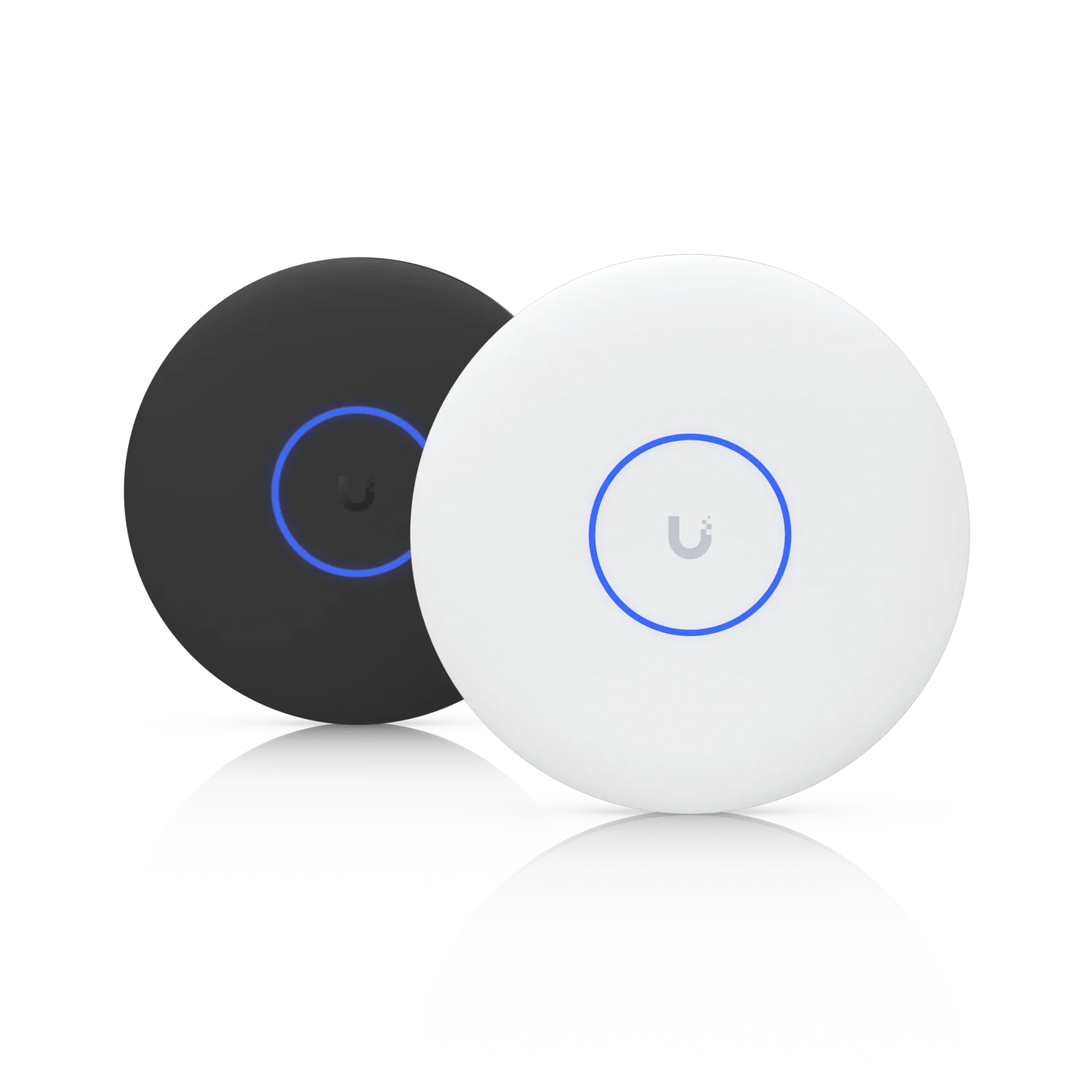

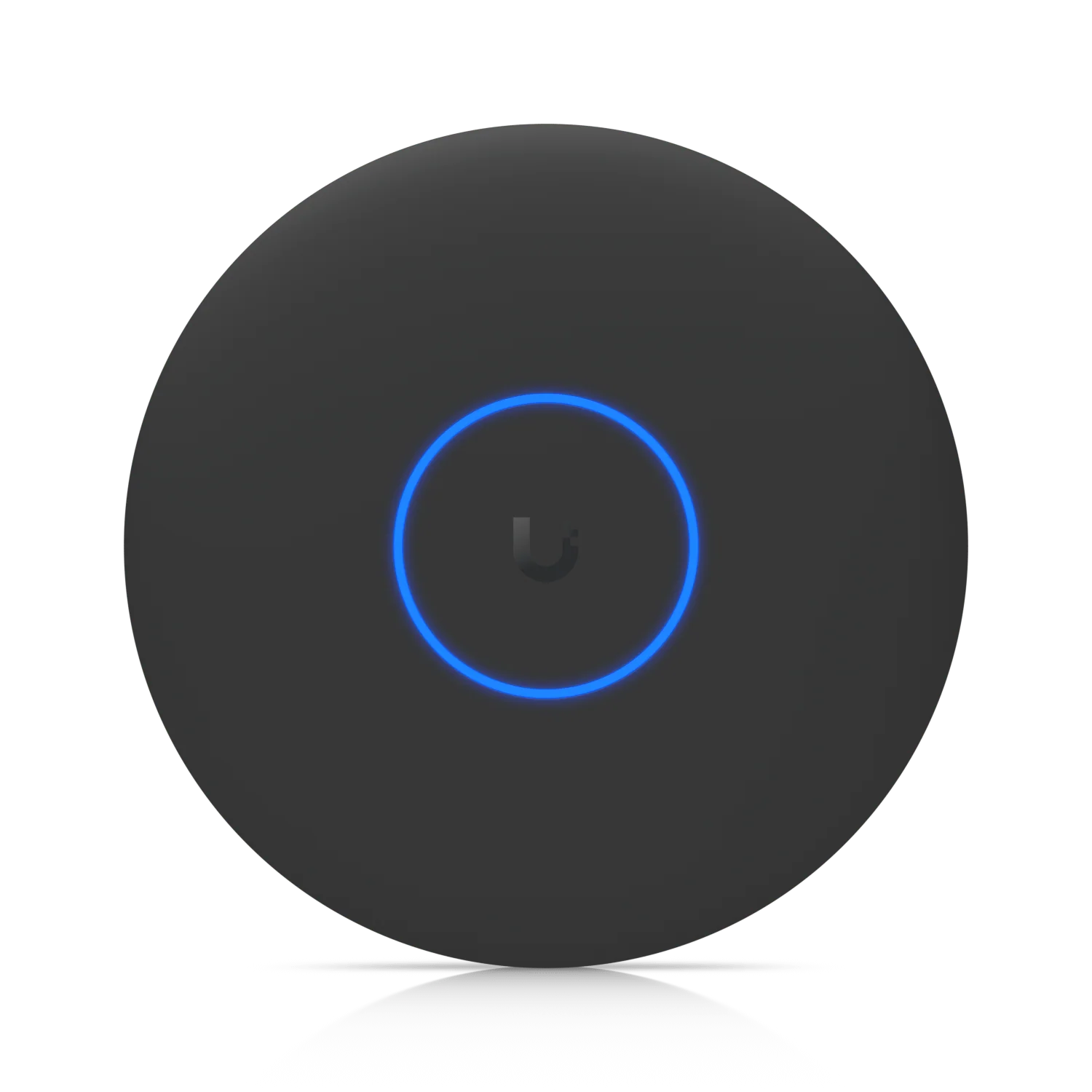

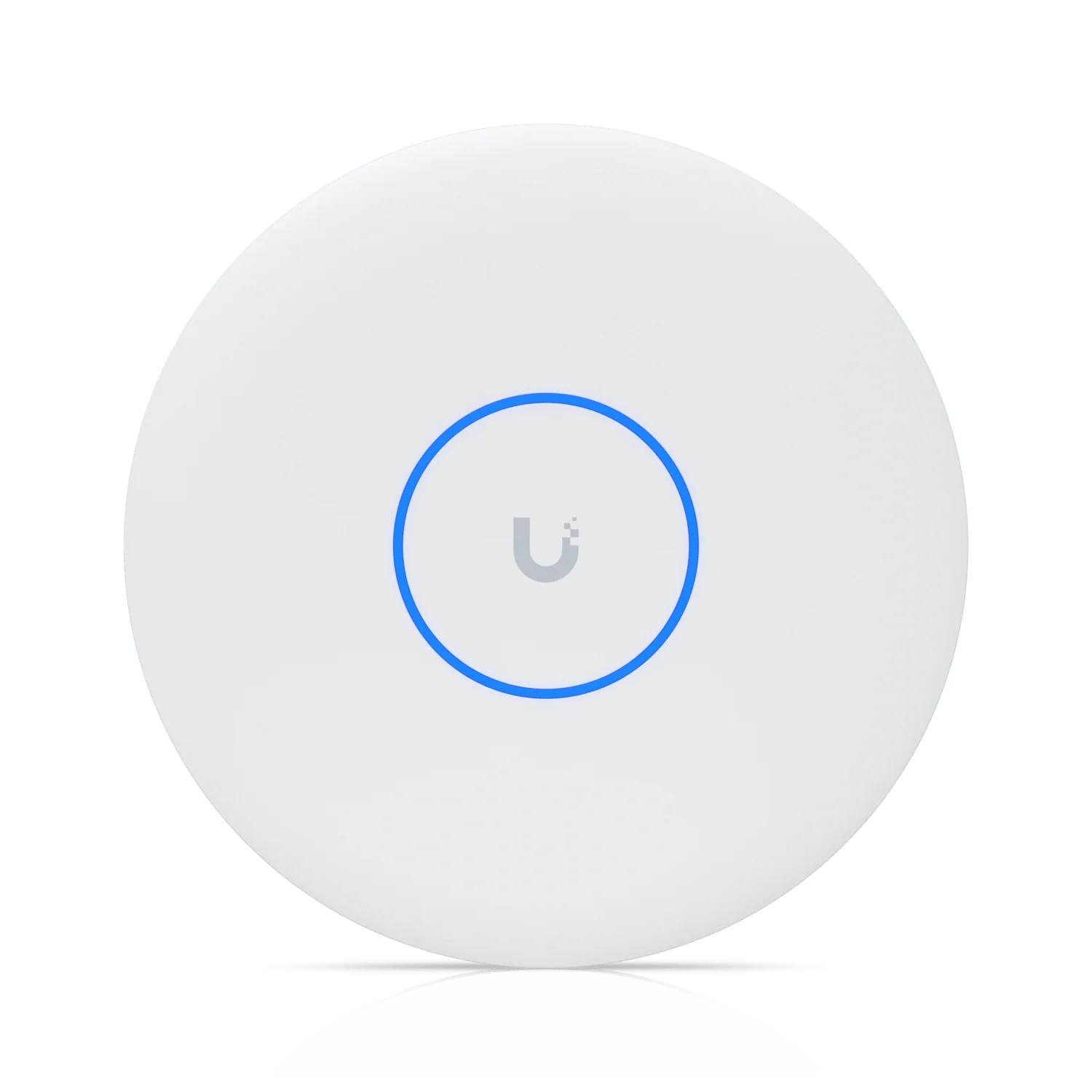

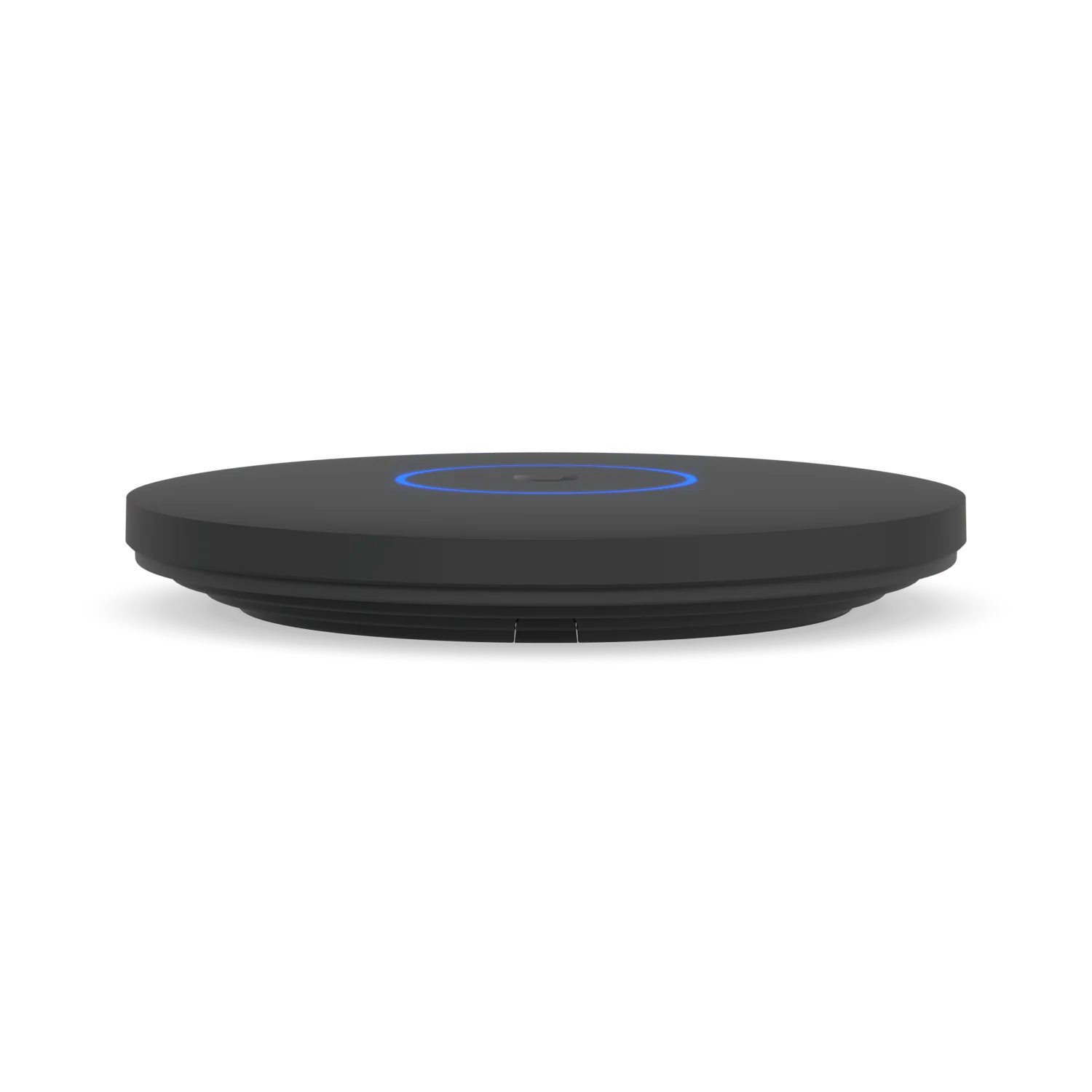

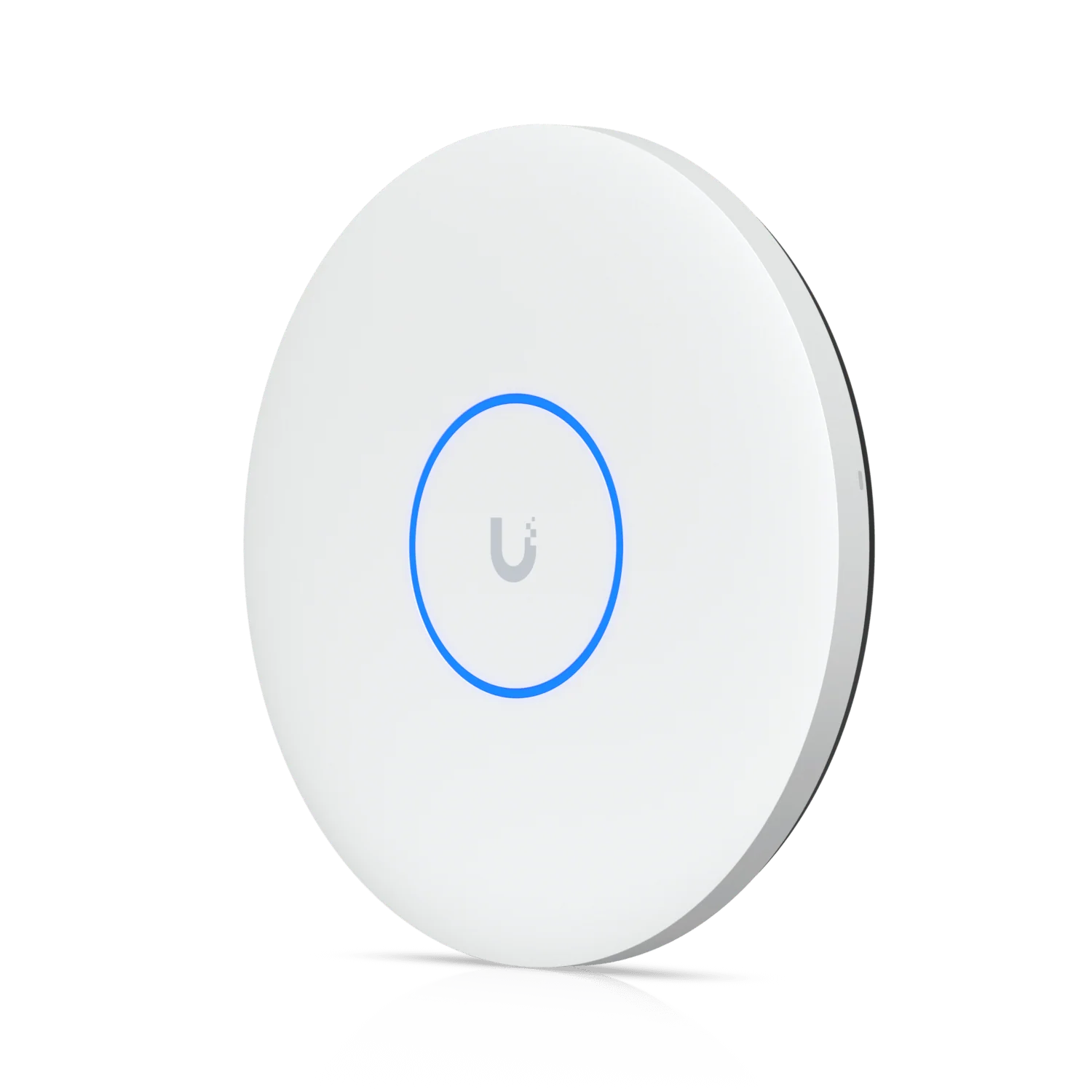

Ubiquiti U7 Pro XGS BE15100 10GbE Access Point
Next-Level WiFi 7 for High-Density Networks

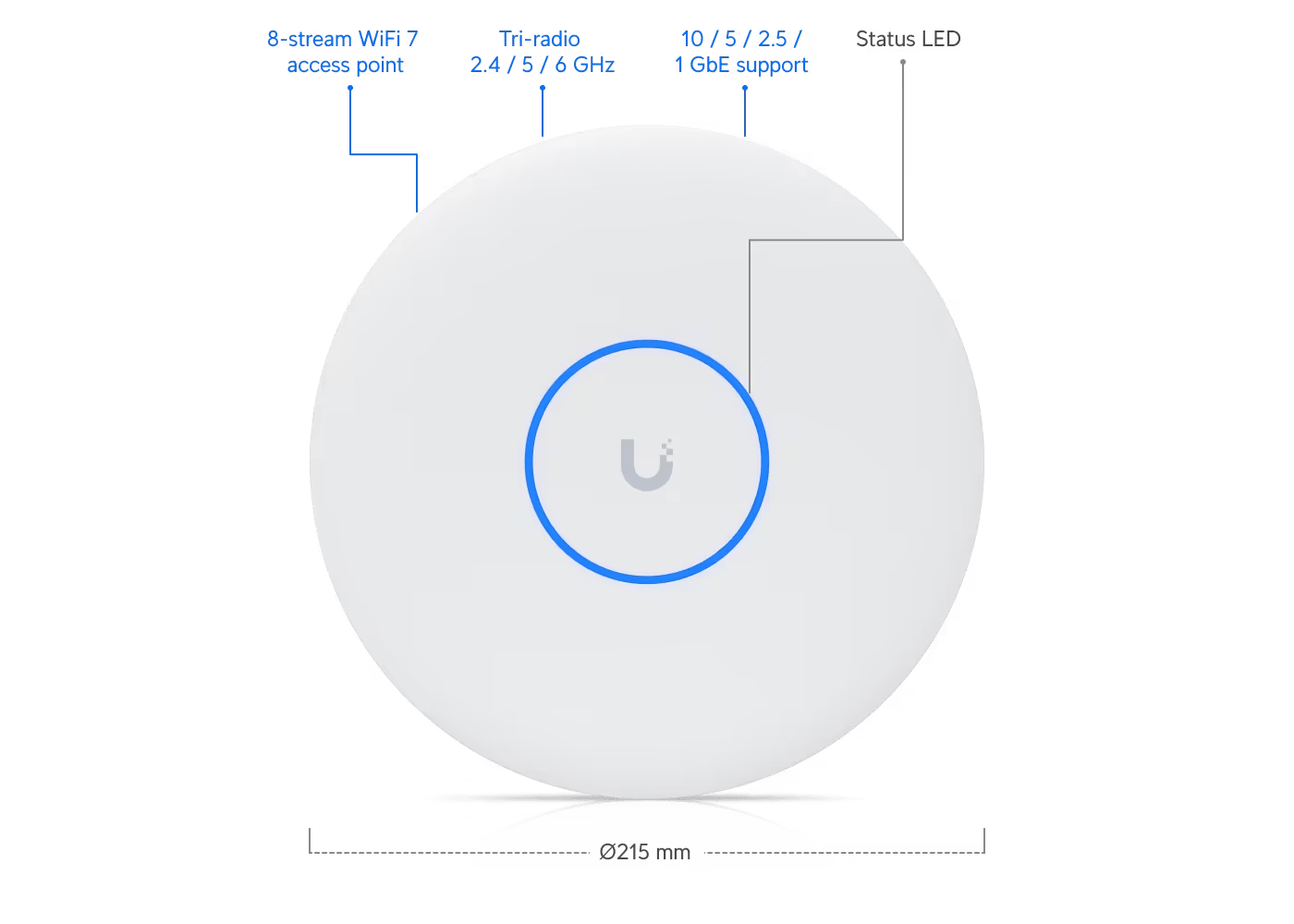

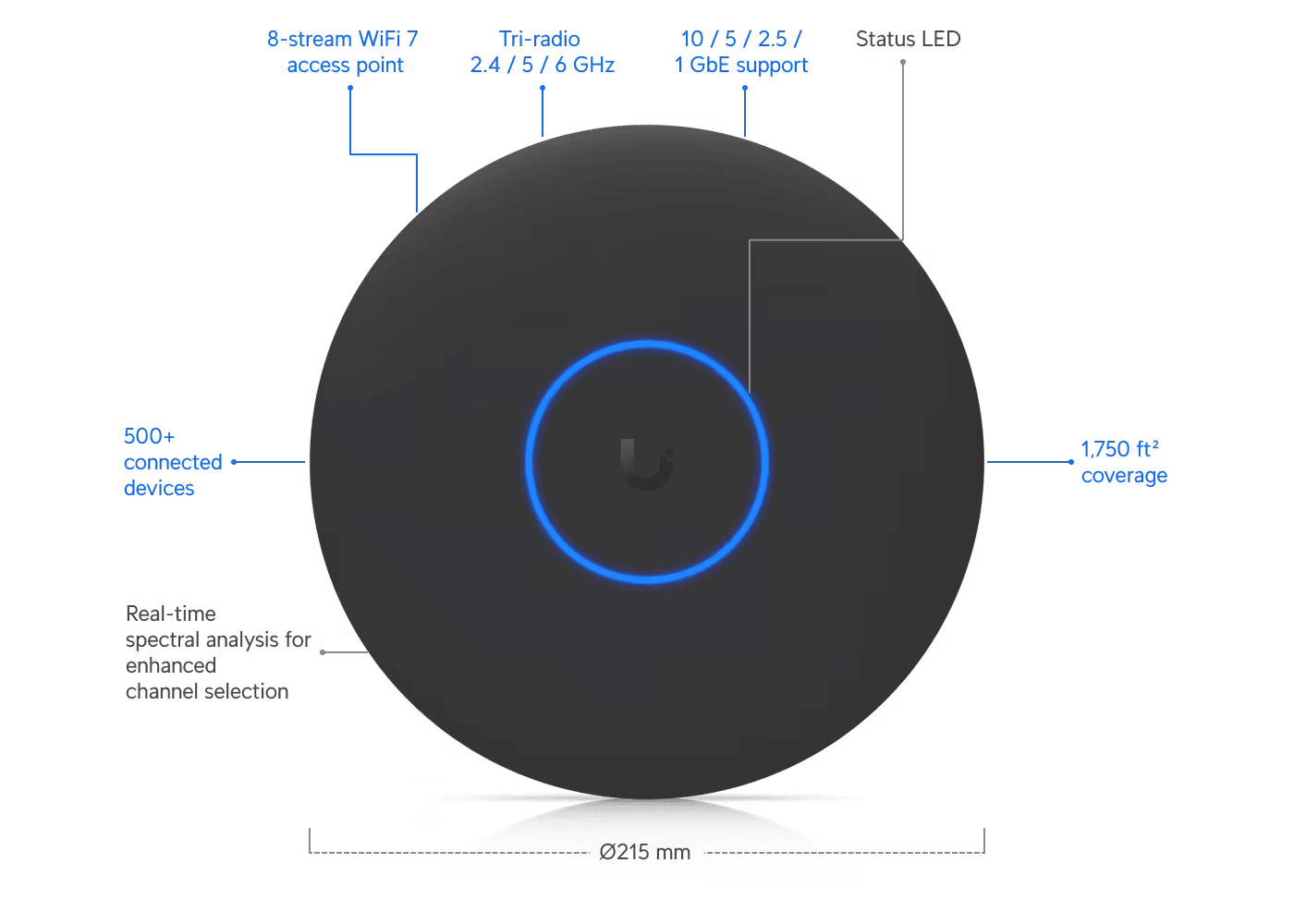

The Ubiquiti U7 Pro XGS BE15100 is a high-performance WiFi 7 access point, designed to deliver ultra-fast speeds, superior efficiency, and advanced network intelligence. With an 8-stream MU-MIMO design, a dedicated spectral scanning radio, and a 10GbE uplink, this AP ensures exceptional wireless connectivity for high-density environments such as offices, campuses, and event spaces.
Highlights
- WiFi 7 Tri-Band (6 GHz, 5 GHz, 2.4 GHz) for unmatched speed and efficiency
- 8-stream MU-MIMO and 500+ client capacity for high-performance networking
- Dedicated spectral scanning radio for real-time interference analysis
- Zero-Wait DFS for uninterrupted 6 GHz operation

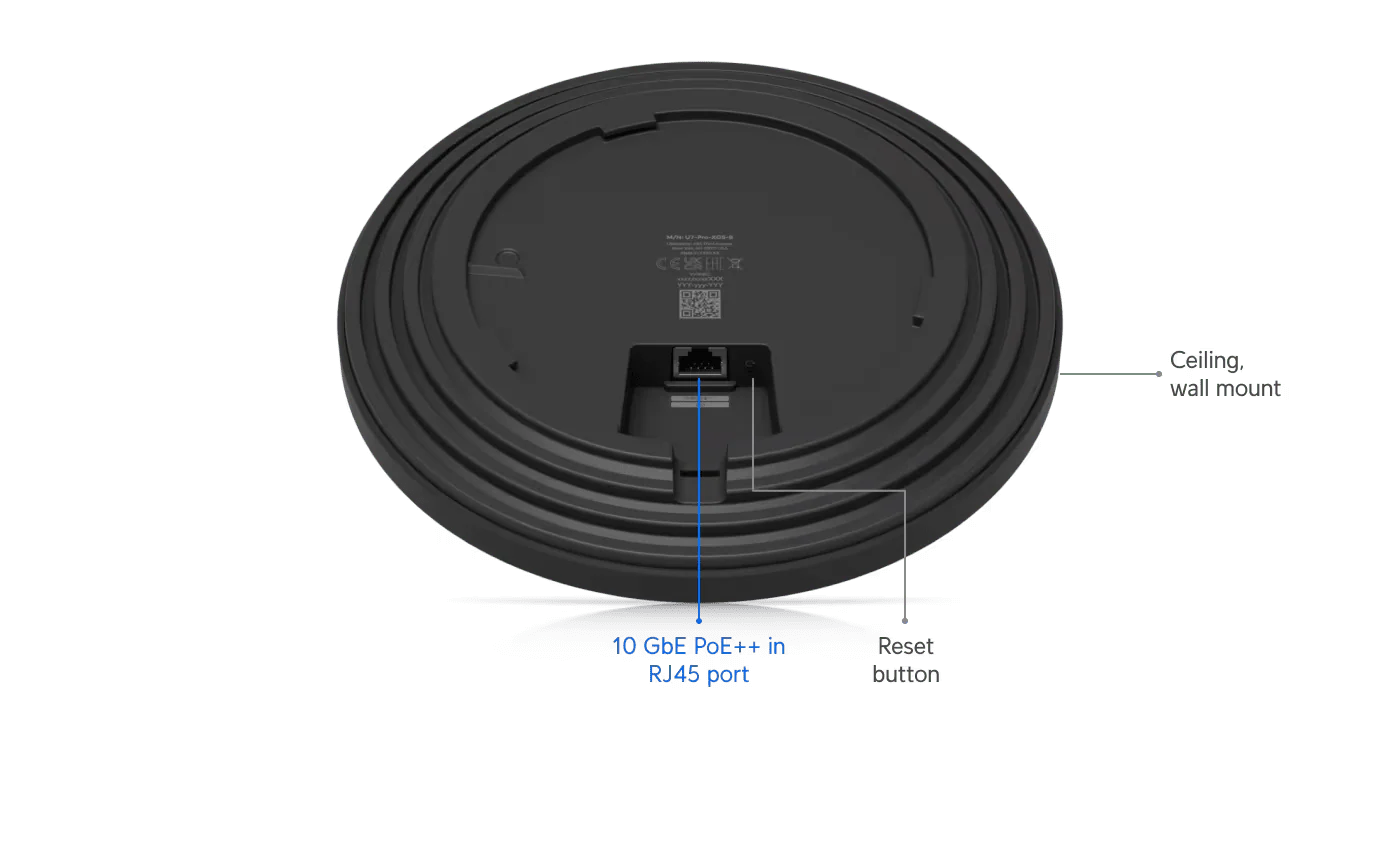

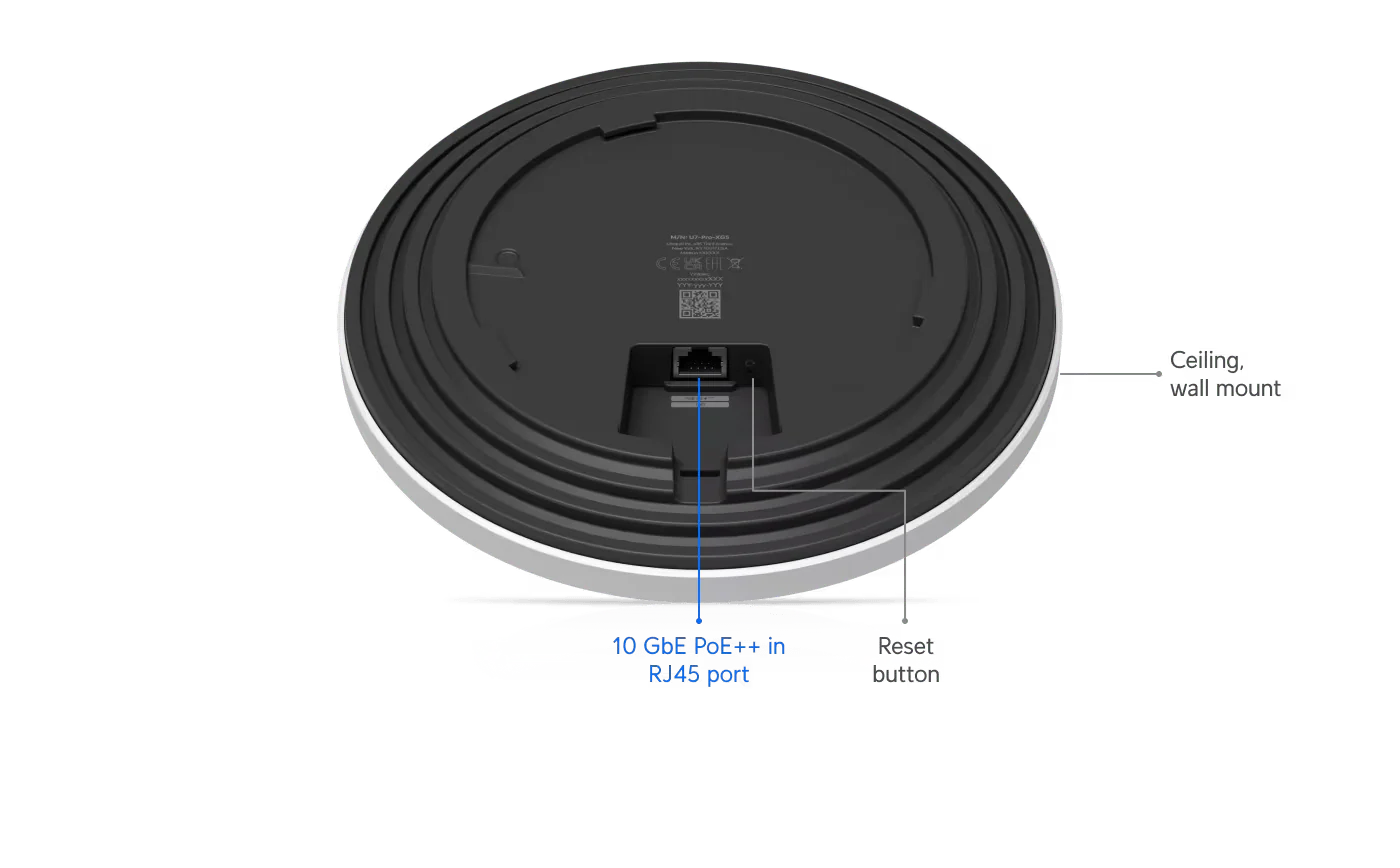

- 10/5/2.5/1 GbE uplink for ultra-fast data transmission

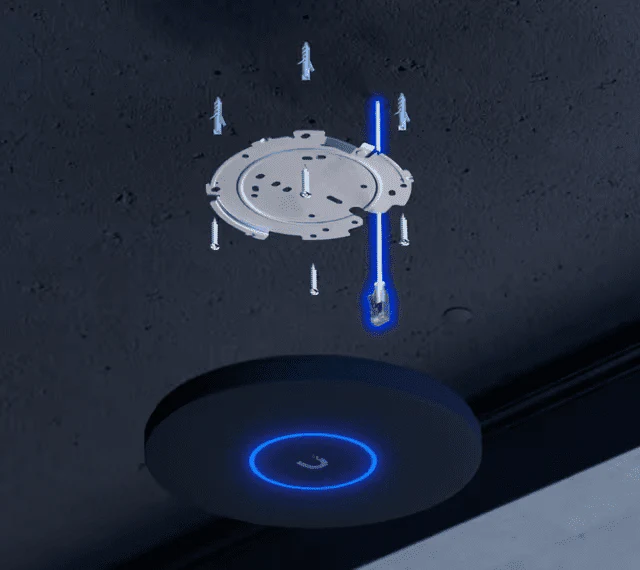

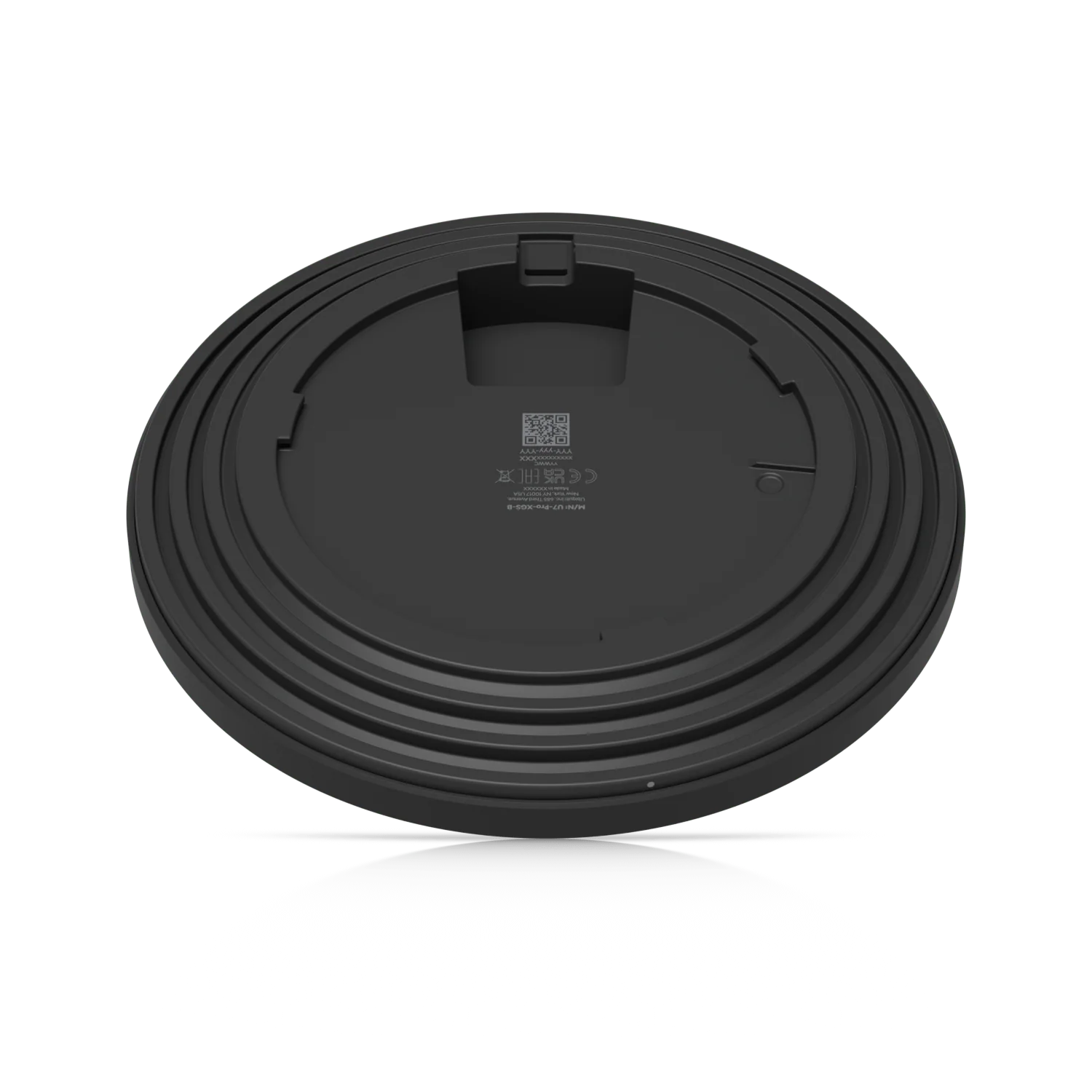

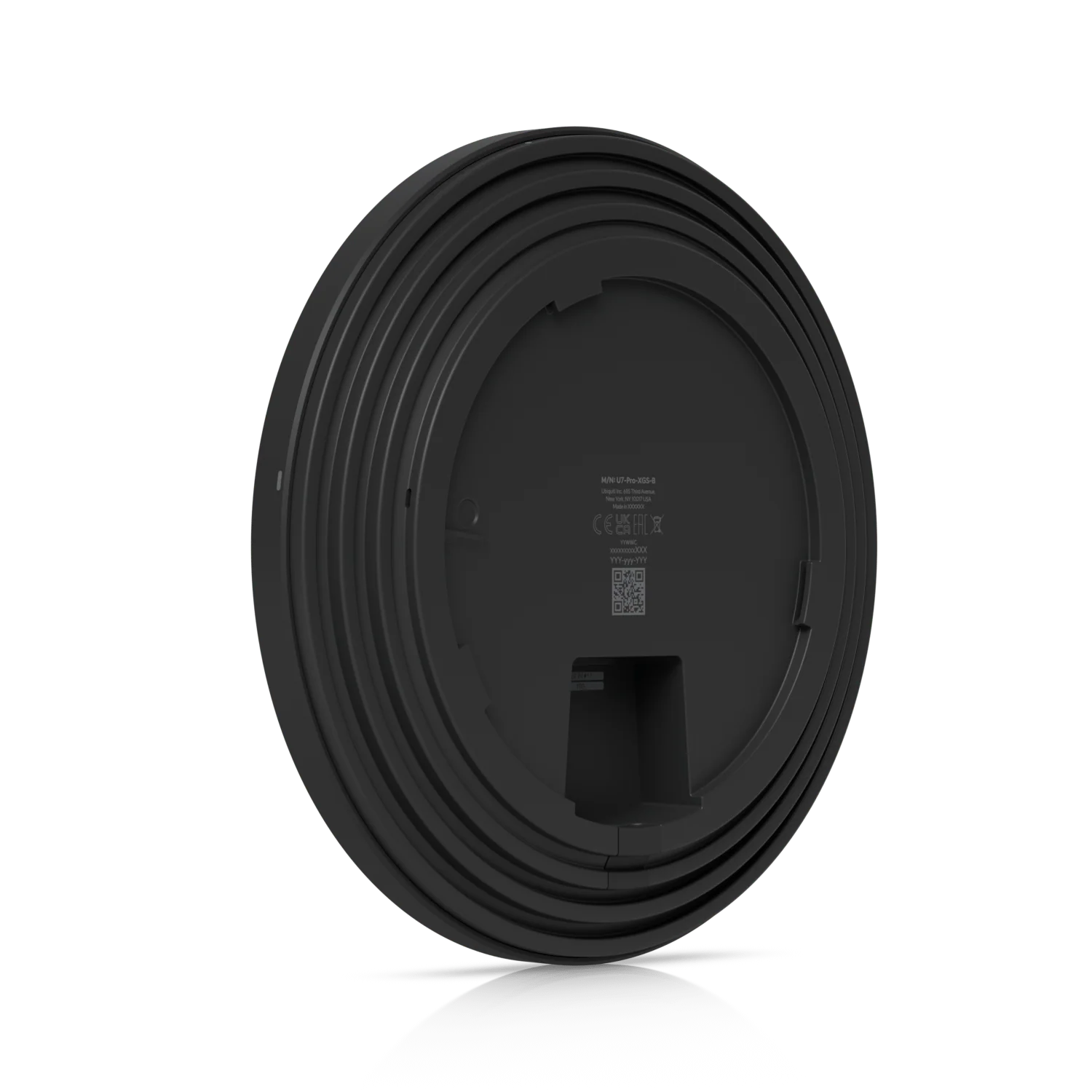

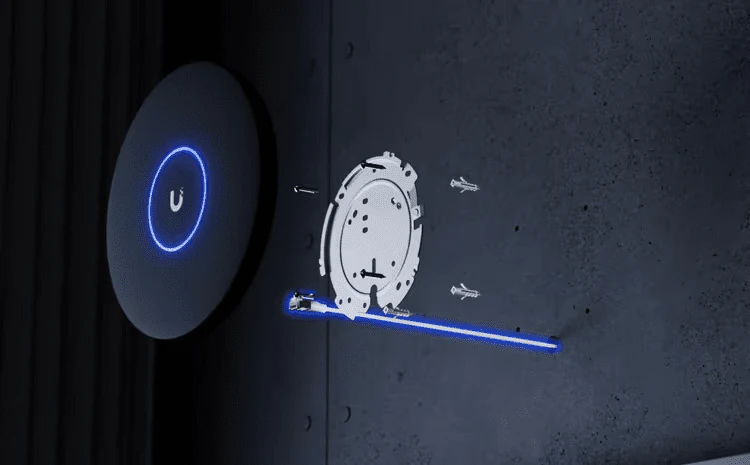

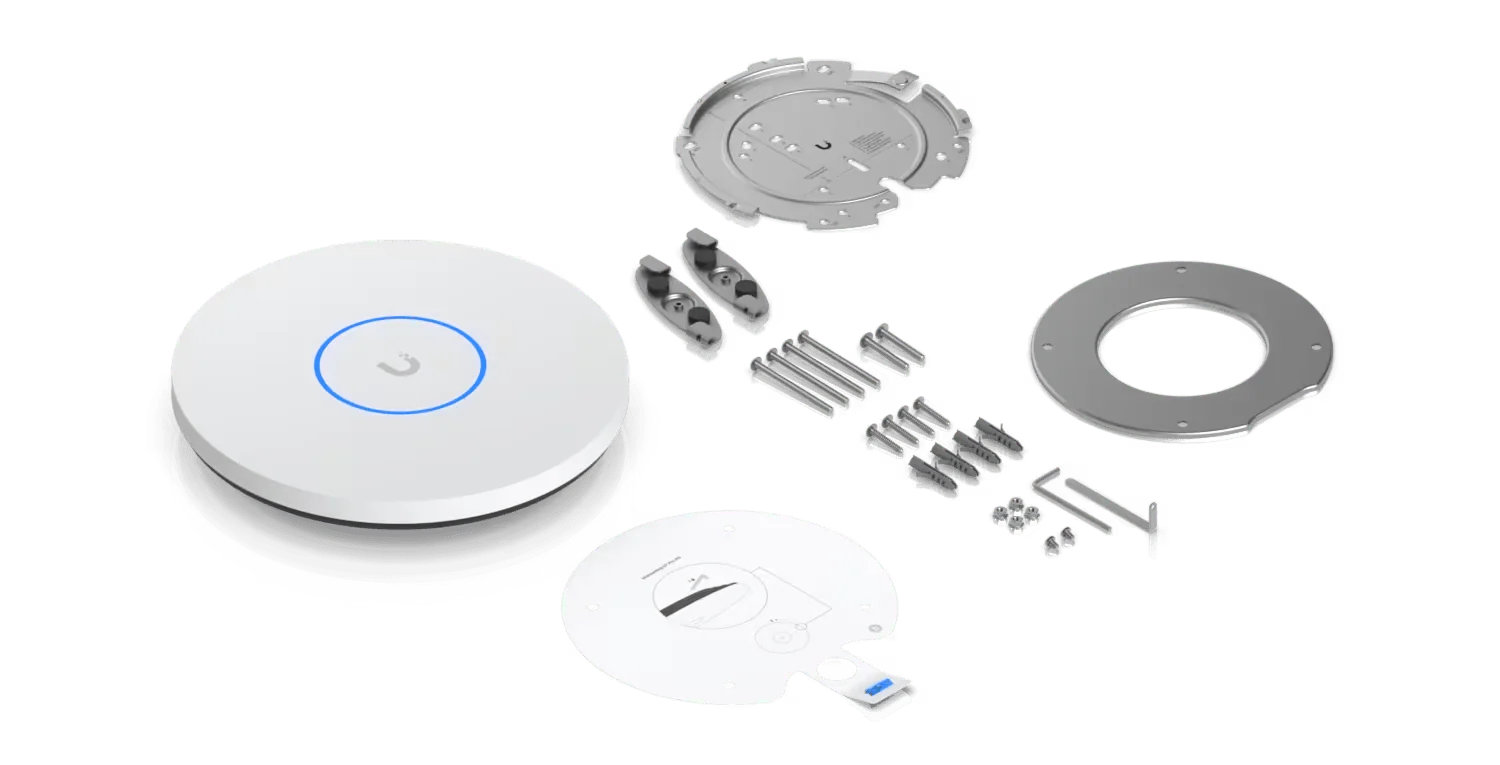

- Ceiling or wall-mountable with included Lite Mount
Key Features
WiFi 7 Performance for Maximum Speed
- 6 GHz (2x2 MU-MIMO, 5.8 Gbps) with 320 MHz bandwidth
- 5 GHz (4x4 MU-MIMO, 8.6 Gbps) with 240 MHz bandwidth
- 2.4 GHz (2x2 MU-MIMO, 688 Mbps) with 40 MHz bandwidth
Enterprise-Grade Network Capacity & Coverage

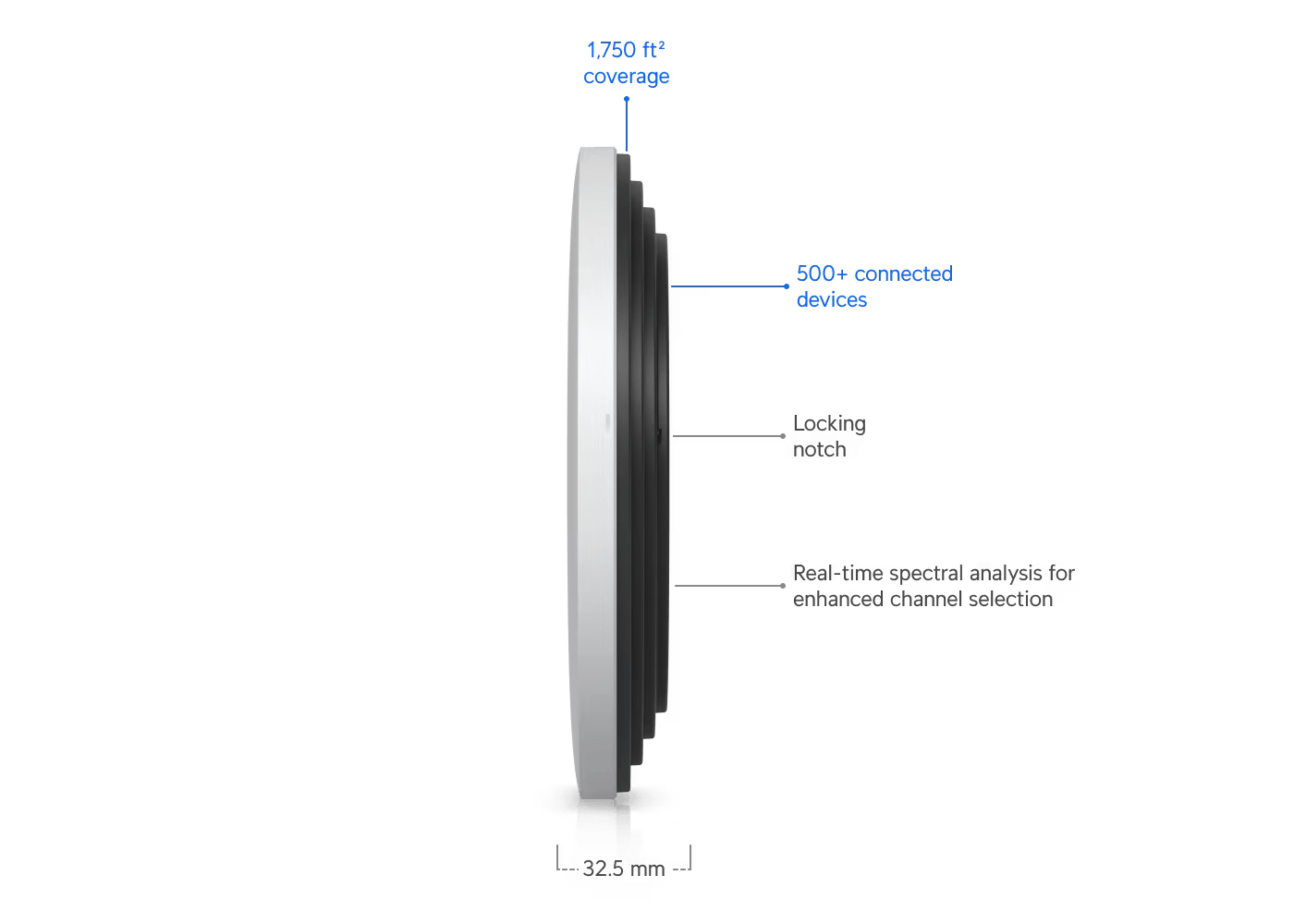

- Coverage area: 160 m² (1,750 ft²)
- 500+ simultaneous client capacity

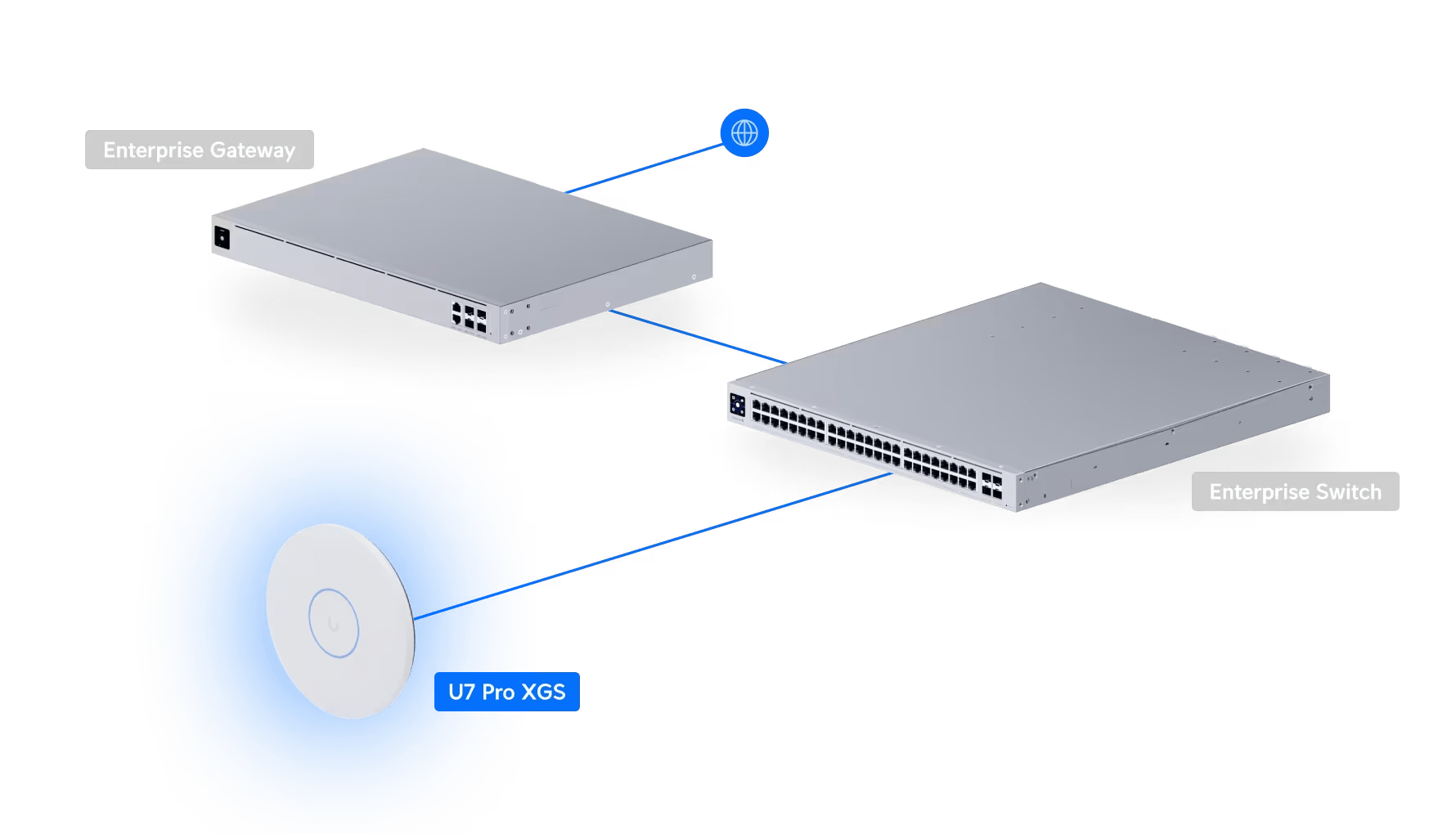

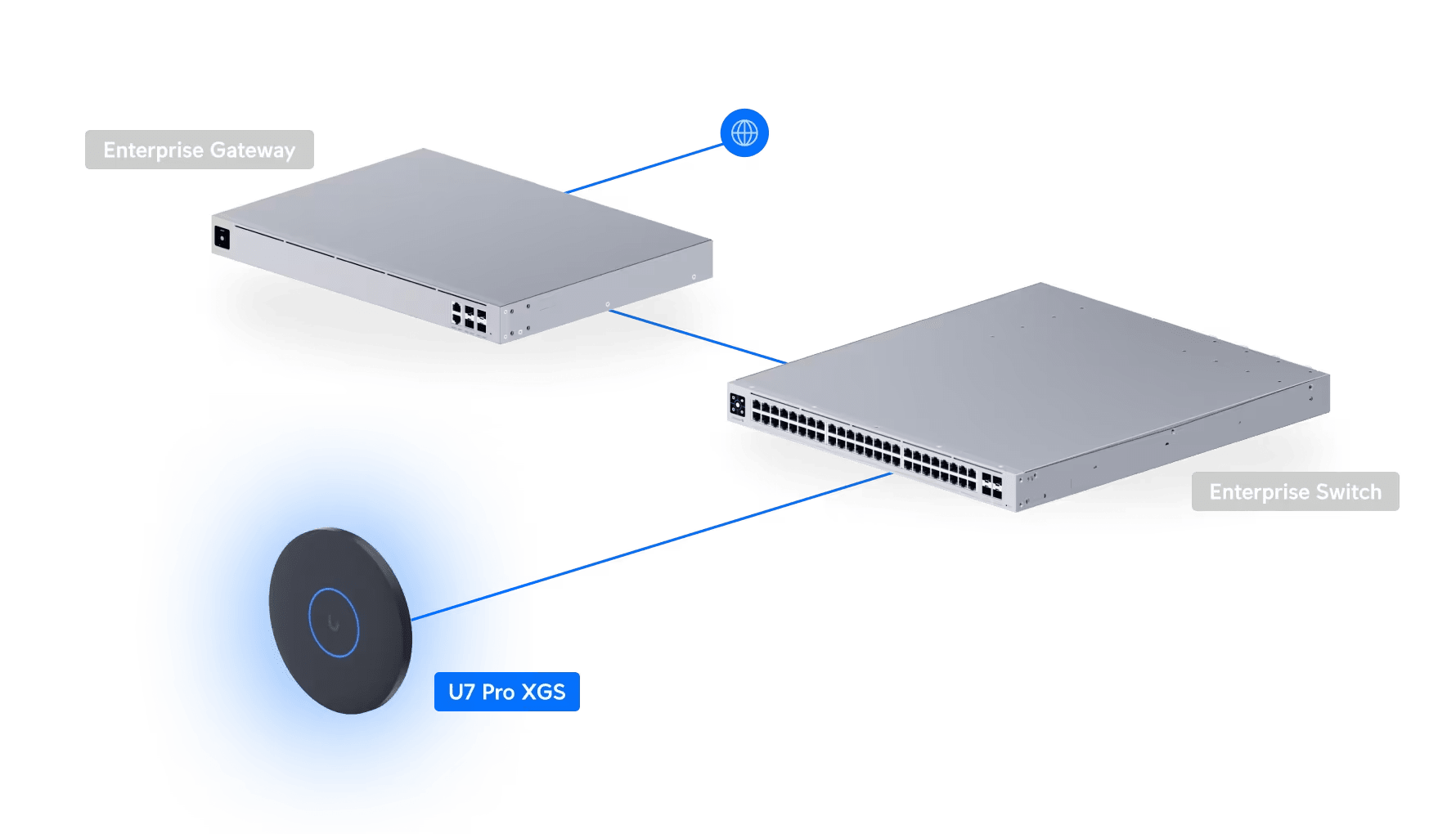

- 10 GbE uplink ensures high-speed backhaul connectivity
- High-Gain Antennas: 6 dBi (6 GHz, 5 GHz), 4 dBi (2.4 GHz)
Advanced Wireless Management & Optimization
- Real-Time Spectral Analysis for continuous interference monitoring
- Zero-Wait DFS eliminates delays when switching DFS channels
- 802.11v BSS Transition Management enhances roaming performance
- 802.11r Fast Roaming & 802.11k Radio Resource Management
Secure & Scalable Guest Network Solutions
- Passpoint (Hotspot 2.0) for seamless guest authentication
- Captive Portal with Custom Branding for controlled guest access
- Private Pre-Shared Key (PPSK) for secure authentication
- Dynamic VLANs via RADIUS for network segmentation
- WiFi Speed Limiting & Client Isolation for enhanced security
Deployment Flexibility & Power Efficiency
- PoE++ Powered for easy installation without additional power cables

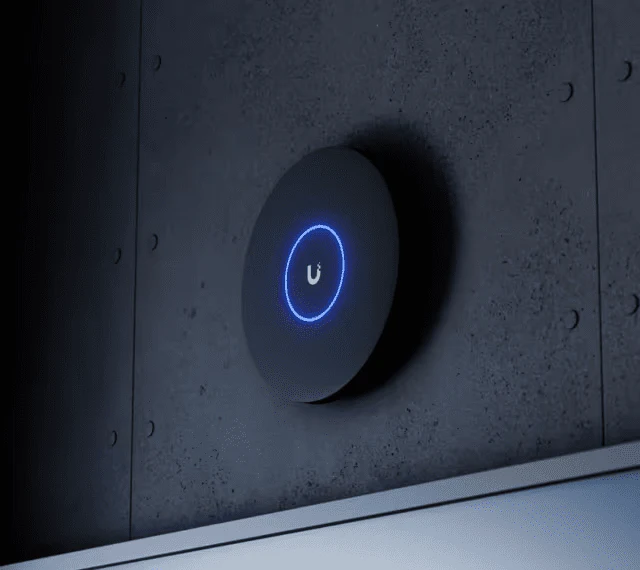

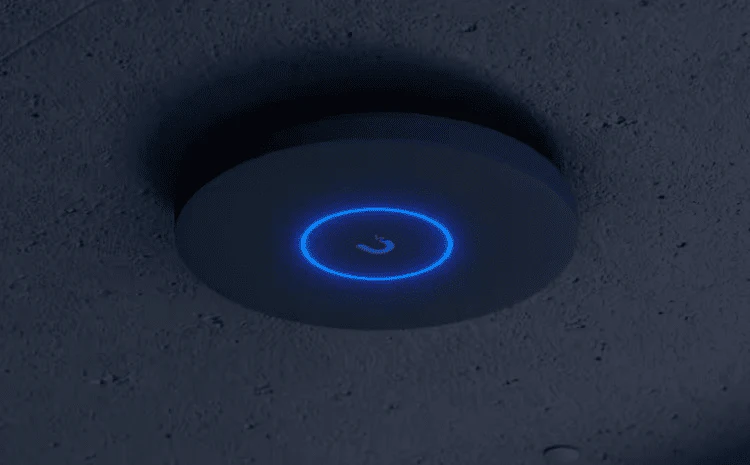

- Ceiling & Wall Mountable for optimal placement
- WiFi Scheduling to optimize energy consumption
Technical Specifications
| Specification | Details |
|---|---|
| WiFi Standard | WiFi 7 (802.11be) |
| MIMO Configuration | 2x2 (6 GHz, 2.4 GHz), 4x4 (5 GHz) |
| Coverage Area | 160 m² (1,750 ft²) |
| Max Client Capacity | 500+ |
| Uplink | 10GbE |
| Mounting Options | Ceiling, Wall (Lite Mount included) |
| Power Method | PoE++ |
| Antenna Gain | 6 GHz: 6 dBi, 5 GHz: 6 dBi, 2.4 GHz: 4 dBi |
| Max TX Power | 6 GHz: 24 dBm, 5 GHz: 29 dBm, 2.4 GHz: 23 dBm |
| BSSIDs | 8 per radio |
| Security Features | PPSK, WPA3, RADIUS over TLS, VLAN Support |
| Guest Network | Captive Portal, Voucher Authentication, Payment-based Authentication |
Summary
The Ubiquiti U7 Pro XGS BE15100 is a cutting-edge WiFi 7 access point optimized for high-speed, high-density networking. With multi-gigabit uplink, advanced MU-MIMO capabilities, dedicated spectral scanning, and enterprise-grade security, it provides seamless, interference-free connectivity for businesses, schools, and large venues.
