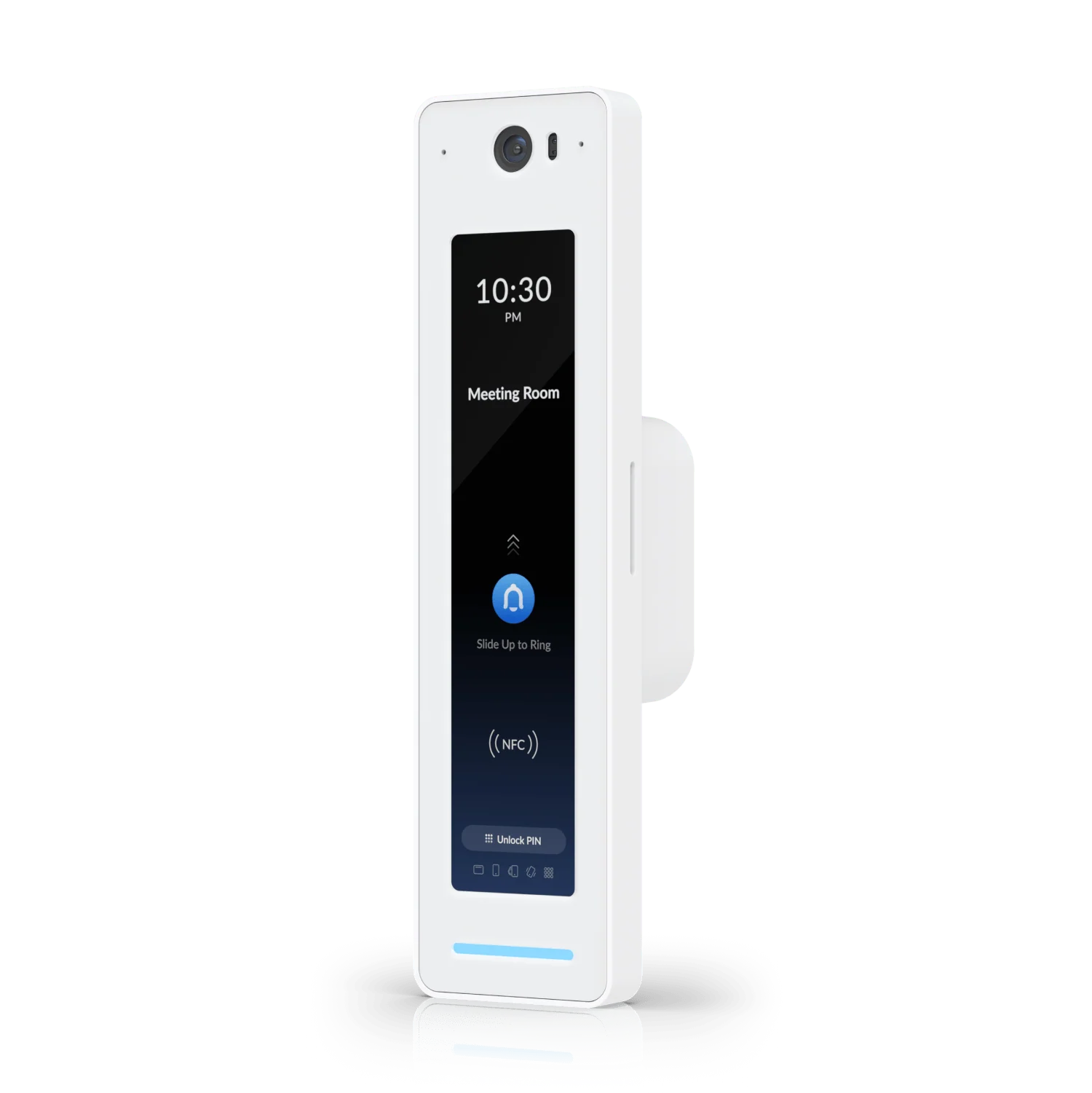

Ubiquiti UA-G2-Pro G2 Reader Pro

Advanced NFC Card Reader and Intercom

The Ubiquiti UA-G2-Pro G2 Reader Pro is a second-generation NFC card reader and intercom designed to enhance access control and security. With multiple unlocking methods, a high-resolution camera, and robust weather resistance, this device is ideal for both residential and commercial applications.

Highlights

• Versatile Unlocking Methods: Unlock using an NFC card, UniFi Identity mobile app, or PIN on the screen
• Integrated Intercom: Two-way intercom and video doorbell functionality
• High-Resolution Video: 12 MP camera with a wide viewing angle, compliant with ADA mounting height

Key Features

• Comprehensive Access Control

  • NFC Card and Mobile App Unlock: Convenient and secure unlocking options
  • PIN Unlocking: Additional security with PIN entry on the screen
  • Intercom and Video Doorbell: Communicate with visitors through two-way audio and video

• Robust Hardware

  • High-Resolution Camera: 12 MP camera with 4000 x 3000 resolution at 30 FPS
  • Wide Viewing Angle: Horizontal 96.67°, Vertical 123.15°, Diagonal 153.11°
  • Proximity Sensor: Detects user presence for seamless interaction

• Durable and Weather-Resistant

  • IP55 Rating: Suitable for outdoor use, resistant to rain and harsh weather conditions
  • Temperature Range: Operates in temperatures from -10 to 45°C

• Efficient Power and Connectivity

  • PoE Powered: Simplifies installation with Power over Ethernet

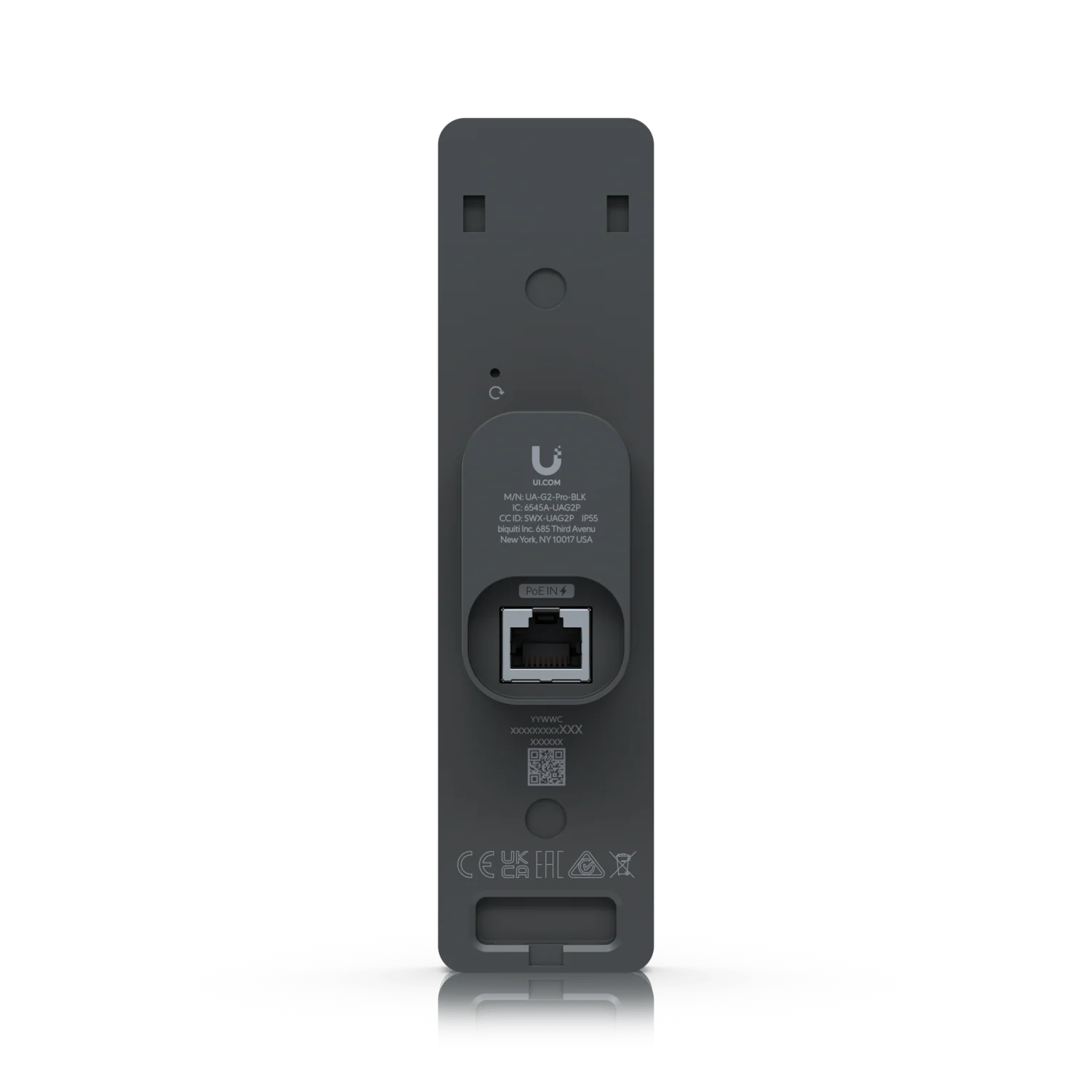

  • Networking Interface: One GbE RJ45 port for reliable connectivity
  • BLE 4.2 and NFC: Supports various NFC technologies and BLE for enhanced functionality

Specifications

Specification	Details
Networking Interface	(1) GbE RJ45 port
Connectivity	BLE 4.2, NFC
Power Method	PoE
Supported Voltage Range	48V DC
Max Power Consumption	6W
ESD/EMP Protection	Air: ±15kV, contact: ±8kV
Sensor	Proximity sensor
Camera	4000 x 3000, 12 MP, 30 FPS
View Angle	Horizontal: 96.67°, Vertical: 123.15°, Diagonal: 153.11°
Microphone	Yes
Speaker	(1) 4 ohm, 1.5W
LEDs	R/G/B/W
NFC Technology	NFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
Operating Environment	Outdoor use
Weather Resistance	IP55, -10 to 45° C

Summary

The Ubiquiti UA-G2-Pro G2 Reader Pro is an advanced access control solution that combines NFC card reading, mobile app integration, PIN unlocking, and intercom functionality. With its high-resolution camera, wide viewing angle, and robust weather resistance, it ensures secure and efficient access management for various environments. Powered by PoE and featuring multiple connectivity options, the UA-G2-Pro is a versatile and reliable choice for modern access control systems.

Reader Comparison

Feature	G2 Reader Pro	G2 Reader	Reader Lite
Camera	✓	—	—
Two-Way Intercom & Doorbell Access	✓	—	—
PIN Access	✓	—	—
NFC Card & Keyfob Access	✓	✓	✓
One-Click UniFi Identity Mobile App Access	✓	✓	✓
Mobile Tap Access	✓	✓	✓
Handwave Request to Exit	—	—	✓
Outdoor-Ready	IP55 rain resistance (-10 to 45°C)	IP55 rain resistance (-30 to 45°C)	IP54 rain resistance (-20 to 40°C)
Power Method	PoE via UniFi Control Hub	PoE via UniFi Control Hub	PoE via UniFi Control Hub
