Ubiquiti UDB-Switch 35W Wifi 7 Device Bridge Switch
High-Capacity Wireless Uplink with Integrated Multi-Gig Switching
Designed for flexible edge deployments, this compact device bridge switch combines WiFi 7 wireless uplink with multi-gigabit switching and PoE+ output, enabling high-performance connectivity without dedicated wired backhaul.
Highlights
WiFi 7 Wireless Bridge Integration
• 6 GHz and 5 GHz WiFi 7 support
• Up to 5.8 Gbps on 6 GHz with 320 MHz bandwidth

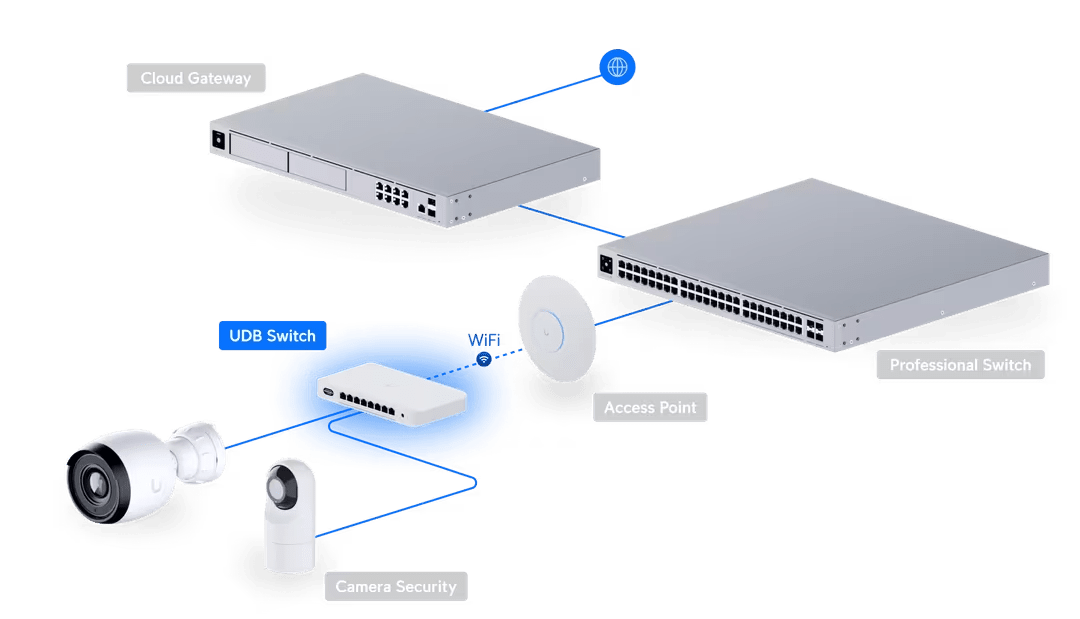

• Seamless wireless uplink to UniFi WiFi infrastructure
• WPA3 SAE wireless security always enabled
Multi-Gig Switching Performance

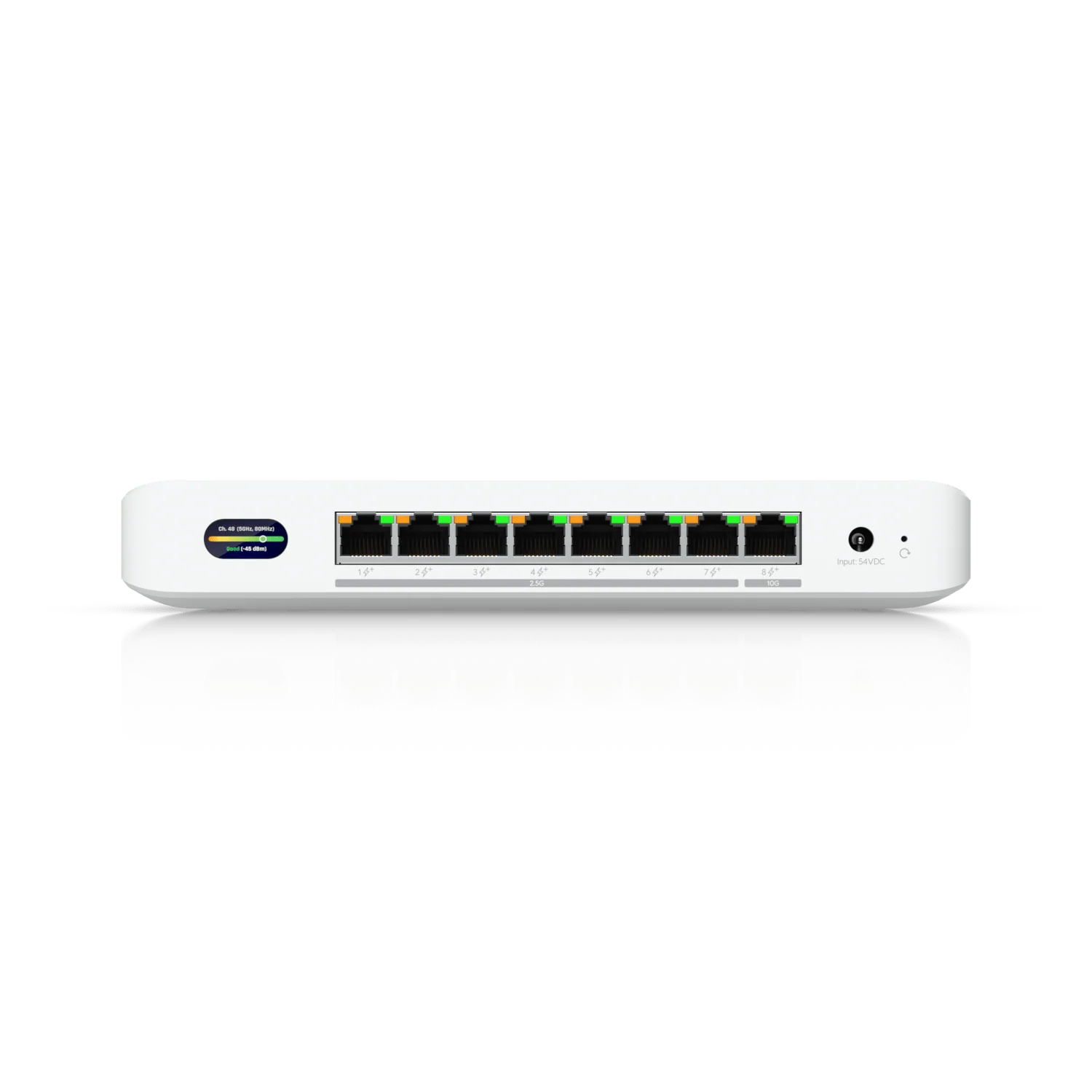

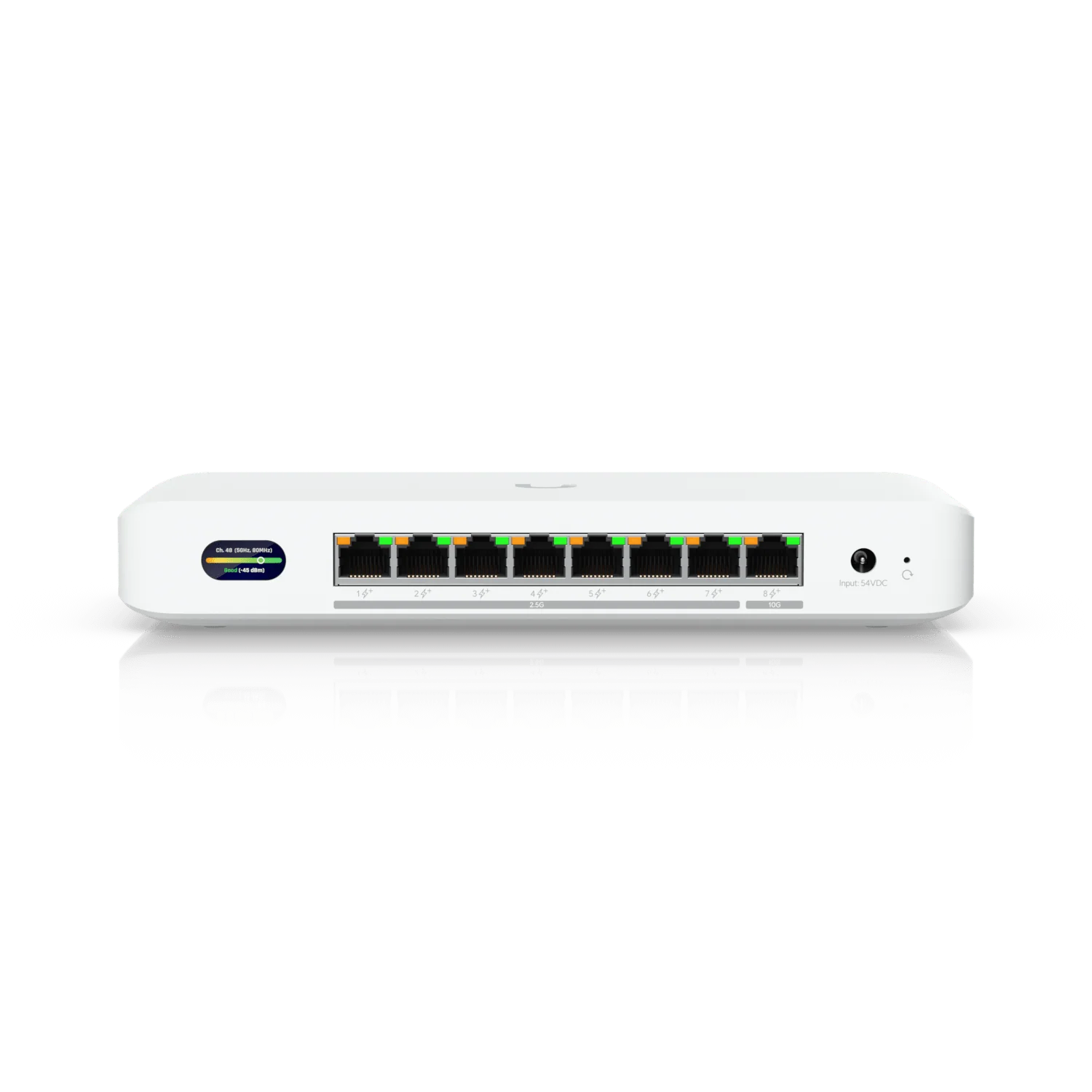

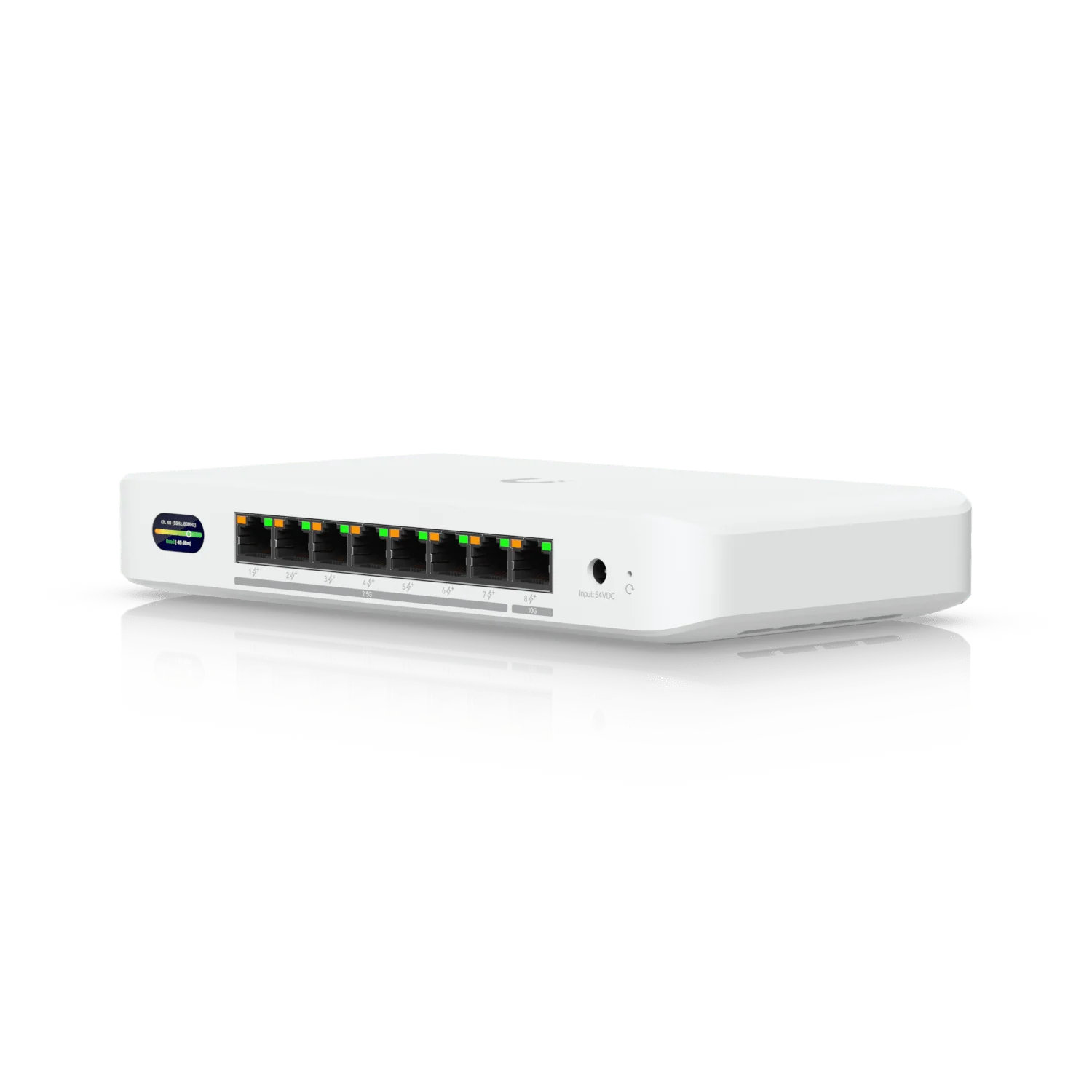

• One 10 GbE RJ45 port
• Seven 2.5 GbE RJ45 ports
• Eight PoE+ ports supporting up to 30 W per port
Flexible PoE Power Scaling

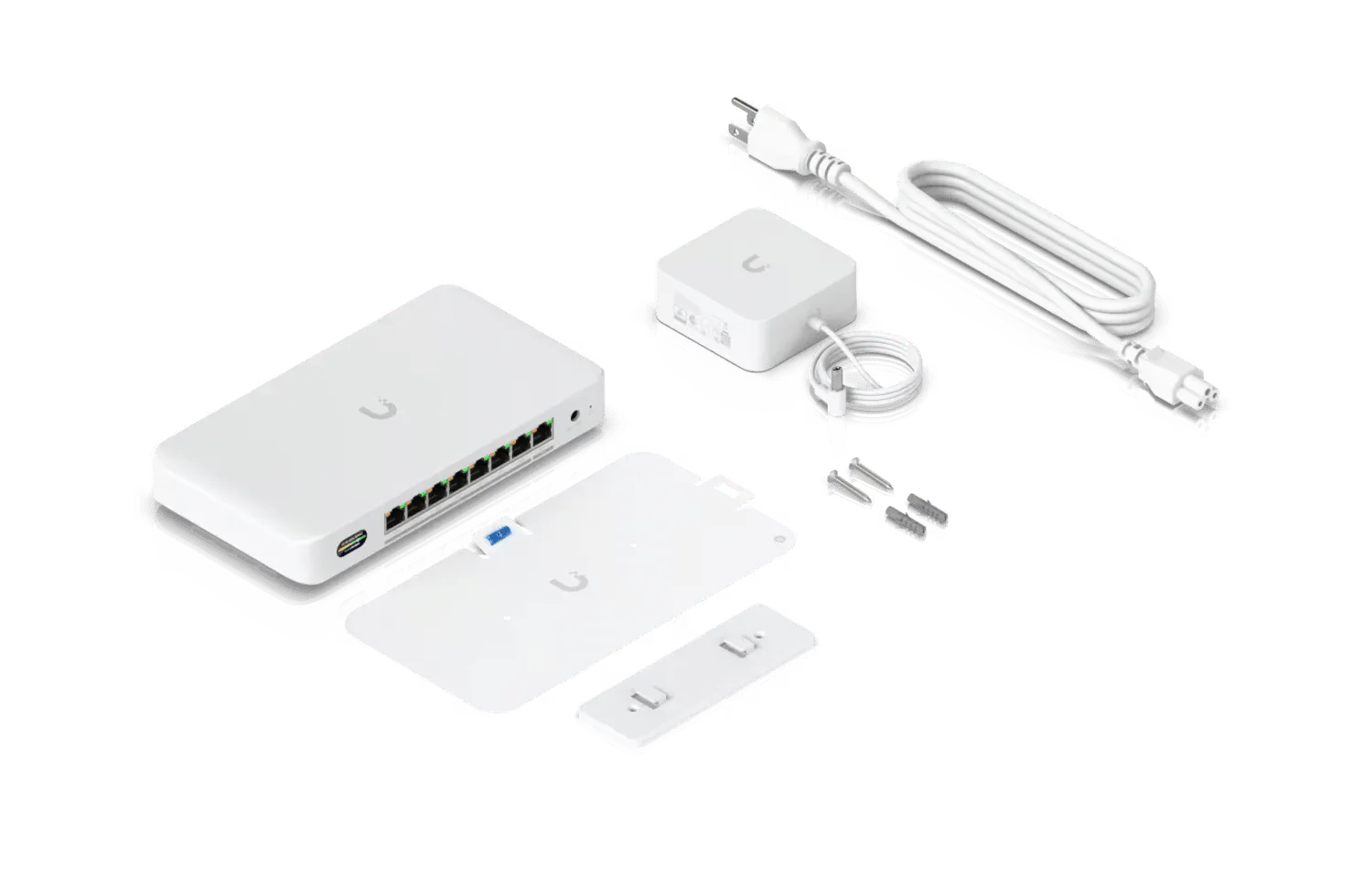

• 35 W total PoE with included 60 W adapter
• Up to 185 W total PoE with optional 210 W adapter
• Maximum device power consumption 25 W excluding PoE output
Key Features
Ubiquiti UDB-Switch 35W Compact Device Bridge Switch
• WiFi 7 device bridge with integrated switch
• NDAA compliant

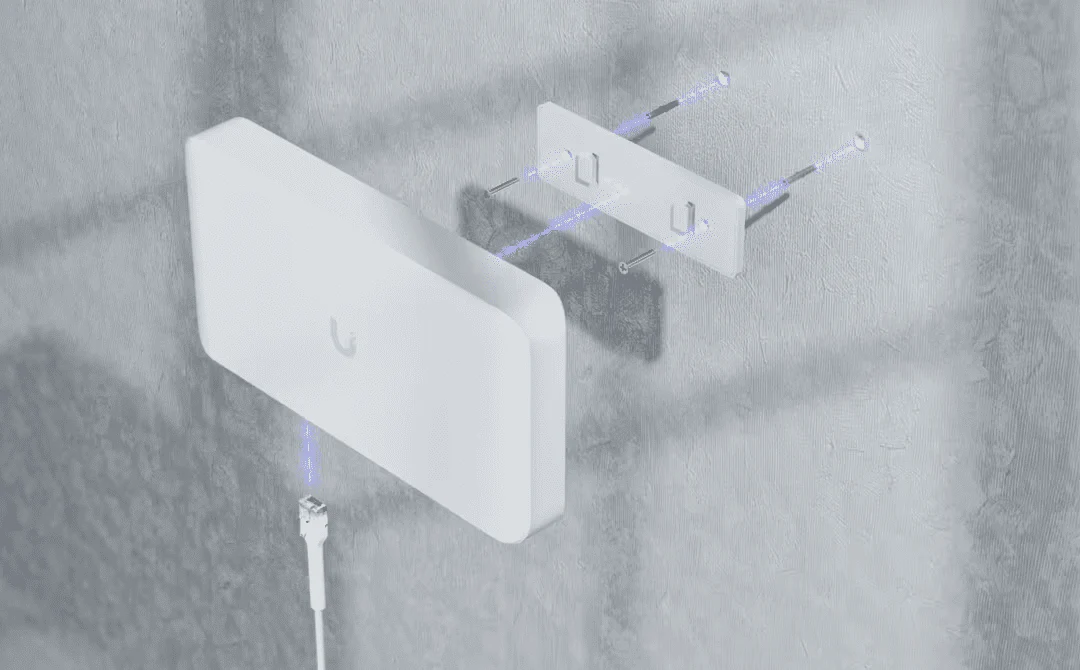

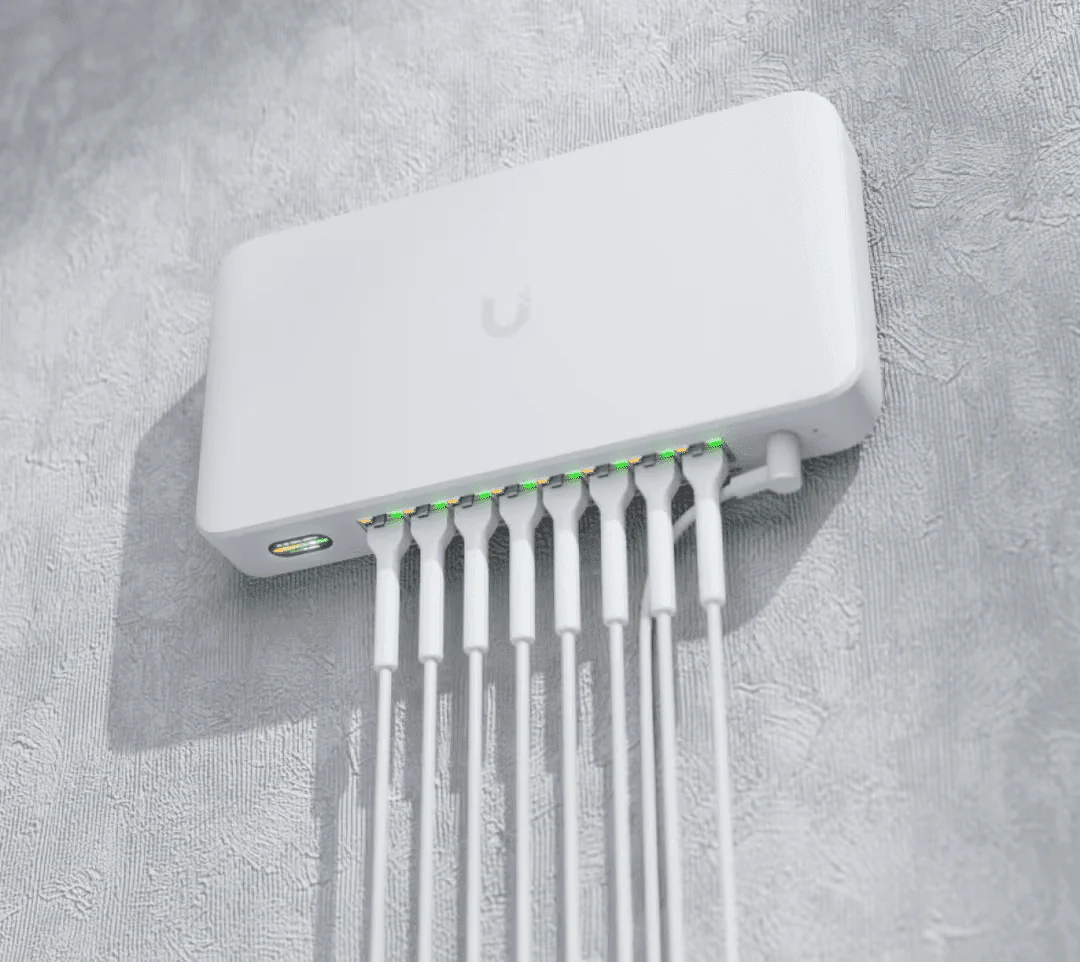

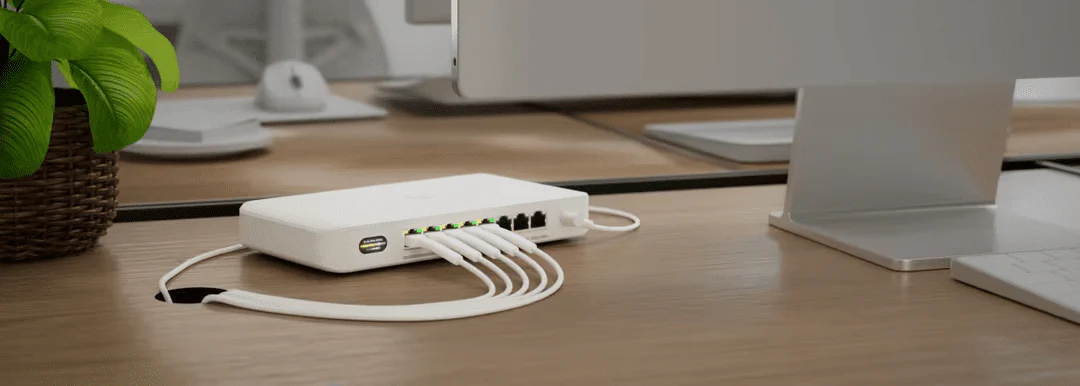

• Desktop and wall mounting options
High-Speed Wireless Architecture
• 6 GHz 2 × 2 MIMO up to 5.8 Gbps
• 5 GHz 2 × 2 MIMO up to 4.3 Gbps
• Antenna gain 8 dBi on both 6 GHz and 5 GHz
• Channel bandwidth up to 320 MHz
Multi-Gig Wired Connectivity
• One 10 GbE uplink port
• Seven 2.5 GbE access ports
• Eight PoE+ ports delivering up to 30 W per port
• Supported voltage range 42.5 to 57 V DC
Enterprise Deployment Features
• WPA3 SAE security
• Management via Ethernet and WiFi
• 0.96 inch LCM status display
• Factory reset button
Physical and Environmental Specifications

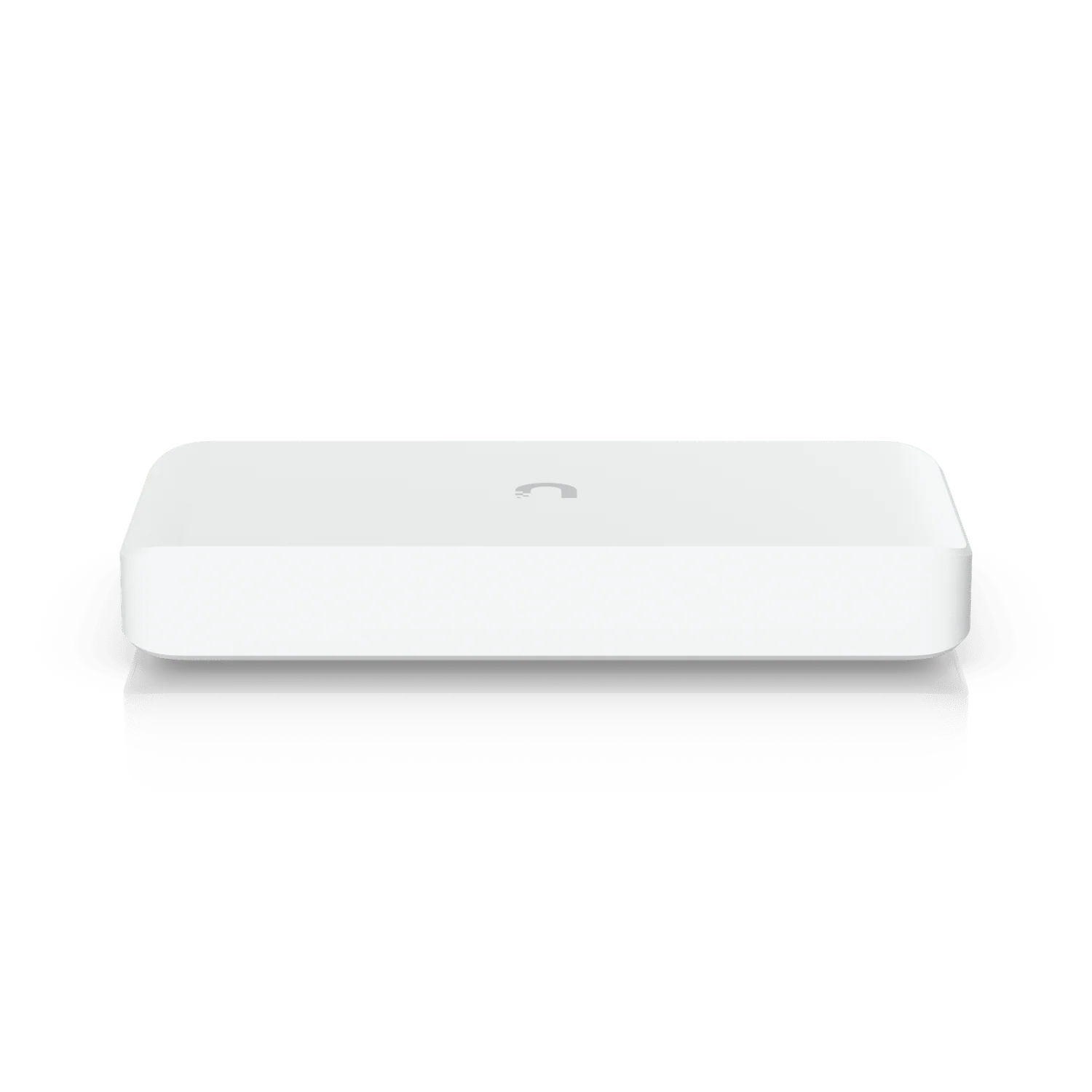

• Dimensions 212.9 × 113 × 32.5 mm
• Weight 548 g device only
• Polycarbonate enclosure
• Operating temperature -30 °C to 40 °C
• Operating humidity 5 to 95 percent noncondensing
Summary / Conclusion
Ubiquiti UDB-Switch 35W Compact Device Bridge Switch integrates WiFi 7 wireless uplink with multi-gigabit switching and scalable PoE+ output in a compact form factor. With 10 GbE connectivity, 2.5 GbE access ports, and optional high PoE capacity, it enables high-performance deployments in environments where wired backhaul is limited or impractical.
