Ubiquiti UNVR-Instant-Kit Network Video Recorder Instant Kit

Complete Security Made Simple

The Ubiquiti UNVR-Instant-Kit delivers enterprise-class video security in a compact, all-in-one bundle. Including a UNVR-Instant NVR, four G5 Turret Ultra cameras, and a 1TB HDD, this kit is designed for fast, affordable, and professional-grade surveillance. Ideal for homes, small businesses, and enterprises, it combines powerful performance with effortless deployment.

Highlights

• All-in-One Kit: Includes UNVR-Instant NVR, four G5 Turret Ultra cameras, and 1TB HDD

• Integrated PoE Switch: 6 GbE PoE ports for plug-and-play camera deployment

• Camera Support: Up to 6× 4K, 8× 2K, or 15× HD cameras with UniFi Protect

• Expandable Storage: 3.5" HDD bay with 1TB pre-installed drive included

• Live Monitoring: HDMI ViewPort output for real-time viewing

• Smart Detections: Cameras support AI-based detection of people, vehicles, and animals

• Weatherproof Cameras: IP66-rated G5 Turret Ultra for indoor and outdoor use

• Easy Setup: UniFi Protect integration with local and cloud management

Key Features

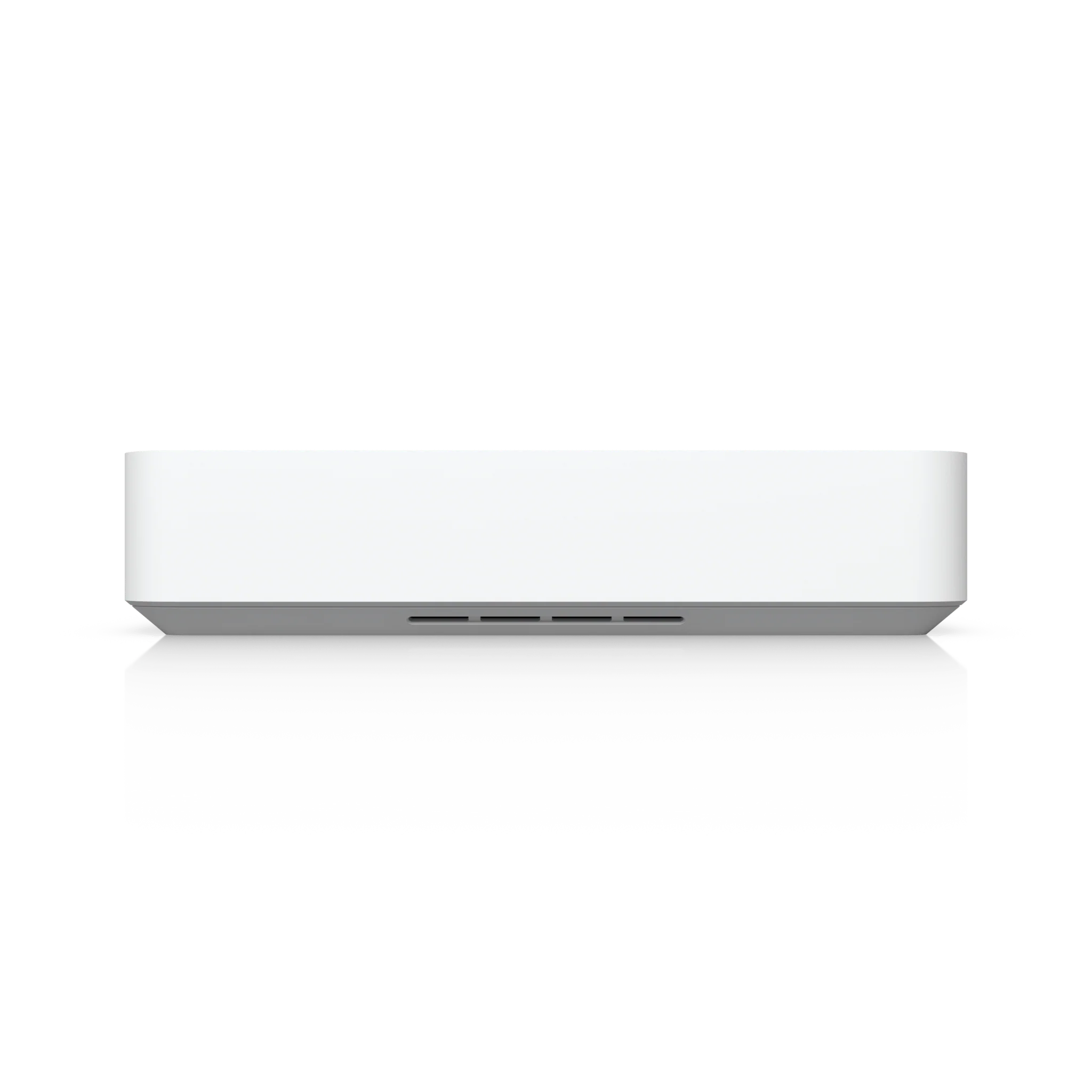

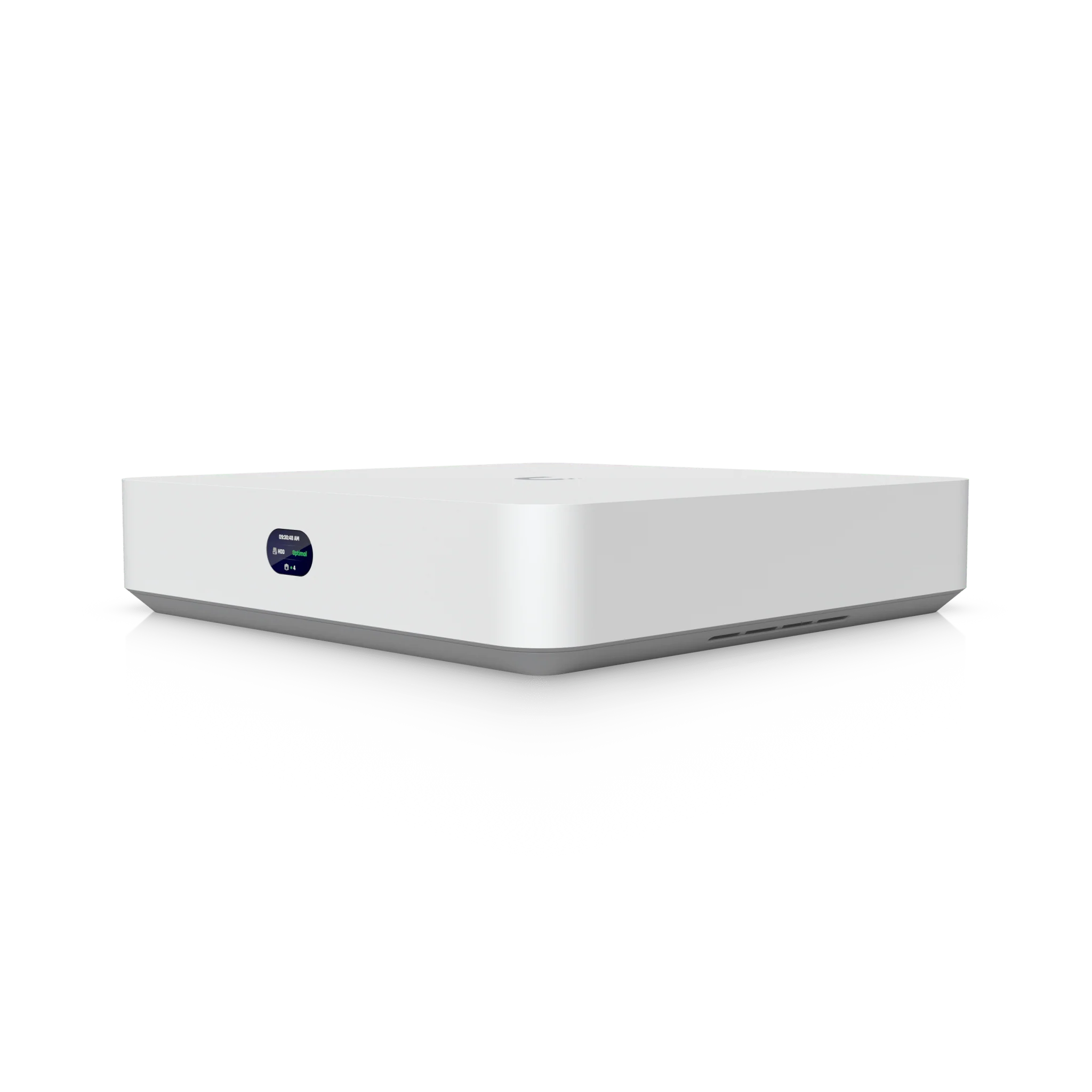

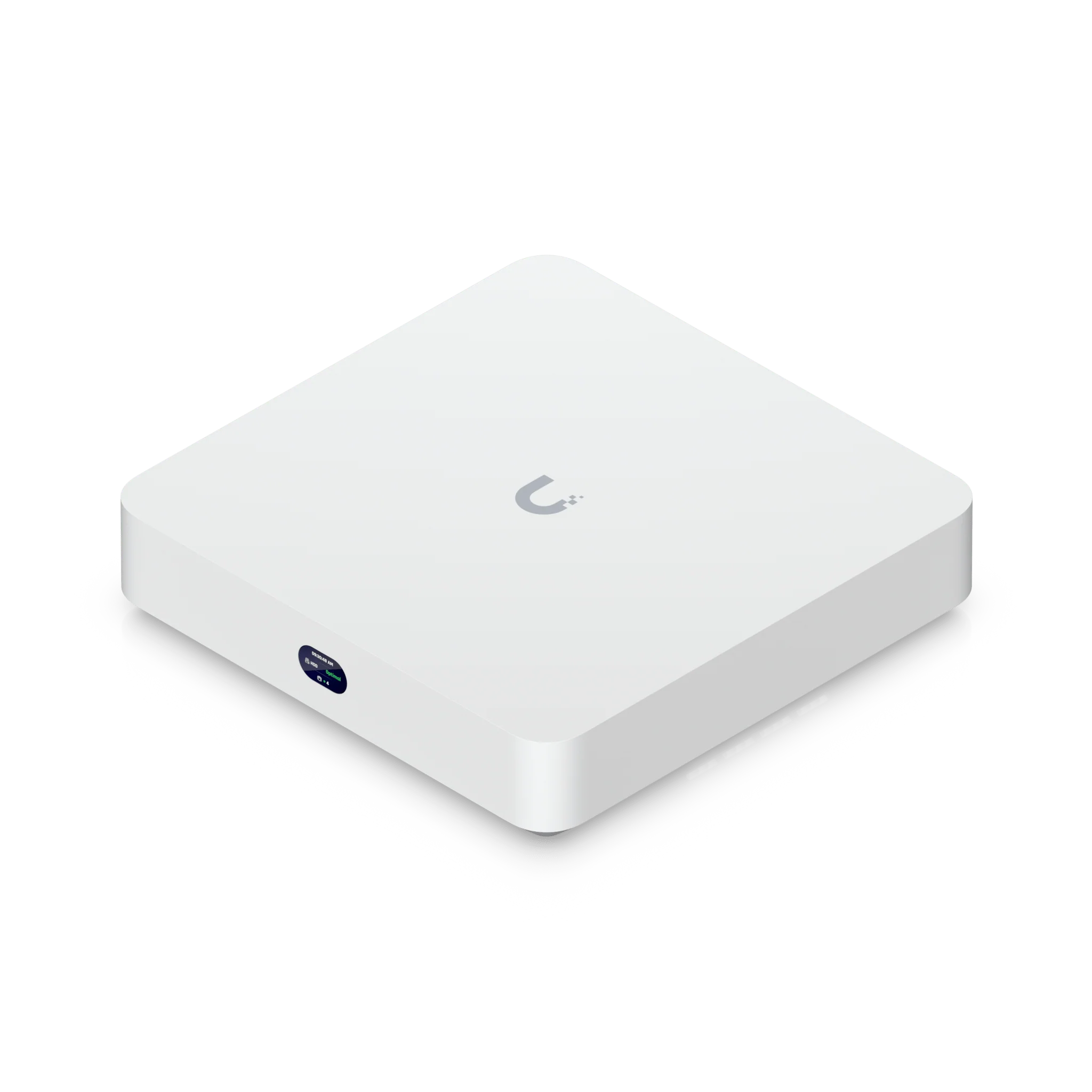

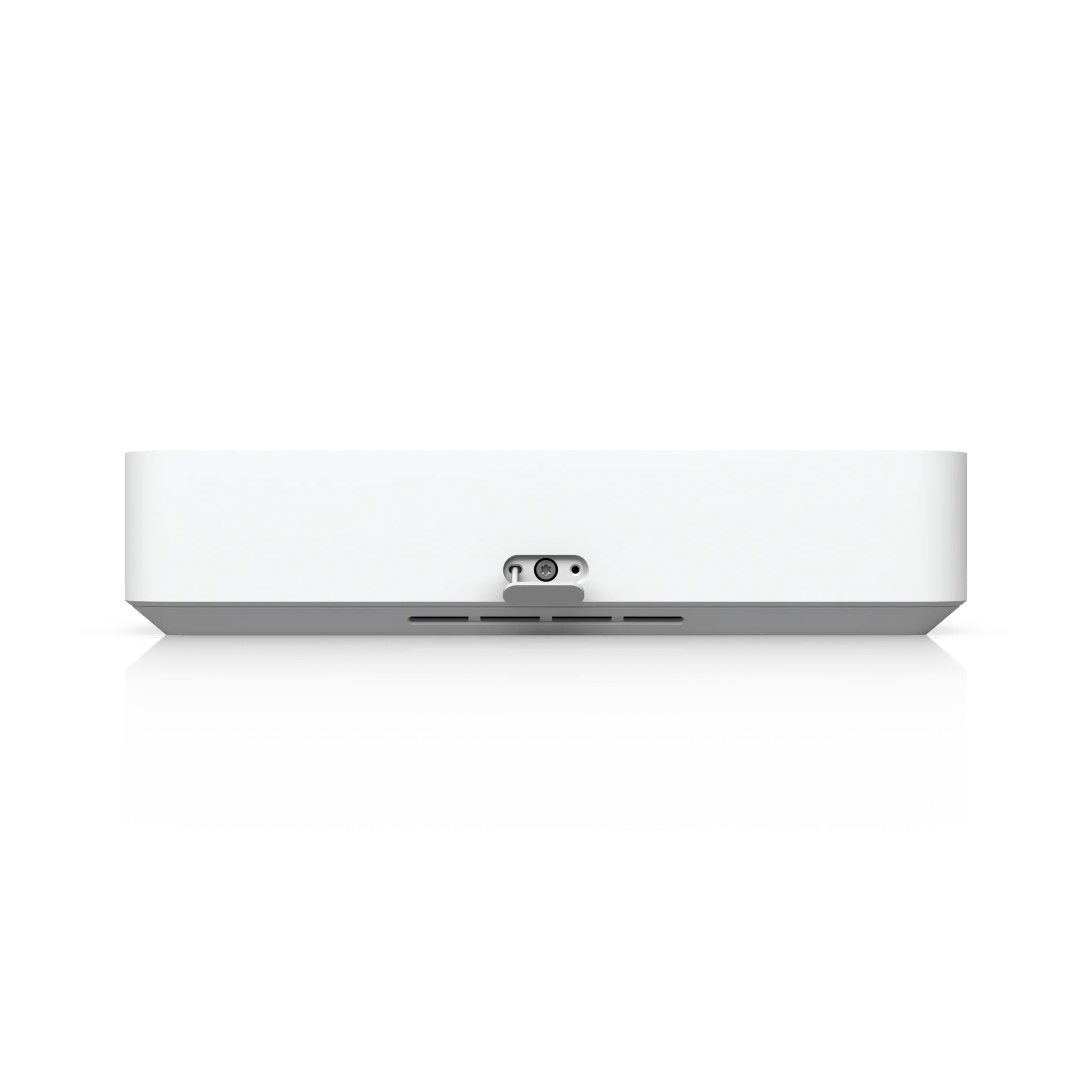

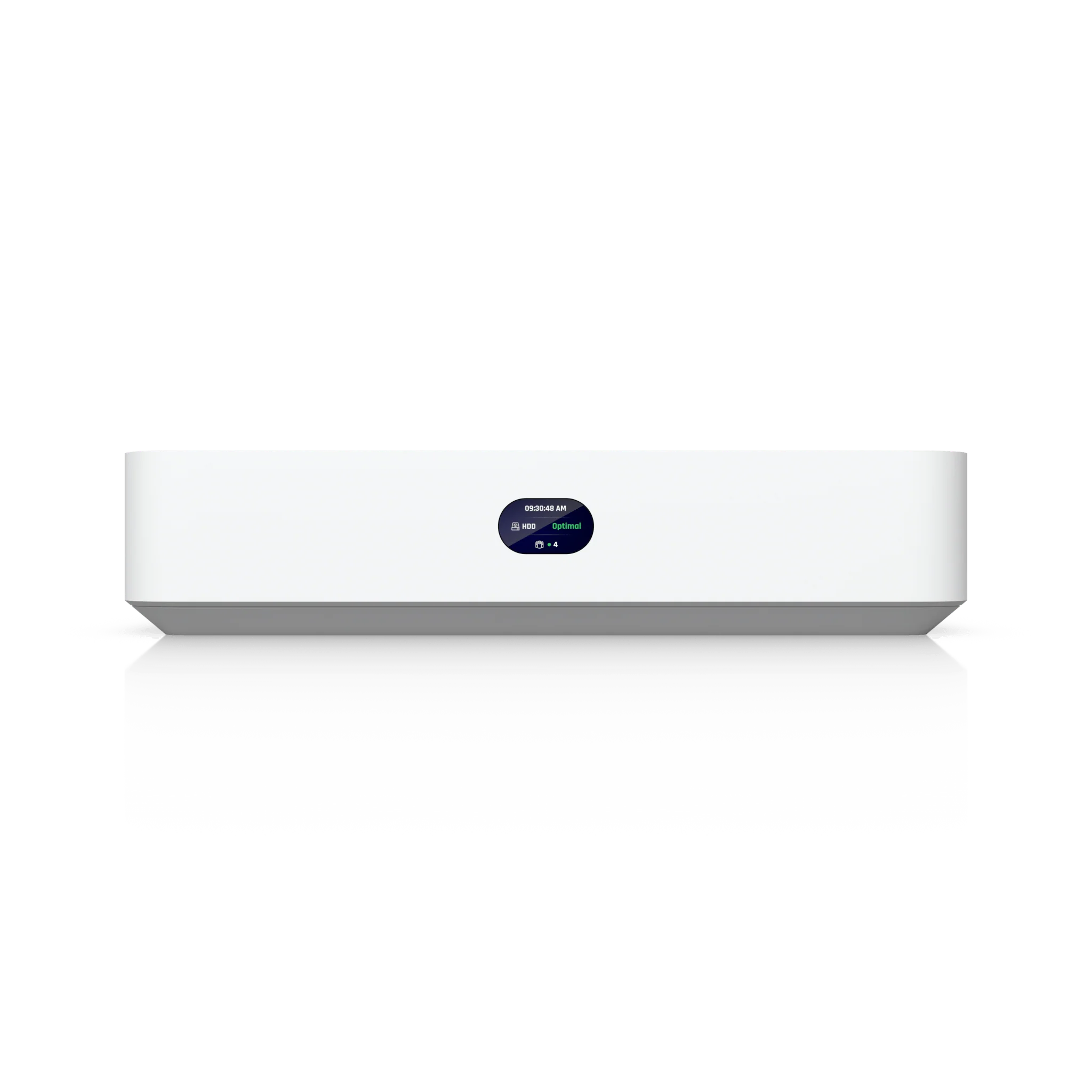

UNVR-Instant

• Dimensions: 220 × 220 × 47 mm (8.7 × 8.7 × 1.9 inches)

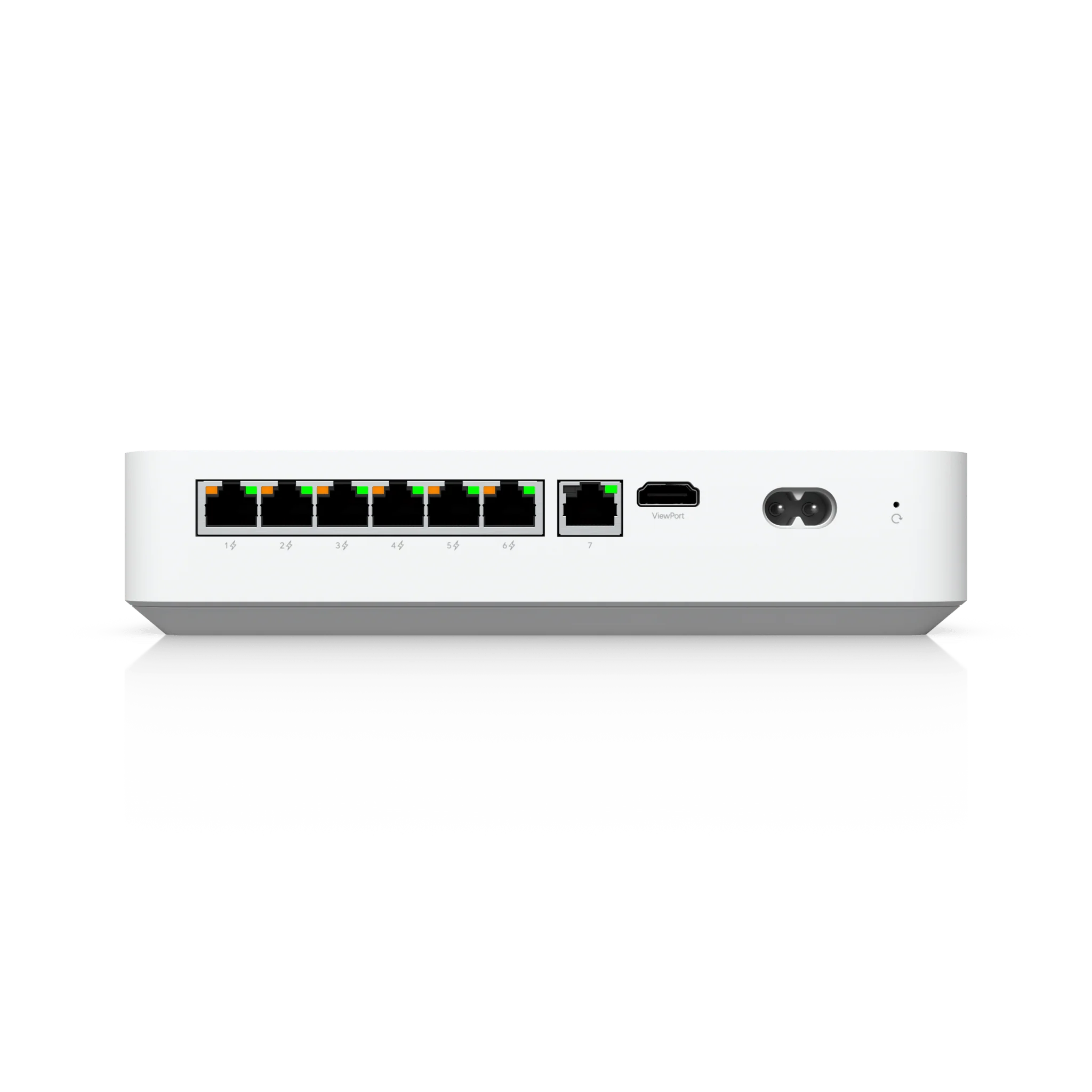

• Networking: 1× GbE uplink, 6× GbE PoE downlink, 1× HDMI ViewPort

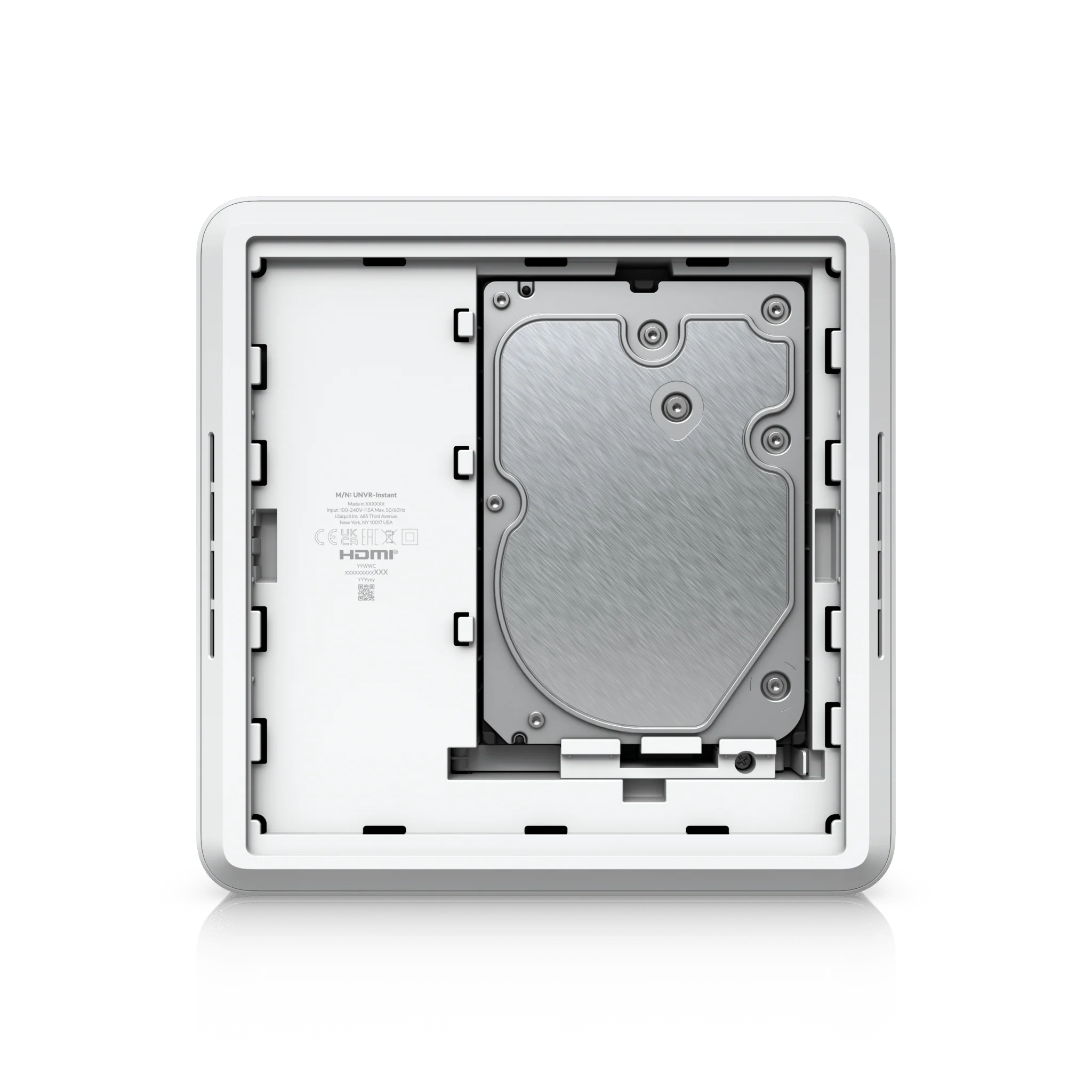

• Storage: 1× 3.5" HDD bay, 1TB drive included, expandable up to 11W power budget

• Performance: Supports 6× 4K, 8× 2K, or 15× HD cameras, powered by a quad-core ARM Cortex-A55 at 1.7 GHz with 4 GB RAM

• Power: Internal 60W AC/DC PSU, 40W PoE budget, max 9W consumption

• Mounting: Desktop, wall, or DIN rail (included)

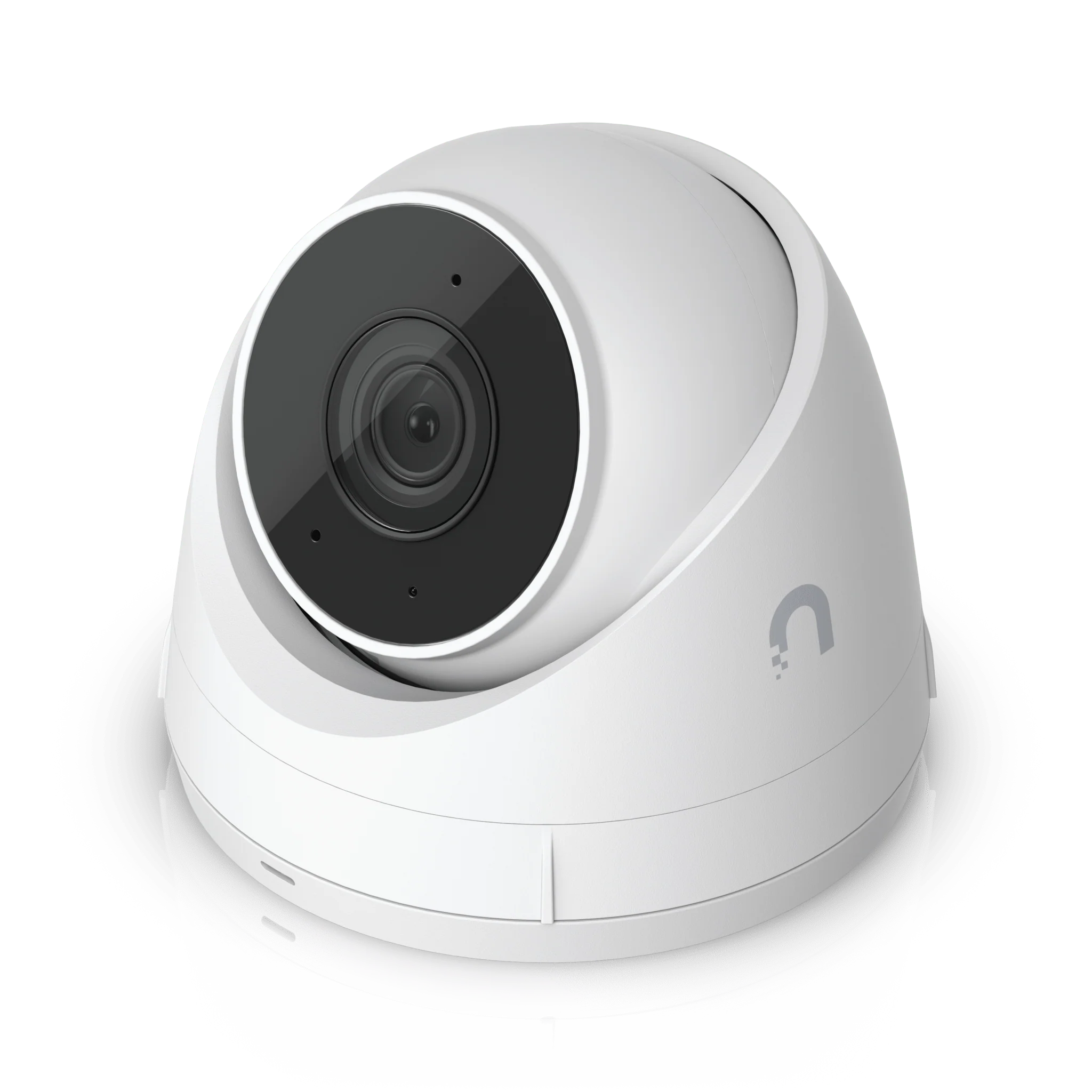

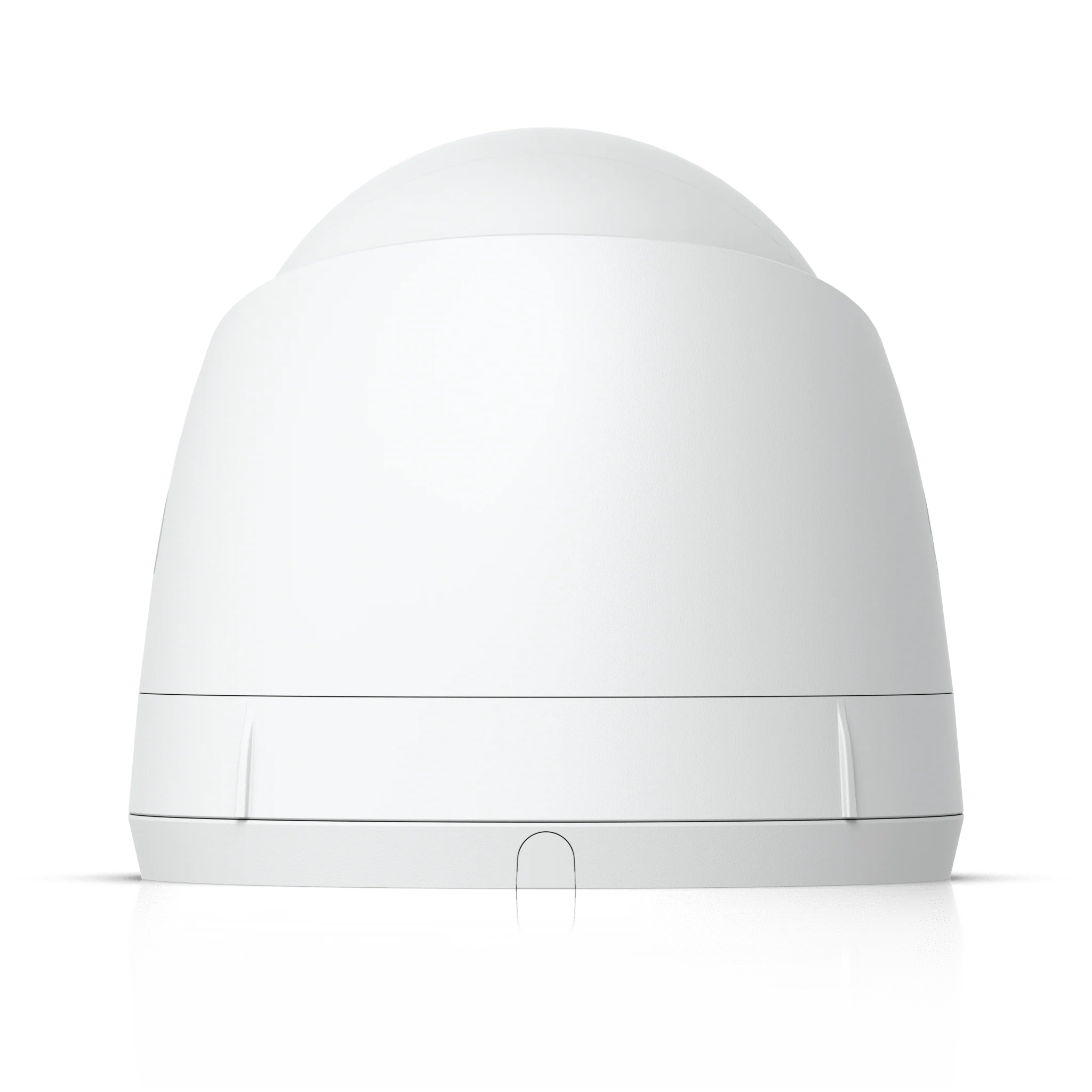

G5 Turret Ultra Cameras (x4)

• Resolution: 4MP 2688 × 1512 (2K) at 30 FPS

• Smart Detection: People, vehicles, and animals

• Night Vision: 30 m (98 ft) IR with built-in IR LED and cut filter

• Lens: 1/2.4" CMOS sensor, fixed focal length

• Weatherproofing: IP66 rating, IK04 tamper resistance

• Networking: 10/100 MbE RJ45, PoE powered, max 4W consumption

• Dimensions: Ø90 × 71.2 mm (3.5 × 2.8 inches), weight 330 g (11.6 oz)

• Enclosure: Aluminum alloy with UV-stabilized polycarbonate

HDD (Included)

• Capacity: 1TB, 3.5" SATA 6 Gb/s

• Rotation Speed: 5400 RPM, workload rating of 180 TB/year

• Reliability: 1,000,000 h MTBF

• Dimensions: 147 × 101.6 × 26.1 mm (5.75 × 4 × 1 inches), weight 0.45 kg (0.99 lb)

Summary / Conclusion

The Ubiquiti UNVR-Instant-Kit provides a turnkey video surveillance solution with everything you need in one package. Combining the compact UNVR-Instant NVR, four advanced G5 Turret Ultra cameras, and a 1TB HDD, it delivers enterprise-class reliability, intelligent detections, and seamless UniFi Protect integration. Whether for homes, SMBs, or enterprise deployments, this kit offers professional-grade performance at an accessible price.
