Ubiquiti USL-Gateway Super Long-Range SuperLink Gateway for UniFi Protect Sensors
Extend UniFi Protect Sensor Coverage Beyond Traditional Limits

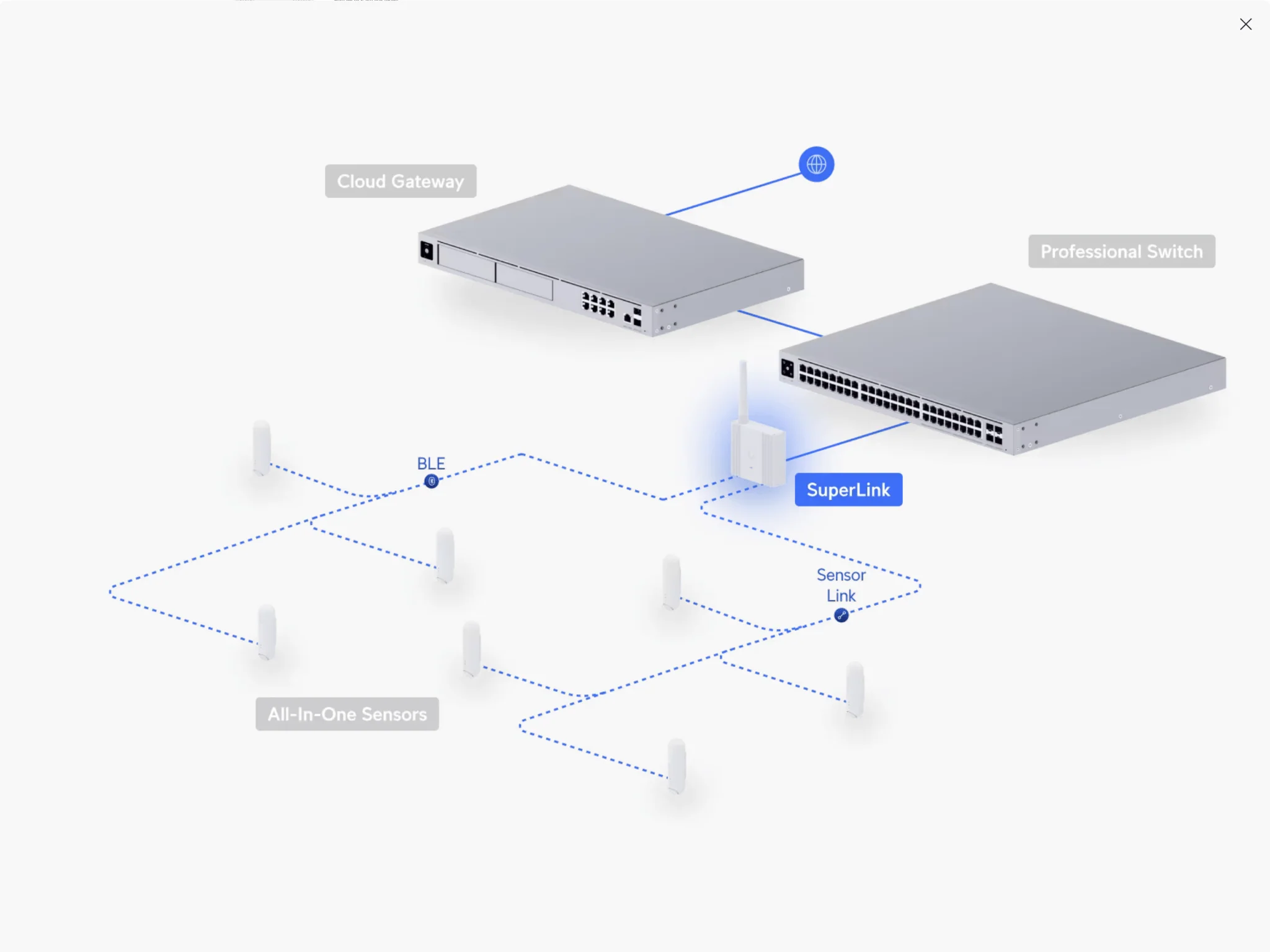

Designed to eliminate coverage gaps in distributed environments, this long-range wireless gateway connects UniFi Protect sensors over Bluetooth and proprietary sub-GHz technology, delivering ultra-long-range, low-latency communication with centralized UniFi OS management.
Highlights
Dual-Radio Long-Range Architecture
• Bluetooth 5.2 for short-range sensor connectivity
• Proprietary SuperLink sub-GHz radio supporting up to 2 km line-of-sight range
• Up to 96 SuperLink sensors and 7 legacy UP-Sense BLE devices per gateway
Optimized for Protect Deployments
• Purpose-built for UniFi Protect sensor ecosystems
• Managed directly through UniFi OS console
• End-to-end encryption with secure OTA updates
Flexible Installation and Power
• Powered via PoE or USB Type-C 5V 1A

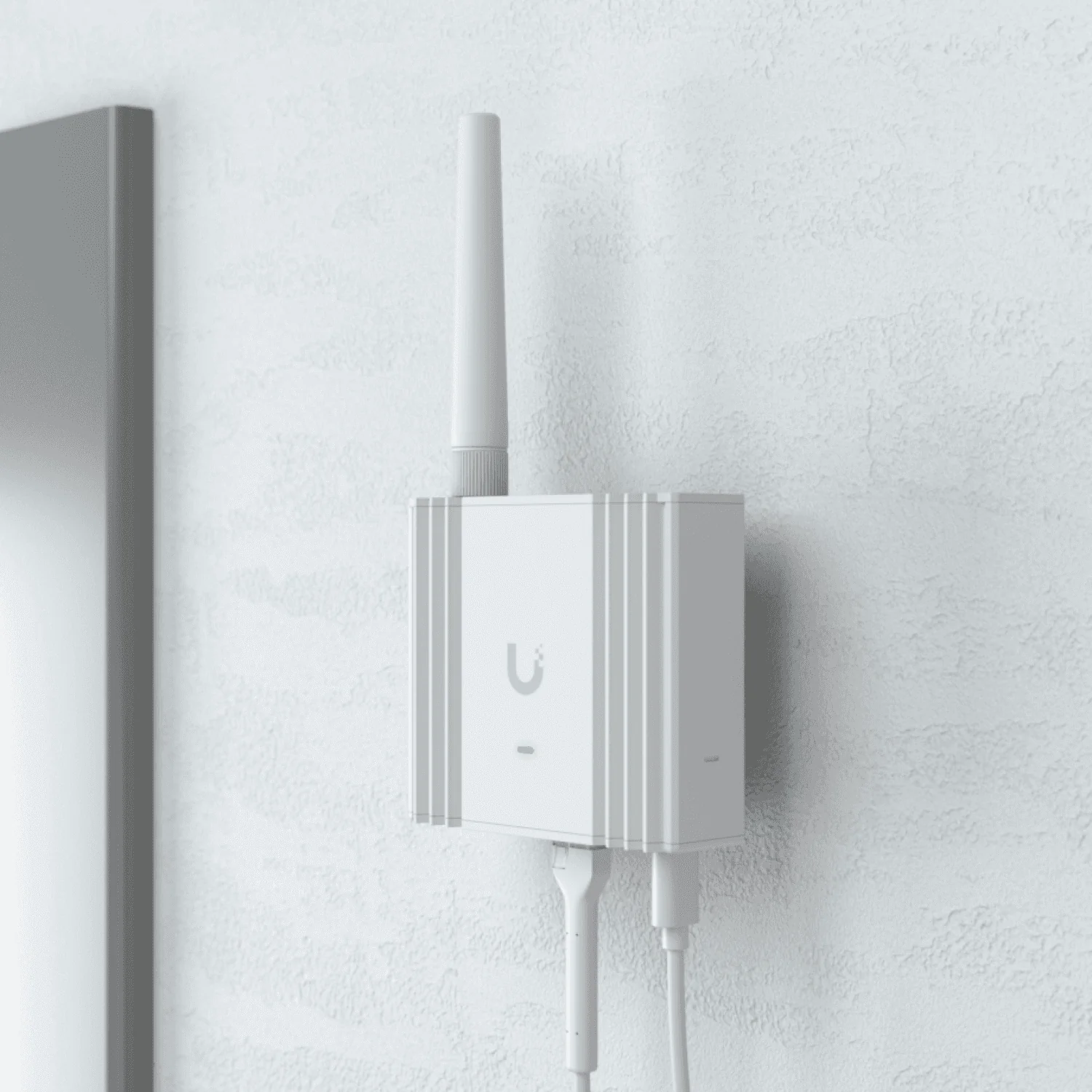

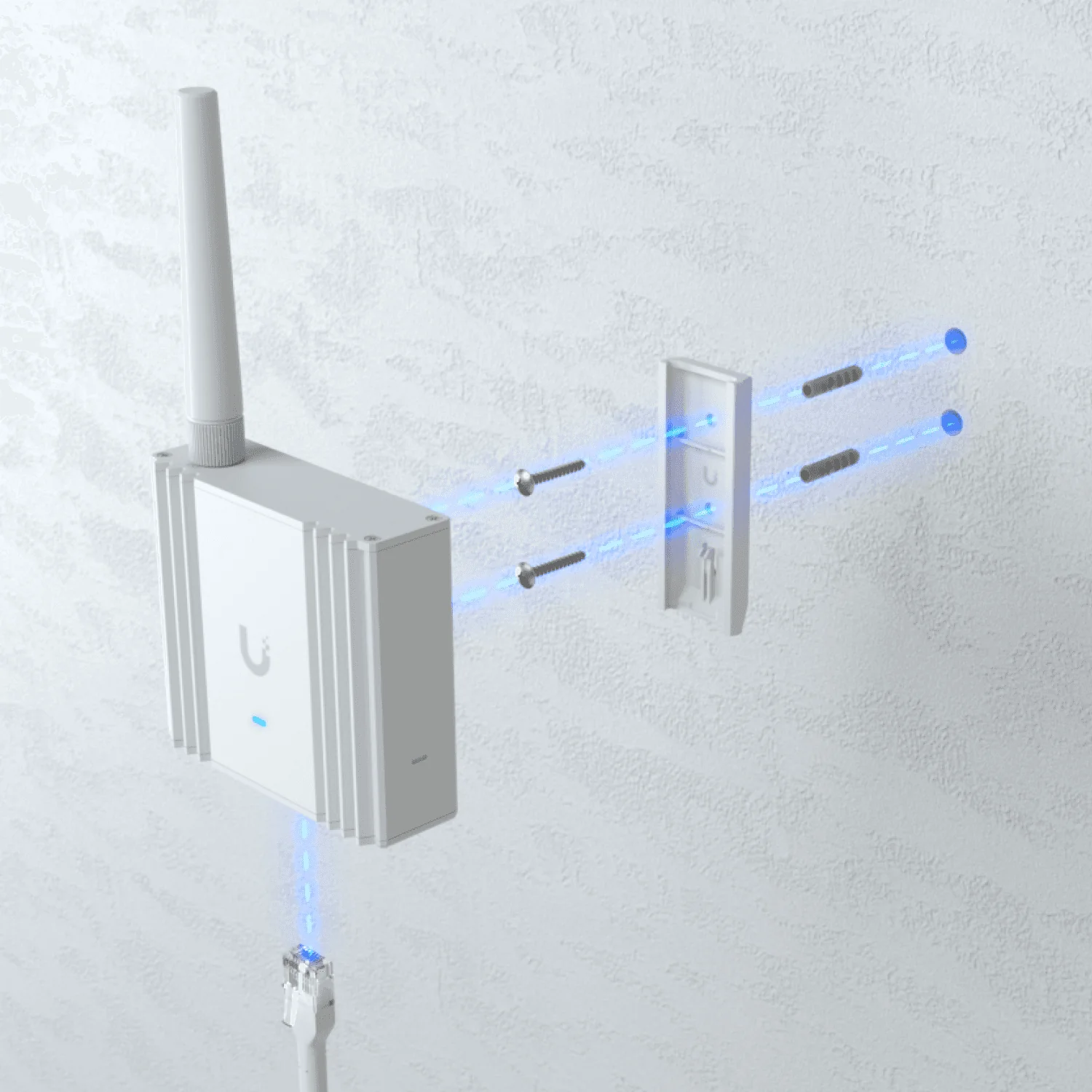

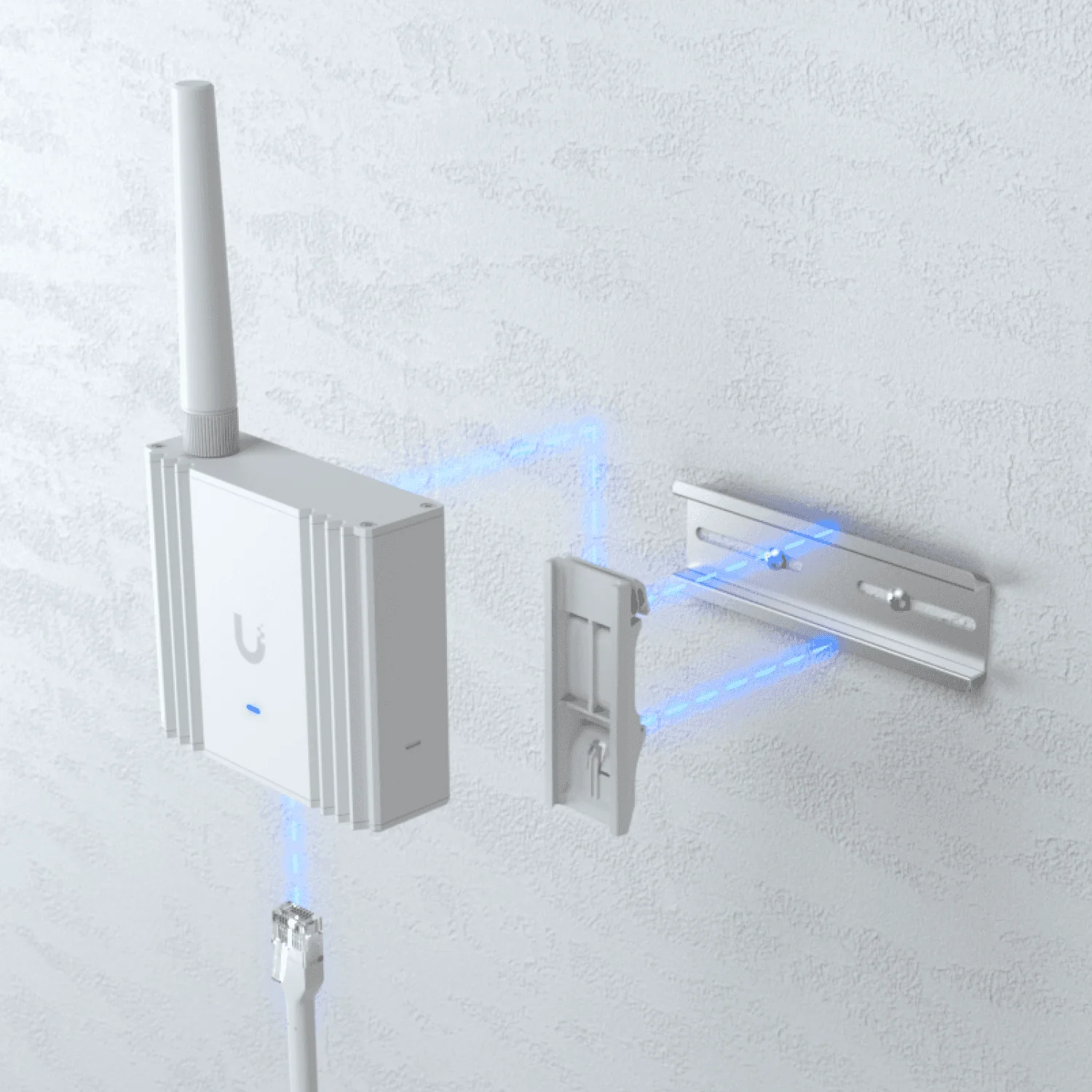

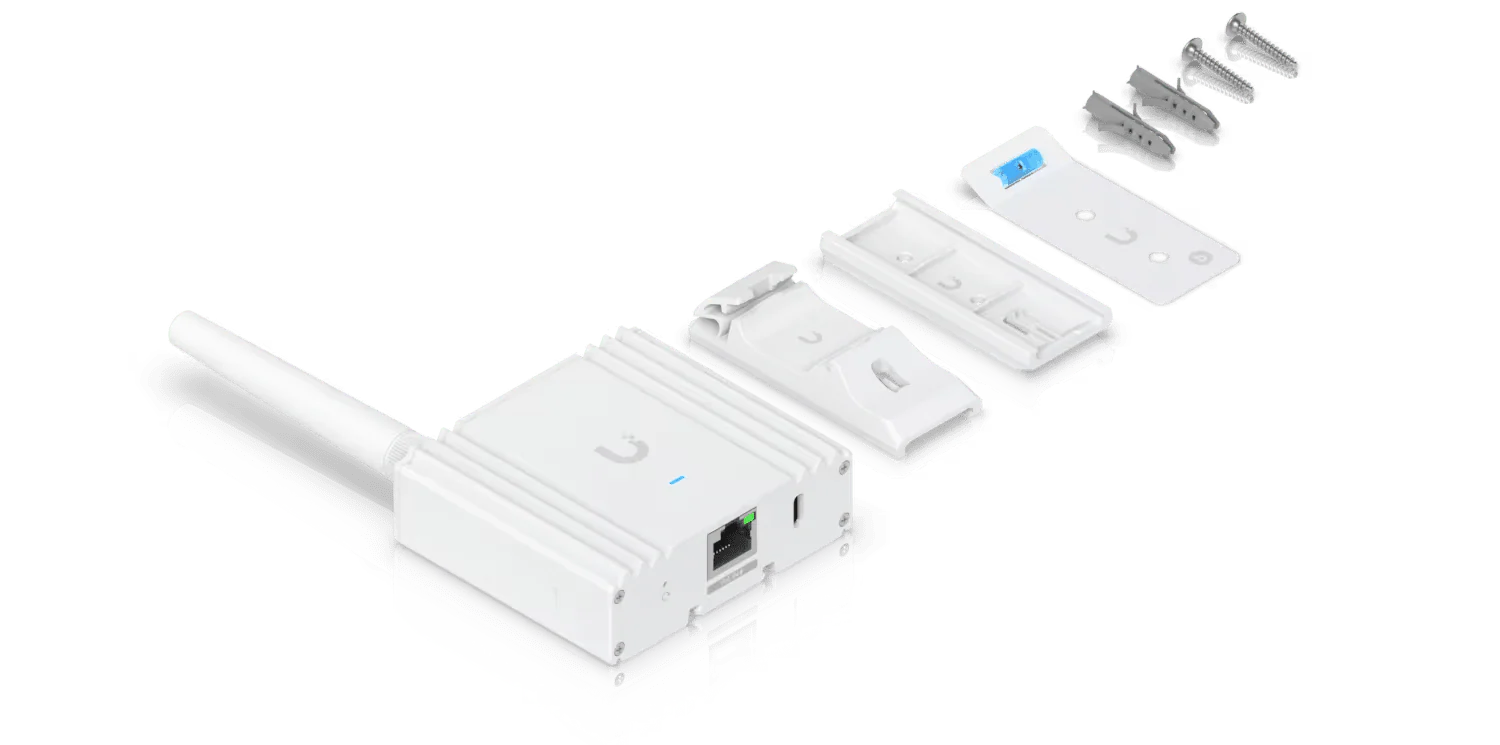

• Wall or DIN rail mounting options
• Compact enclosure suitable for structured or industrial environments
Key Features
Ubiquiti USL-Gateway Super Long-Range SuperLink Gateway
• Dedicated gateway for UniFi Protect sensor expansion
• Supports large-scale sensor deployments without additional licensing
• NDAA compliant
Extended Wireless Performance
• SuperLink operating frequencies
US 915.6–927.6 MHz
EU 865.1–869.5 MHz
• Maximum SuperLink transmit power 27 dBm
• Bluetooth transmit power 10 dBm
• Bluetooth range up to 100 m
• SuperLink range up to 2 km line-of-sight
High Sensor Capacity
• Supports up to 96 SuperLink devices
• Supports up to 7 Bluetooth UP-Sense devices
• No imposed limit on total SuperLink devices across consoles
Network and Management

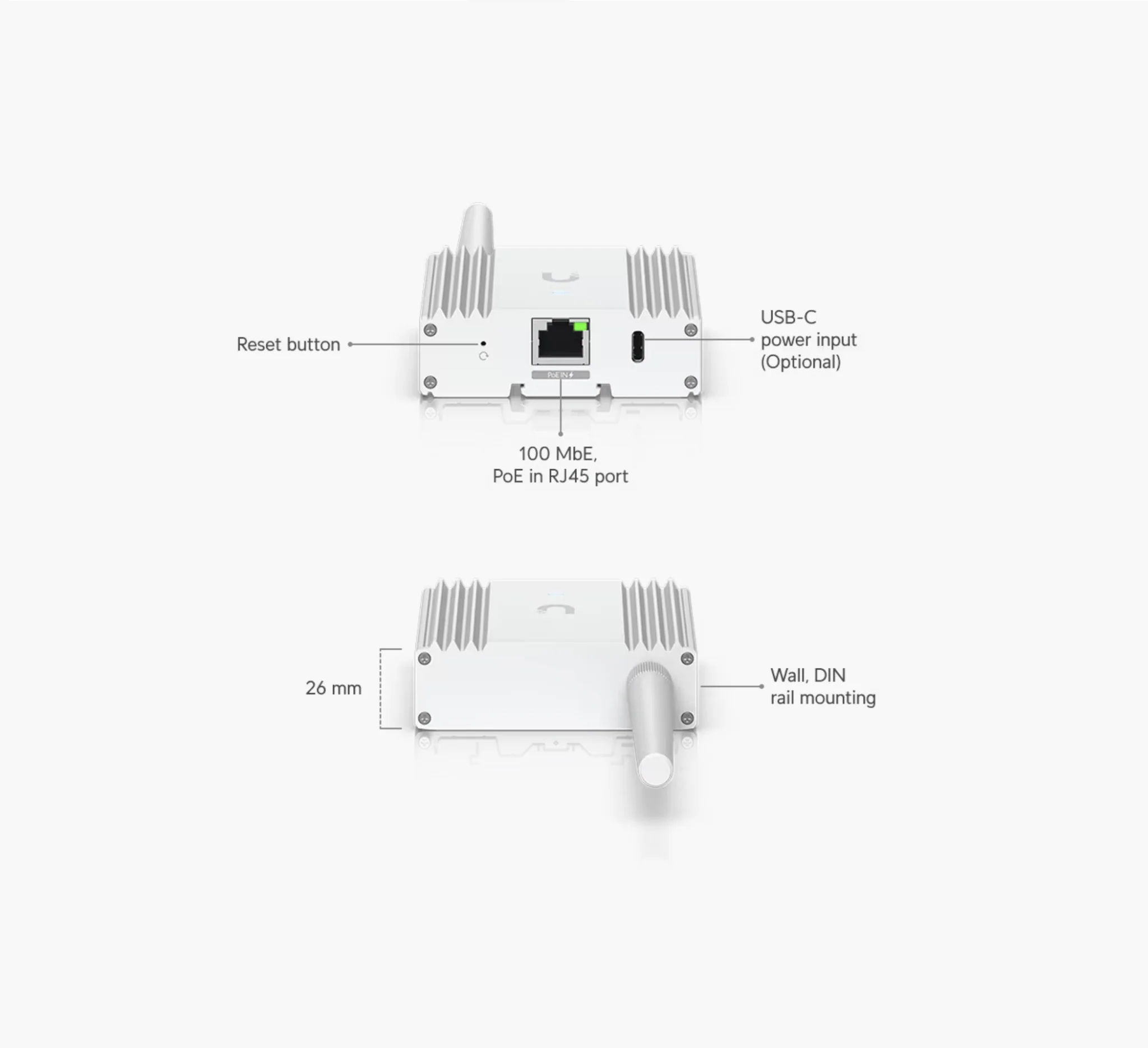

• 10/100 MbE RJ45 network interface
• Integrated into UniFi Protect application suite
• Factory reset button and status LED indicator
Hardware Specifications
• Maximum power consumption 3.4 W
• Dimensions with antenna 159.3 × 81.9 × 26 mm
• Weight 179 g
• Enclosure materials polycarbonate and aluminum alloy
• Operating temperature 0 °C to 40 °C
• Operating humidity 10 to 90 percent noncondensing
Summary / Conclusion
Ubiquiti USL-Gateway Super Long-Range SuperLink Gateway expands UniFi Protect sensor deployments with secure, ultra-long-range wireless connectivity. With support for up to 2 km communication, high device density, and seamless UniFi OS integration, it enables scalable monitoring across campuses, industrial facilities, and distributed environments without added licensing complexity.
