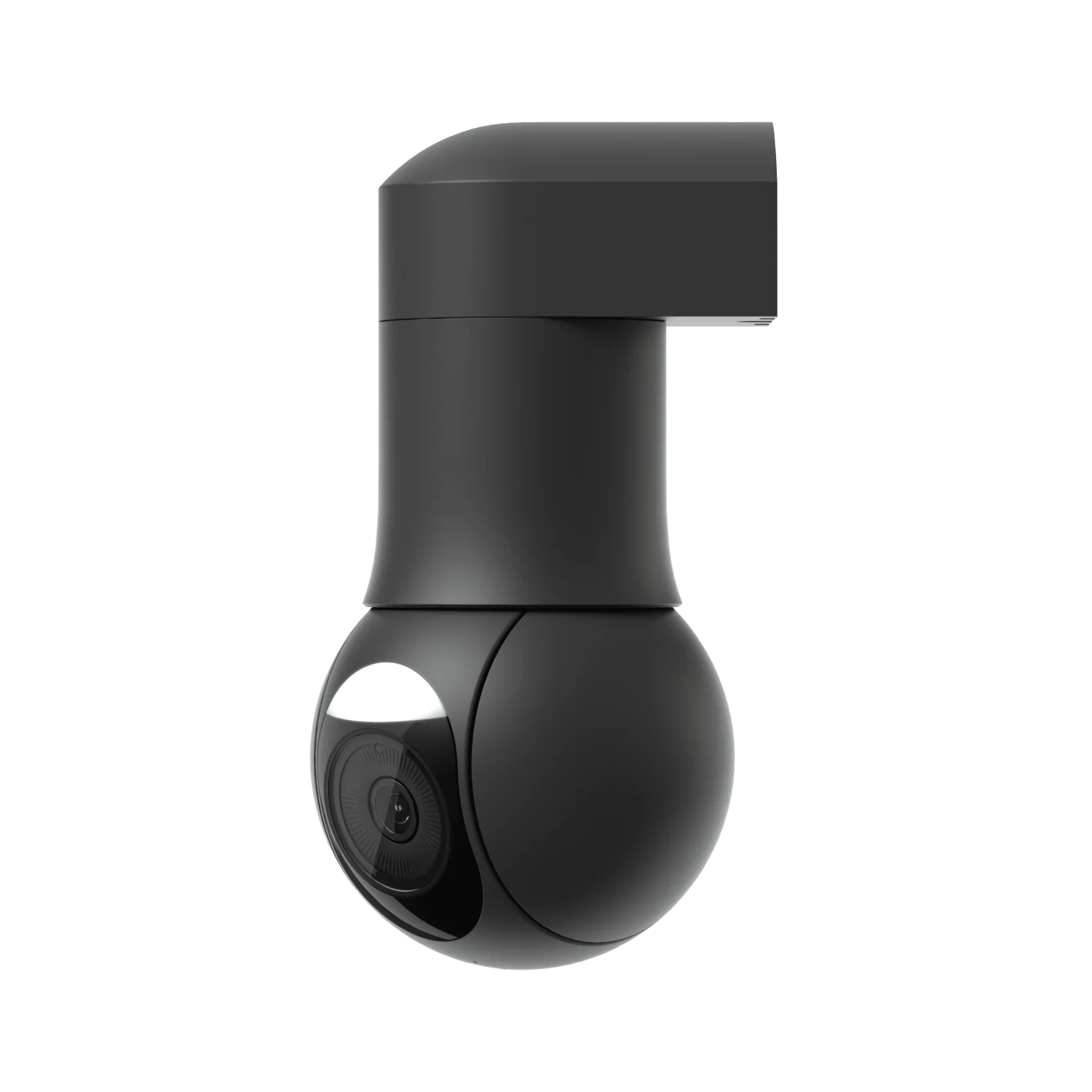

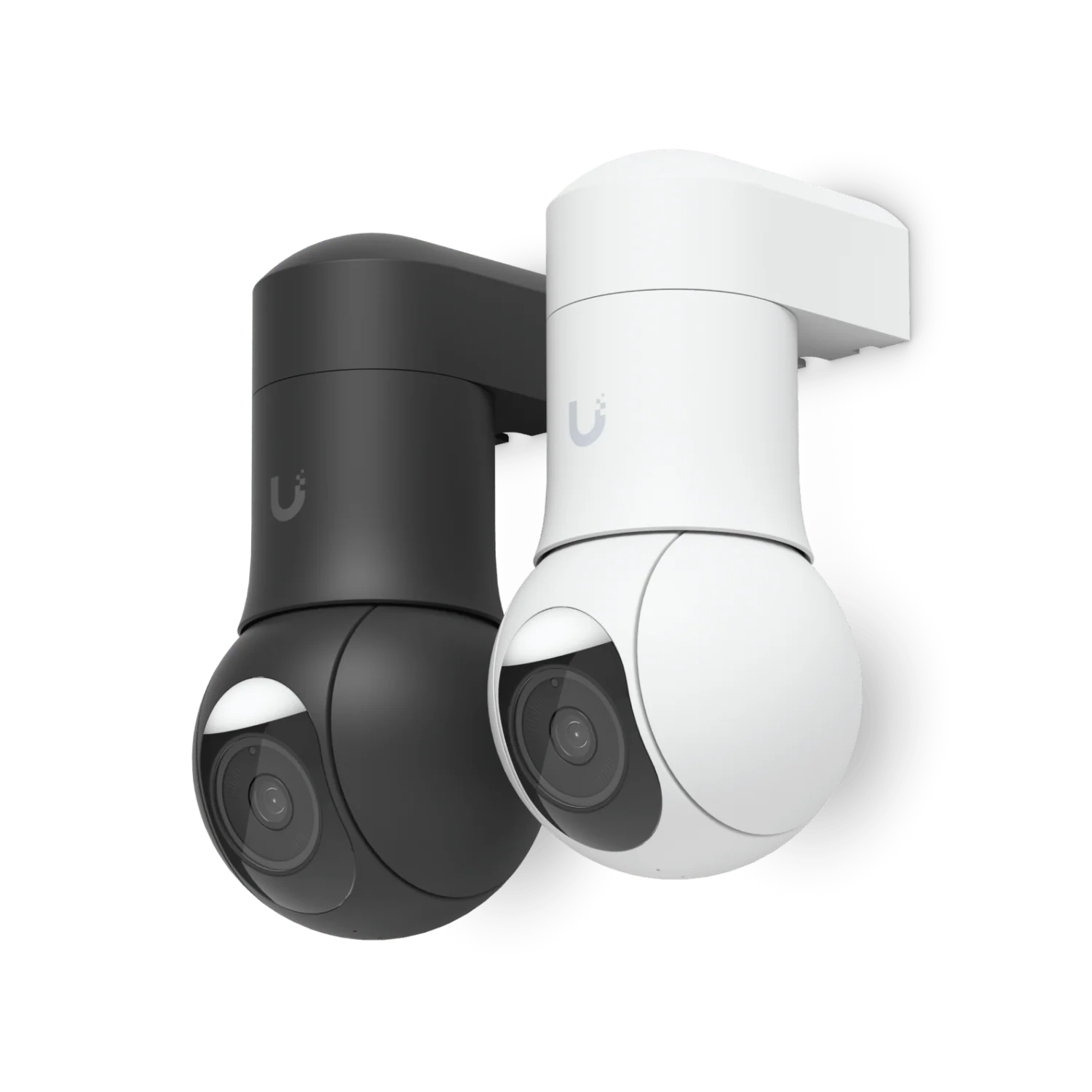

Ubiquiti UVC-G5-PTZ G5 4MP Compact PTZ IP Camera

Precise Monitoring with Ultra-Low Latency PTZ Control

The Ubiquiti UVC-G5-PTZ is a compact, NDAA-compliant 4MP PTZ IP camera designed for high-performance surveillance in all weather conditions. With ultra-low latency pan, tilt, and zoom control, advanced smart detections, and flexible mounting options, it delivers reliable coverage for commercial, industrial, or high-traffic environments.

Highlights

• Compact PTZ camera with 2K optical zoom and 4MP resolution

• Ultra-low latency pan-tilt-zoom with smart detection (people, vehicles, animals)

• All-weather IP66 rated and tamper-resistant IK04 housing

• IR night vision up to 20 meters with IR cut filter and white LED

• Includes wall and pole mount options for flexible installations

Key Features

Video & Optical Performance

• Sensor: 5MP 1/2.7" CMOS for enhanced clarity

• Resolution: 4MP (2688 x 1512) with 30 FPS smooth recording

• Field of View:

  • Wide: H: 99.7°, V: 51.9°, D: 121°

  • Tele: H: 45.5°, V: 25.4°, D: 52.4°

• Lens: F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 optical zoom for sharp focus at varying distances

• Night Vision: IR and white LED illumination with IR cut filter for low-light environments

Smart Surveillance Features

• Smart Detection: Automatically recognizes people, vehicles, and animals

• PTZ Control: Responsive pan-tilt-zoom operation with ultra-low latency

• Audio: Integrated microphone for real-time ambient sound recording

Durable Hardware & Mounting

• Weatherproof Rating: IP66 for outdoor durability

• Tamper Resistance: IK04-rated casing for added physical security

• Operating Temperature: -30 to 45ºC suitable for harsh climates

• Mounting Options:

  • Included: Wall and pole mount

  • Optional: Conduit adapter, surface, in-ceiling, pendant, corner mounts

• Materials:

  • Enclosure: Aluminum alloy and polycarbonate

  • Wall Mount: Polycarbonate

  • Pole Mount: Aluminum alloy

Power & Networking

• Networking: 10/100 MbE RJ45 port

• Power Method: PoE+ (37—57V DC) for simplified deployment

• Max Power Consumption: 14W

• Pole Mount Diameter: 1.5–2" (38–50 mm)

• Reset Button: One-touch factory-reset option

Compliance & Certifications

• Certifications: CE, FCC, IC

• NDAA Compliant: Approved for government and enterprise installations

Summary

The UVC-G5-PTZ from Ubiquiti is engineered for professionals seeking reliable 4MP surveillance with high zoom capability and ultra-responsive PTZ movement. Designed for demanding outdoor environments, it offers intelligent detection, multiple mounting options, and seamless integration with UniFi Protect systems, making it ideal for real-time monitoring and precision control across commercial and public sectors.
