Ubiquiti UA-G3-SK-Gate G3 Gate Starter Kit with Touch Pass and Intercom

Secure, Scalable Access Control for Your Smart Gate

The UA-G3-SK-Gate G3 Starter Kit delivers next-gen access control in one streamlined solution. With a powerful Gate Hub, G3 Intercom, PoE++ adapter, and retrofit extenders, it enables secure access at one gate and one side door. Touch Pass, facial recognition, and intercom unlock elevate user experience to pro level — all managed through the UniFi ecosystem.

Highlights

• Complete gate starter kit with hub, intercom, and PoE++ hardware

• Supports one gate and one side door with seamless integration

• Features facial recognition, intercom unlock, PIN, card, mobile, and Touch Pass access

• Includes 10 free 1-year Touch Passes

• Built-in web interface, mobile unlock, and UniFi Protect integration

Key Features

Access Experience

• Supported Methods: Touch Pass, Face Unlock, Mobile App, Keyfob, PIN, Access Card

• Visitor Access: One-click intercom unlock with doorbell support

• Integration: Full support with UniFi Protect, Intercom Viewer, and Talk Phone integration

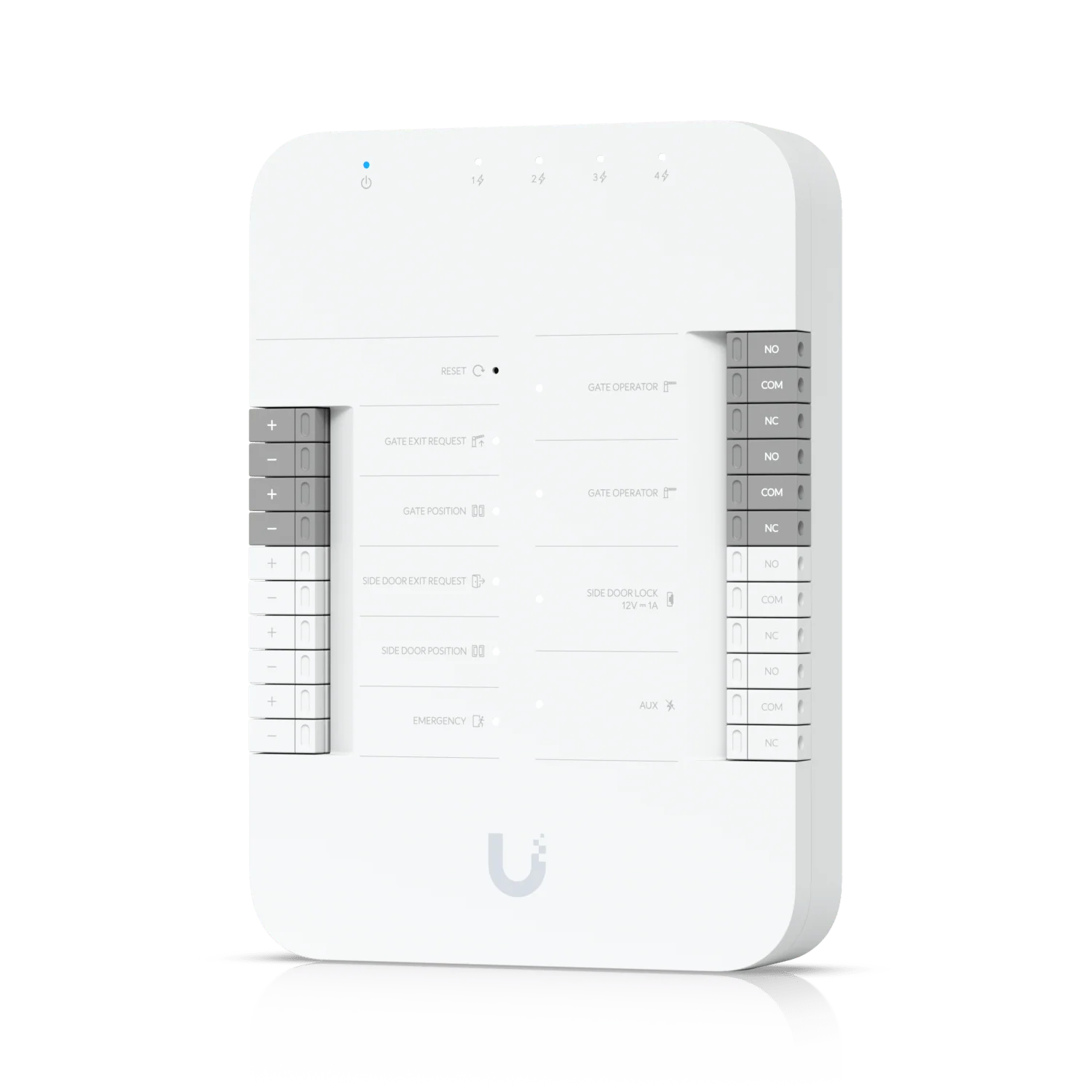

Gate Hub Specs

• Power Method: PoE++ (50V DC, 1A)

• PoE Outputs: 4 x 50V DC, Max. 28W each

• Max Power Consumption: 22W (without PoE), 50W (with PoE)

• Inputs: Gate/door exit requests, position sensors, emergency input

• Relays:
   • 2 x Dry Contact (30V DC, 1A)
   • 1 x Aux Relay (30V DC, 1A)
   • 1 x Powered Output (12V DC, 1A for side door lock)

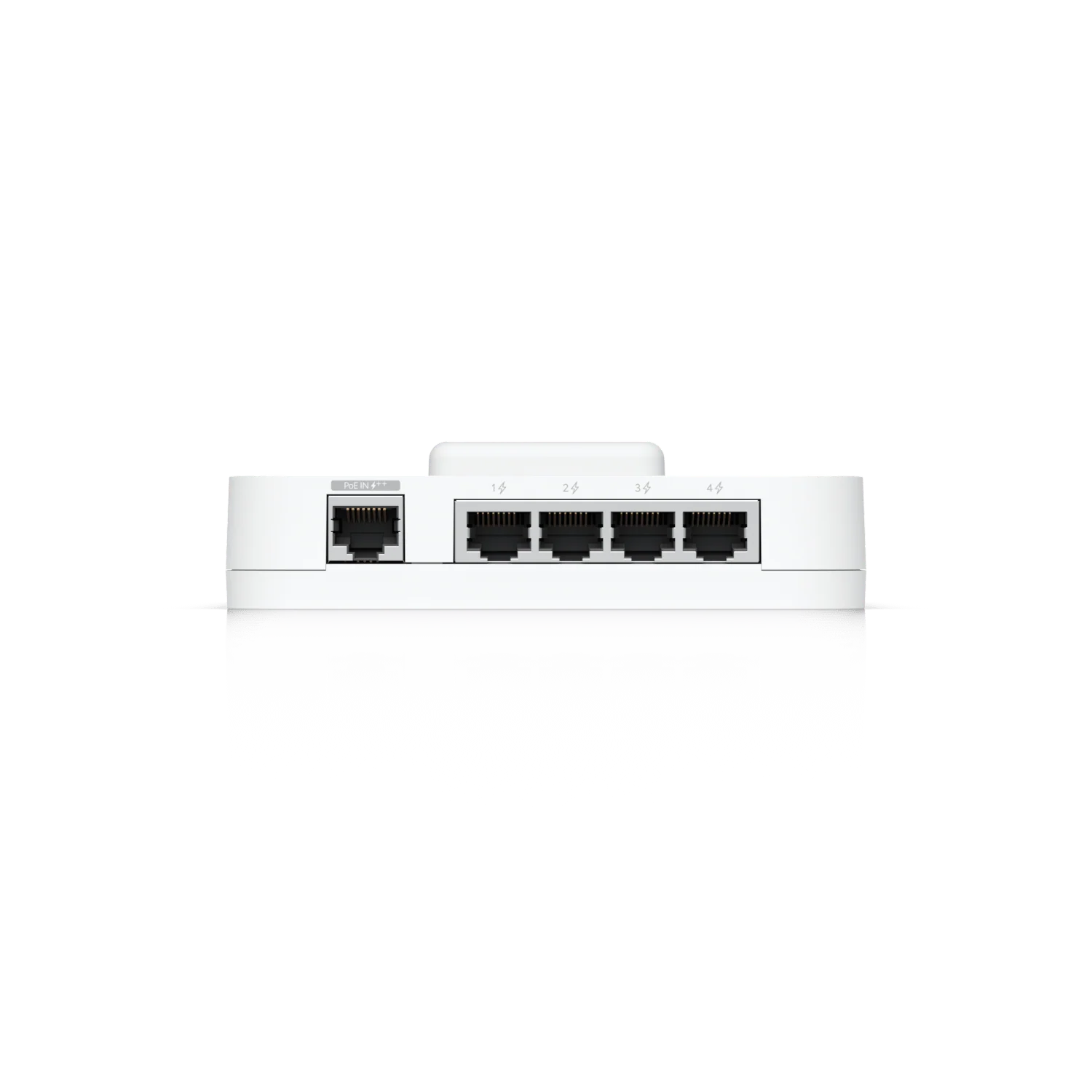

• Networking: 5 x 10/100/1000 Base-T

• Dimensions: 175 x 126 x 26 mm

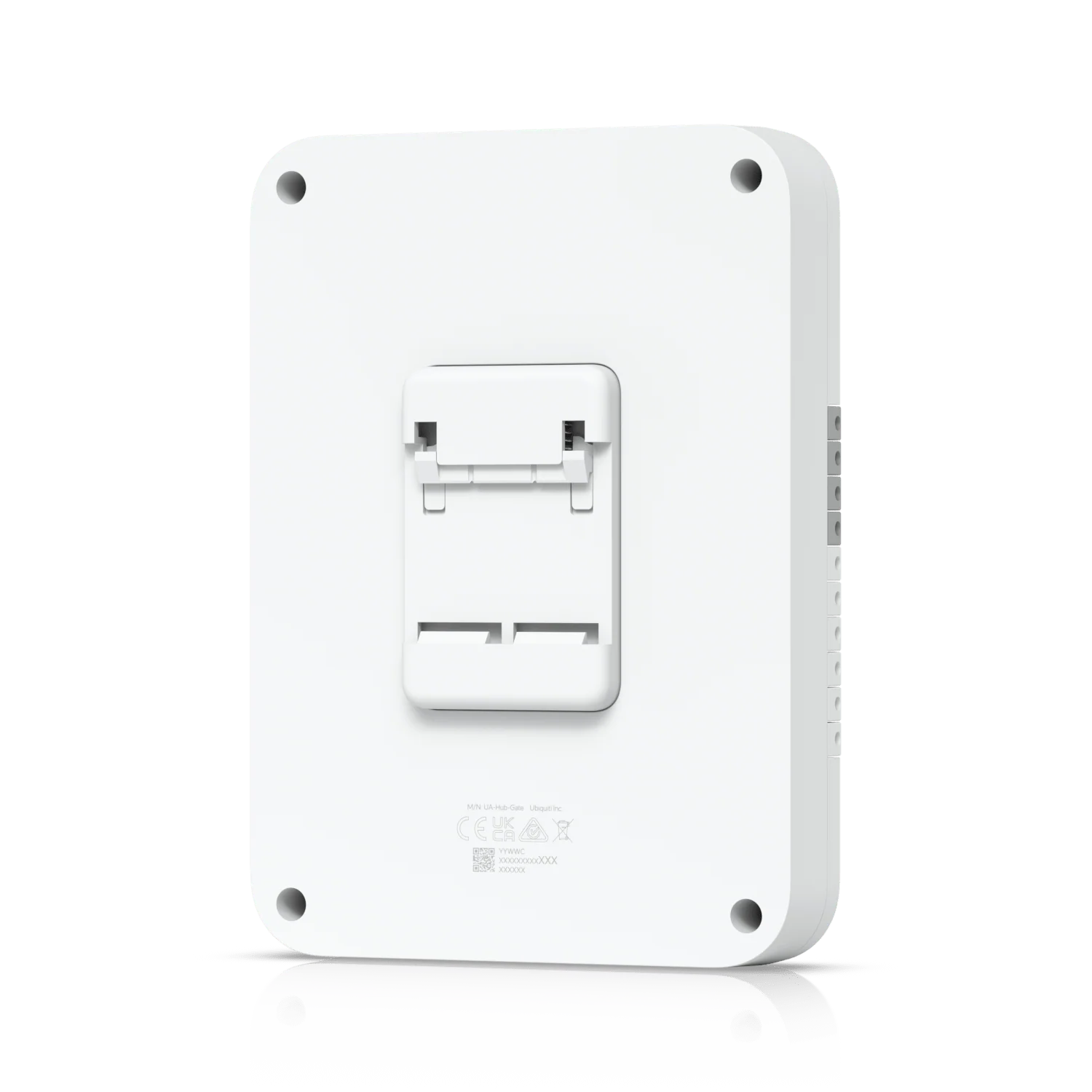

• Mounting: DIN rail (included)

• Weight: 460 g

• Environment: Indoor only (outdoor requires junction box)

• Operating Temp: -30 to 60°C

• Certifications: UL 294 Level I, CE, FCC, IC, NDAA Compliant

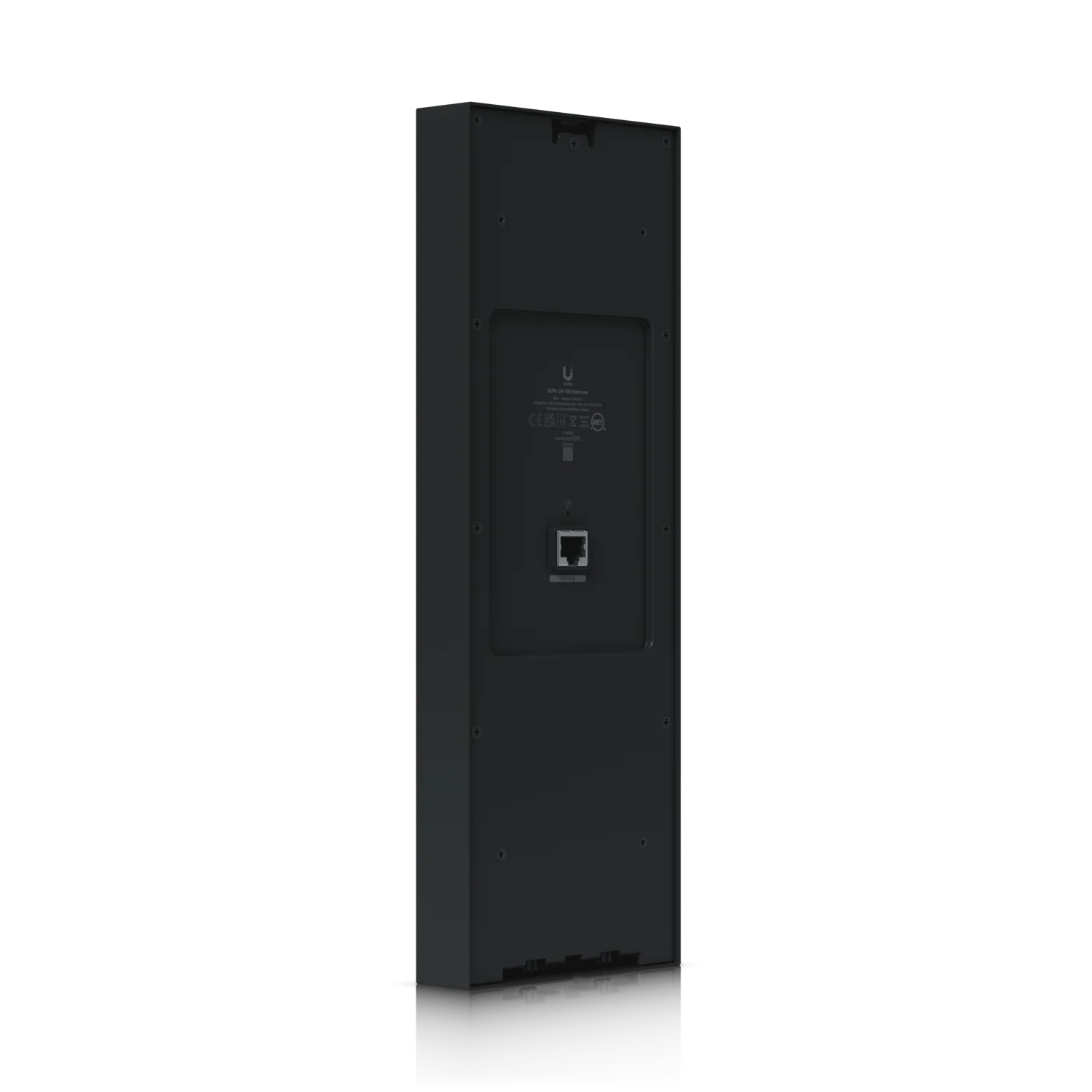

G3 Intercom Specs

• Camera: Integrated with full UniFi Protect support

• Display: 7" touchscreen, 1024 x 600 px, 1000 nits

• Audio: Microphone and 2W speaker

• NFC Access: Full compatibility including Apple/Google Wallet, MIFARE, FeliCa, ISO standards

• Connectivity: BLE 4.2, NFC, PoE (48V DC)

• Power Consumption: Max 13W

• Dimensions: 324.8 x 113.7 x 28.3 mm

• Mounting: Wall, gooseneck pedestal, optional flush/sunshield kits

• Environment: IP65 weatherproof, -30 to 60°C operation

• Weight: Device – 965 g, Bracket – 445 g

• Enclosure: Aluminum alloy + UV-stabilized polycarbonate

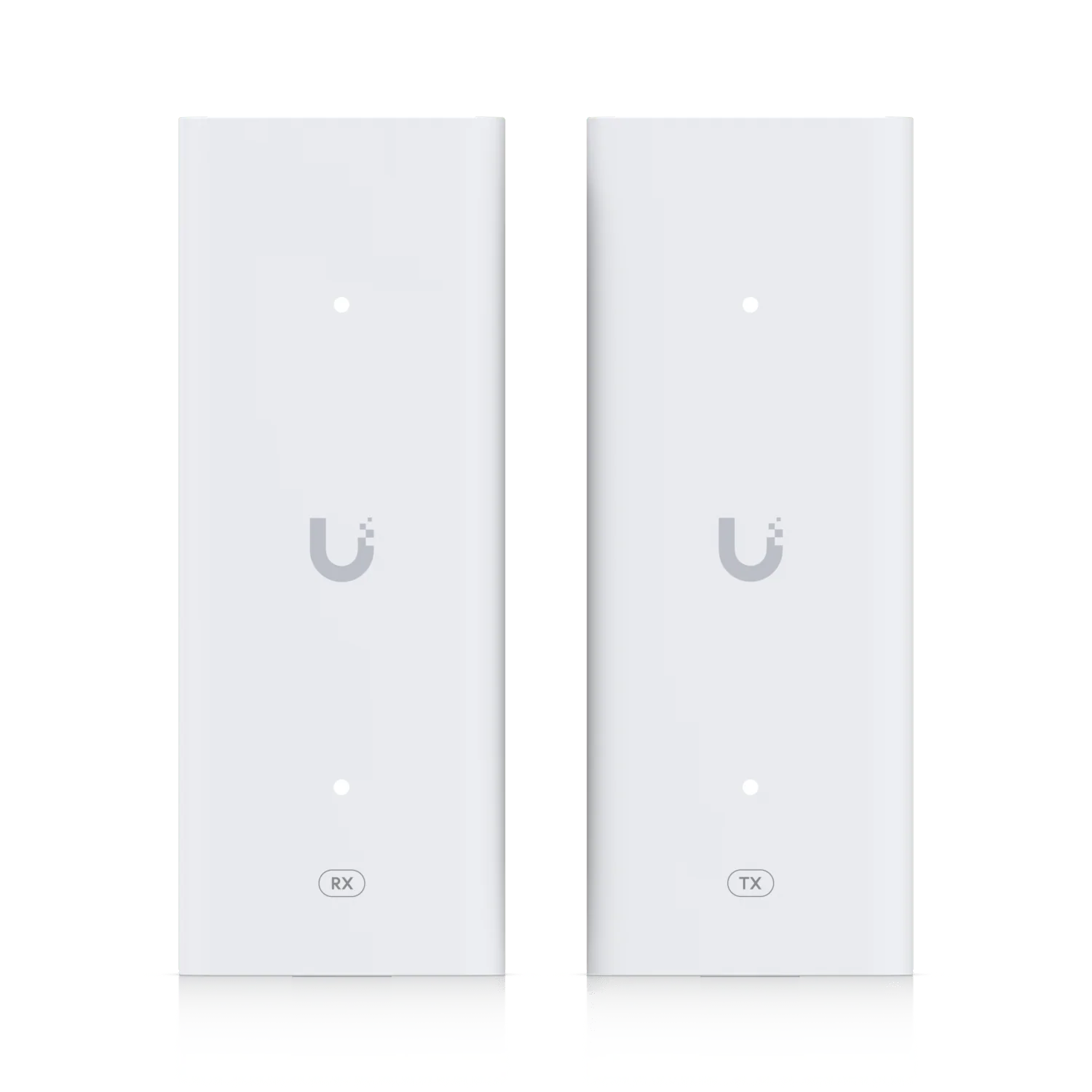

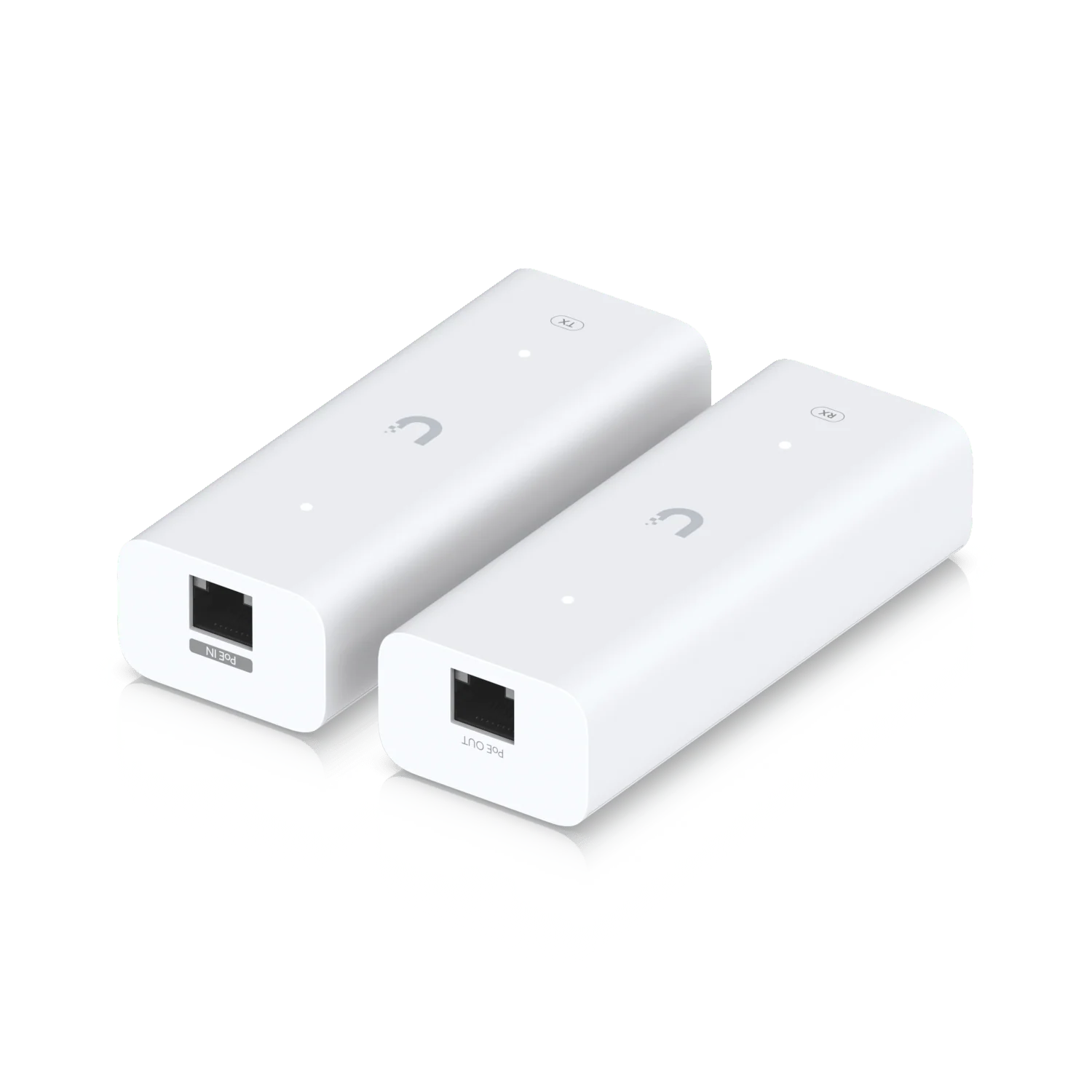

Retrofit & PoE++ Hardware

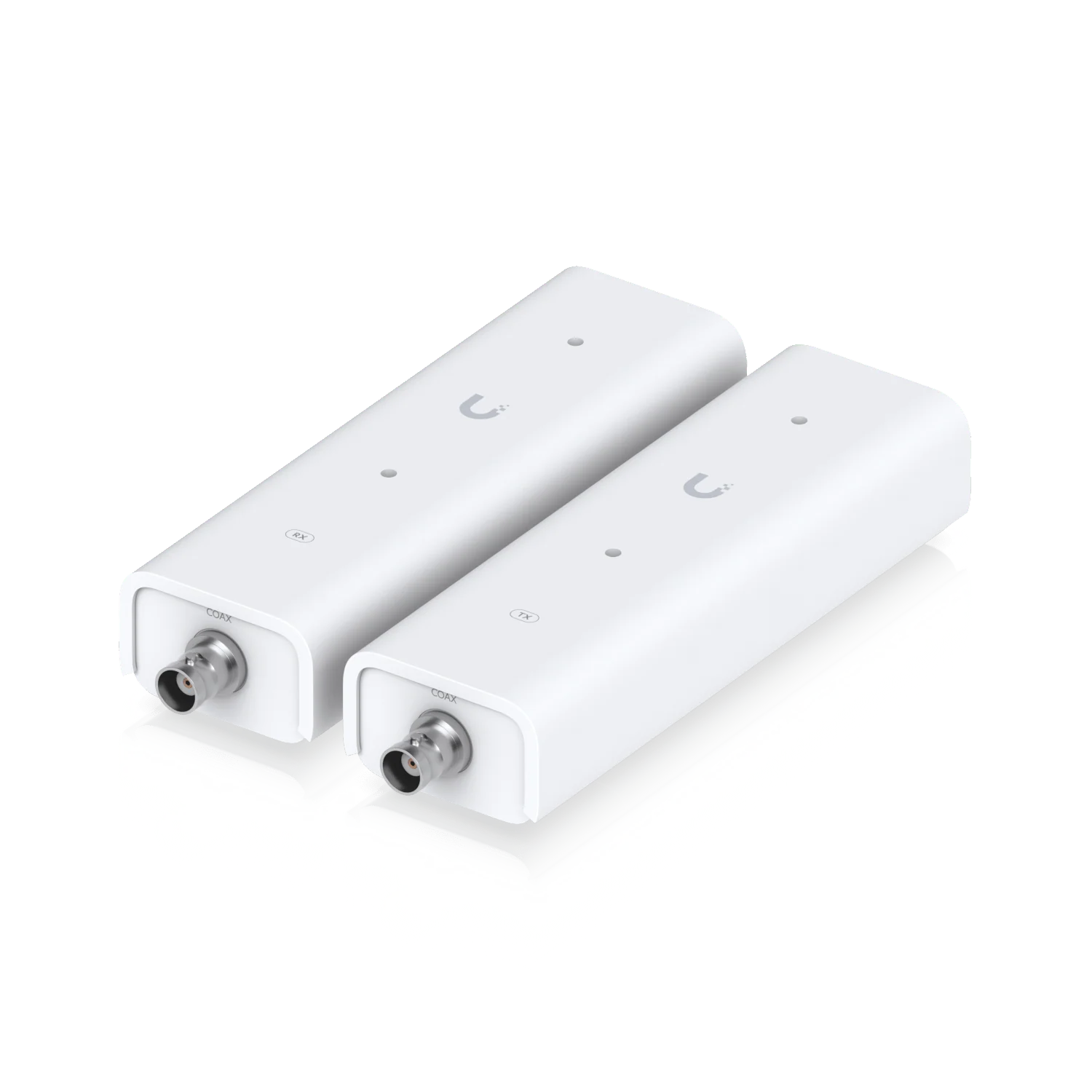

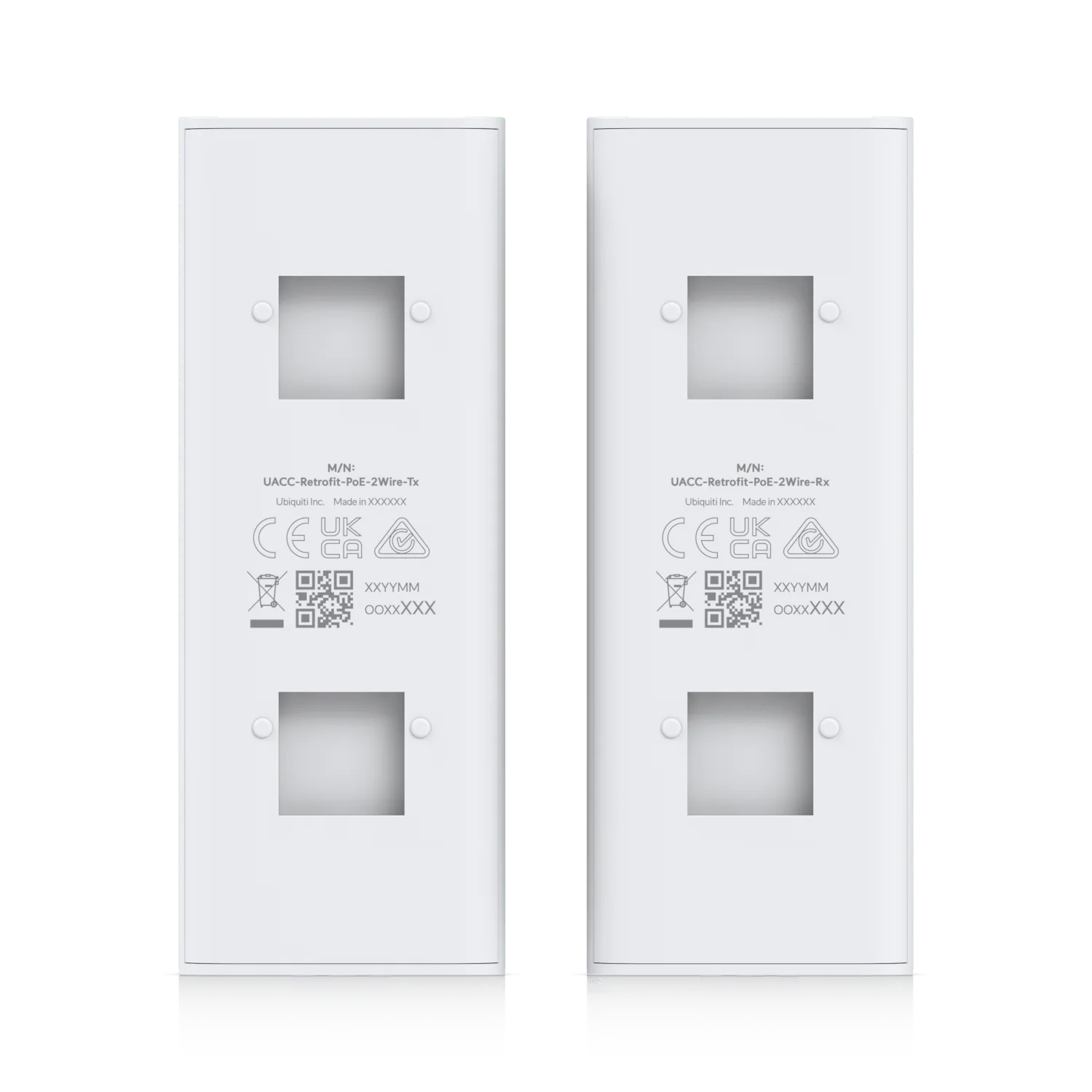

• 2-Wire Extenders: In/Out – 10/100 MbE, Homeplug AV, BNC, PoE++ in, PoE+ out

• Adapter Power: 48V DC @ 1.25A

• Dimensions: PoE In/Out – 40 x 105 x 25 mm; Adapter – 43.5 x 138 x 30 mm

• Weight: PoE In – 77 g; PoE Out – 79 g; Adapter – 140 g

• Operating Temp: -10 to 40°C

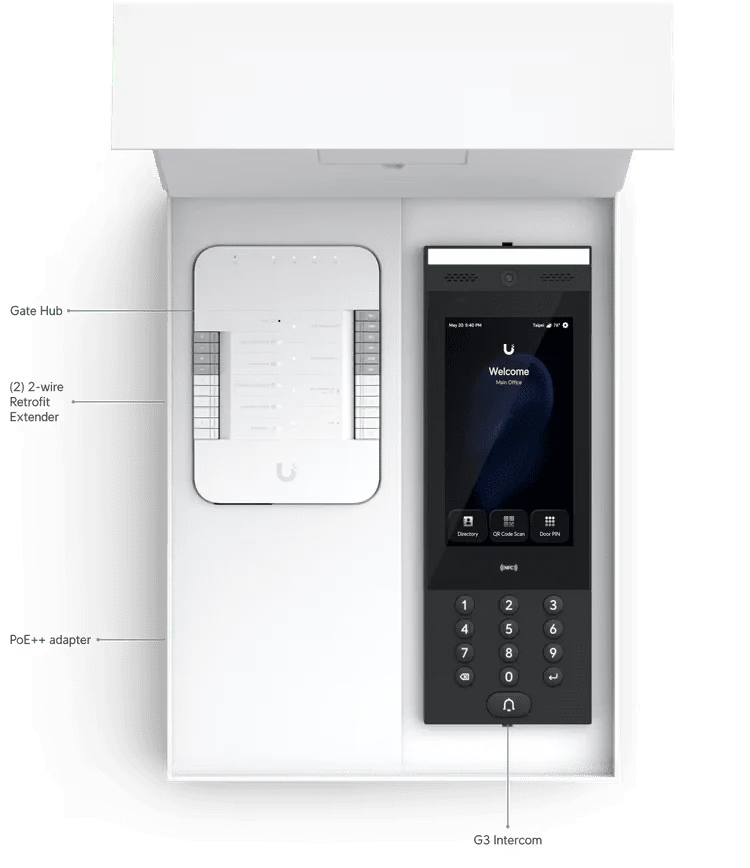

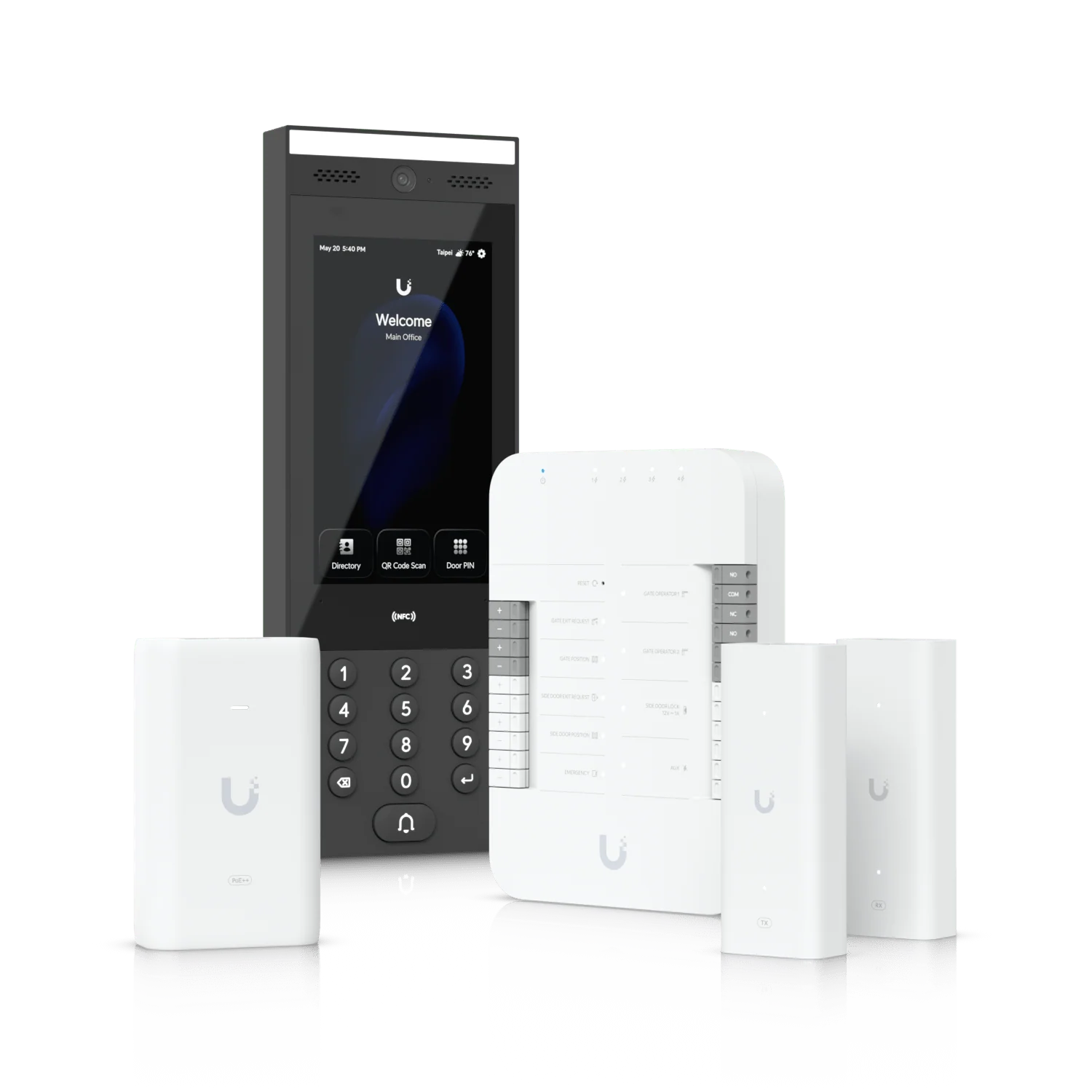

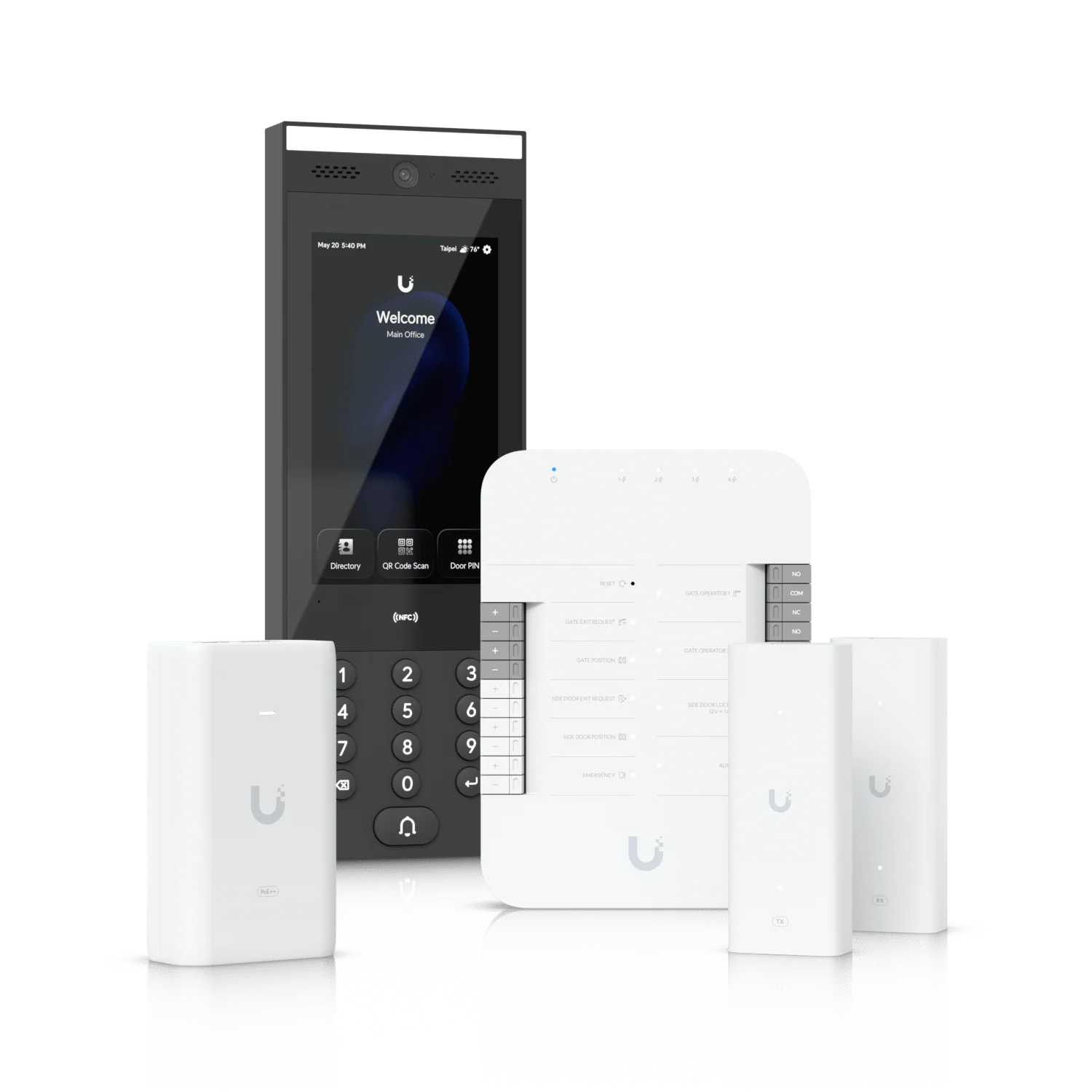

In the Box

• 1 x Gate Hub

• 1 x G3 Intercom

• 1 x PoE++ Adapter

• 2 x 2-Wire Retrofit Extenders

• 10 x 1-Year Touch Passes

Summary

The Ubiquiti UA-G3-SK-Gate G3 Starter Kit combines professional-grade hardware and smart access features into a single system for one gate and side door. With facial recognition, mobile unlock, intercom, and web control — all seamlessly managed in UniFi — this kit empowers modern entry points with unmatched convenience and security.
